Polyurethane Foam Machine for Cutting Sheet Material

polyurethane foam machine for cutting Sheet material

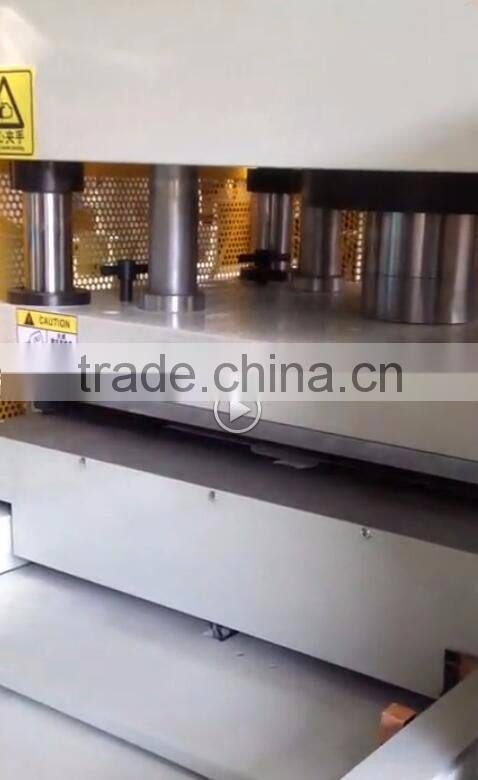

 VIDEO AS BELOW

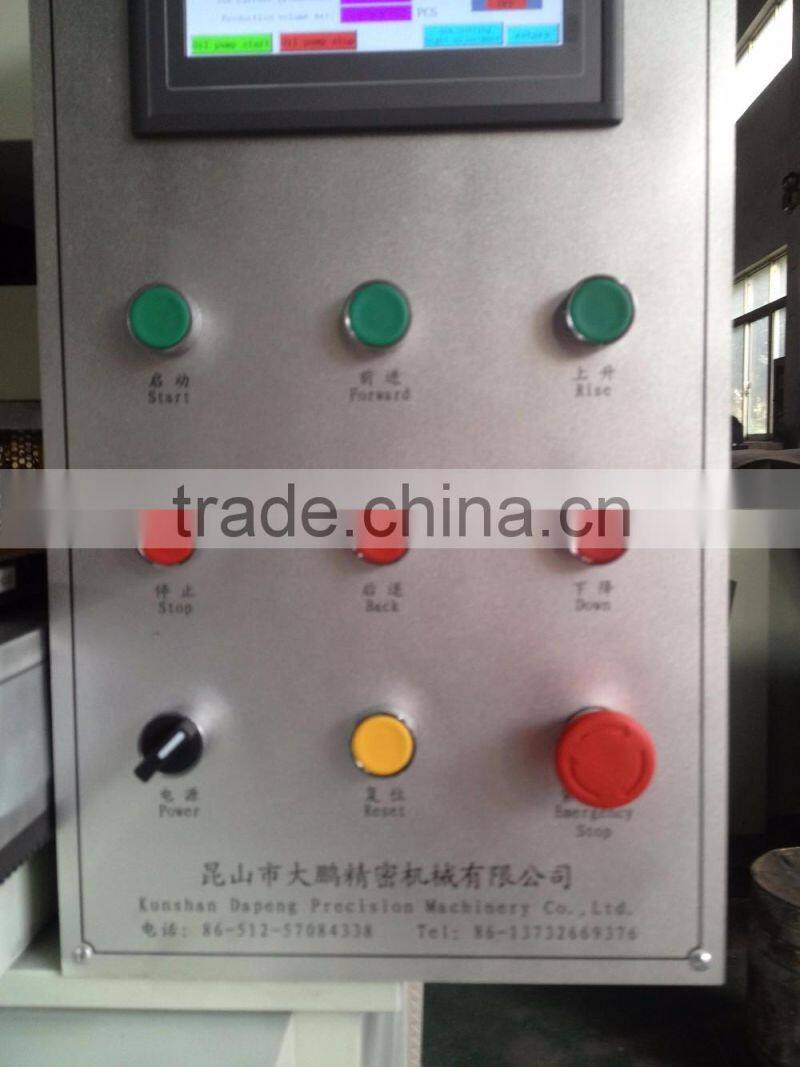

  Control Panel :

FUNCTION :

1. electronic fix,automatic voltage regulation,Precision staying in control 0.01-0.03mm

 , head board Accuracy back and forth can be controled at 0.02-0.05mm

2. shockproof board installed at the under-chassis , the machine body is steady and reliable

3.under the belt , moldboard detrusion equipment , convenient operation

4. PLC+The man-machine automatic programming control , oil line system put to use  integrated control , light electricity protecting

APPLICATION :

i,

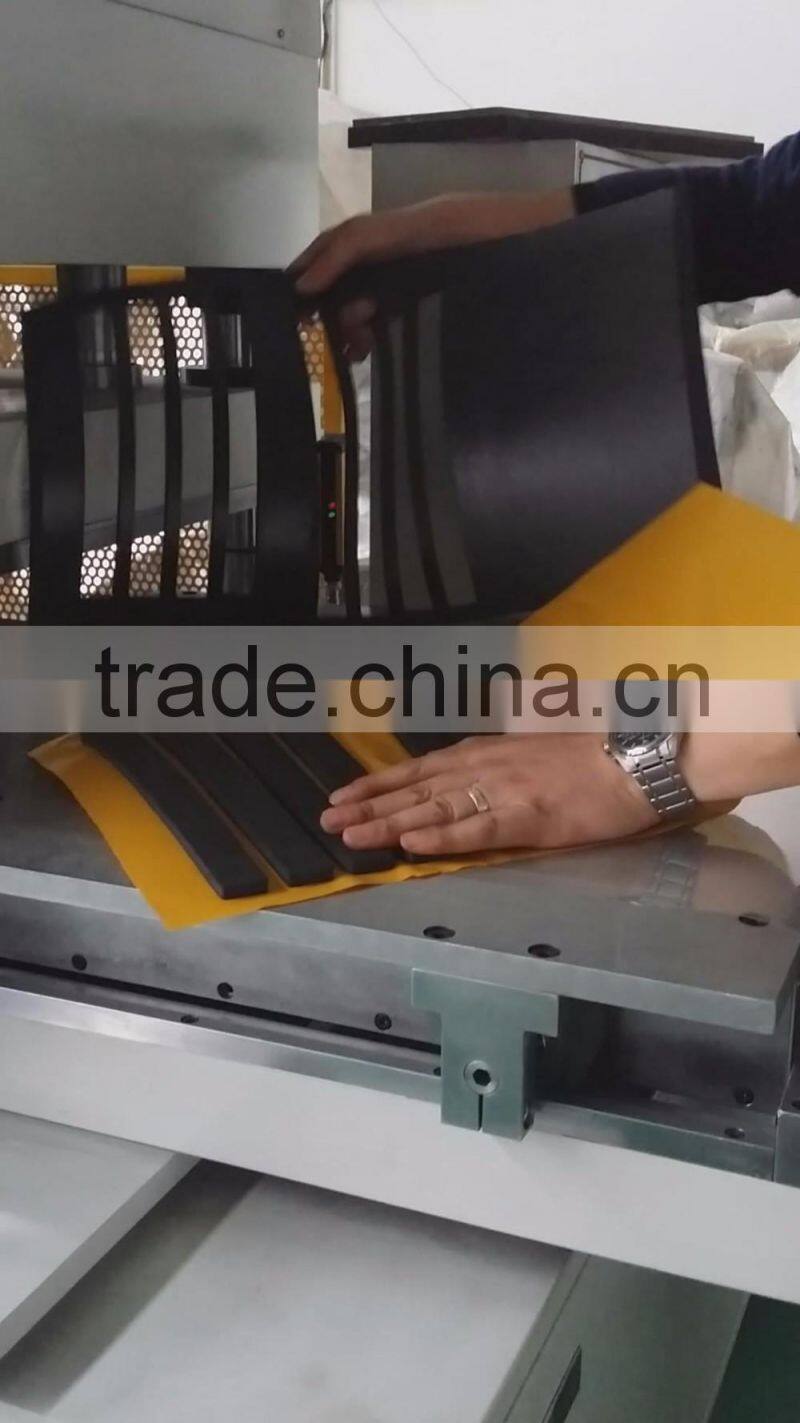

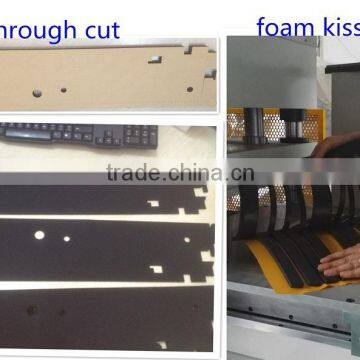

It is applicable for cutting of t aluminium foil , PET, protecting film , Mylar sheet etc. through cutting and kiss cutting both available,

ii,

precision components punching forming

Main Technial Parameters :

Pressure Capability : 40T , 100T

Underneath Planform Size : 600X650 mm , 600X800mm , 600X1000mm

Steamgaugeplate Size :  600X650 mm , 600X800mm , 600X1000mm

Table-board Height : 110mm

HP: 7.5

Maximal Space Length: 100mm
