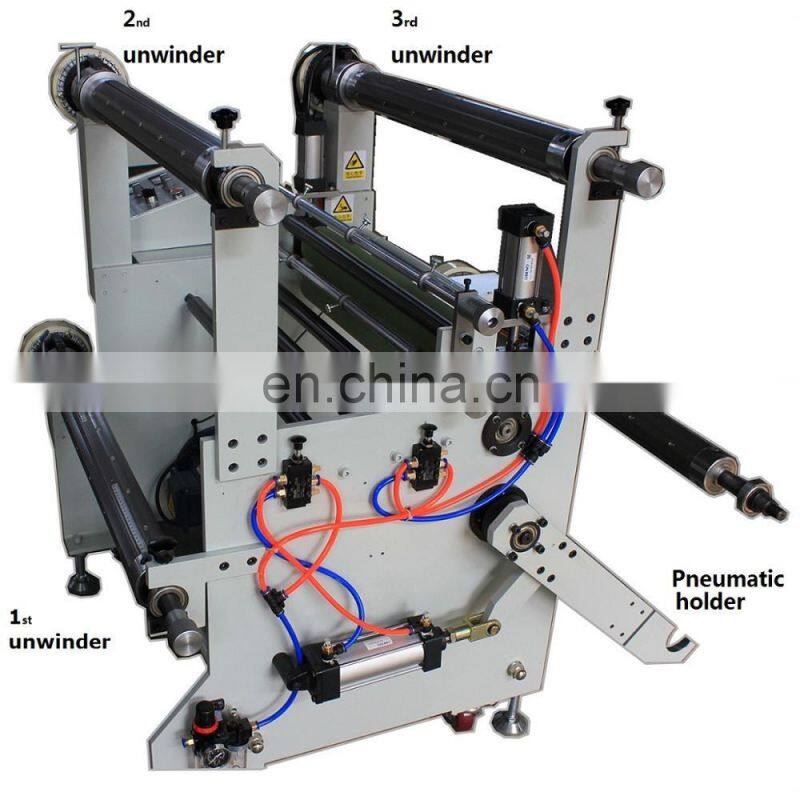

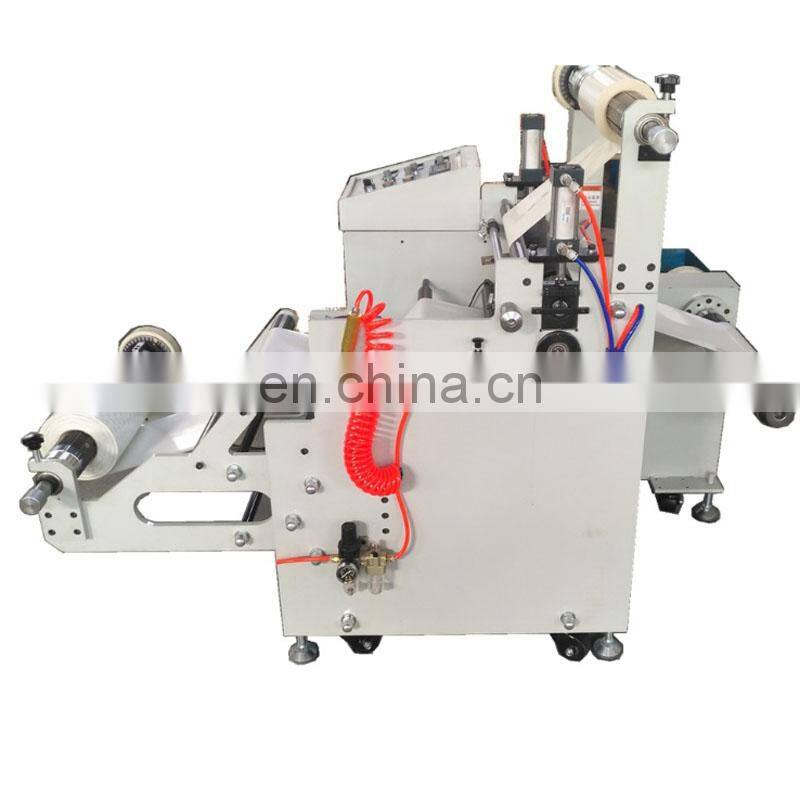

Plastic film PET PE EVA PVC double side adhesive laminating machine
Functional Characteristics:
1.Magnetic powder control the unwind and rewind tension.
2.Frequency conversion is used for speed regulation of the main motor.
3.The cylinder control the rubber roller up and down.
4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.
5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements.
Specification:
| Model | DP-420 | DP-650 |
| Max feeding width | 420mm | 650mm |
| Unwinding diameter | 400mm | 400mm |
| Rewinding diameter | 450mm | 450mm |
| Shaft diameter | 3inch | 3inch |
| Precision | ±0.3mm | ±0.3mm |
| Total power | 1.5kw | 2.2kw |
Configuration:
Unwinding shaft : 3 inch inflatable shaft 2 pcs
Rewinding shaft : 3 inch inflatable shaft 1 pcs
Magnetic brakes : 2 set
Magnetic clutch : 1 set
Laminating motor: 1set
Laminating roller : 2 (PU material)
Air cylinder : 2 pcs
