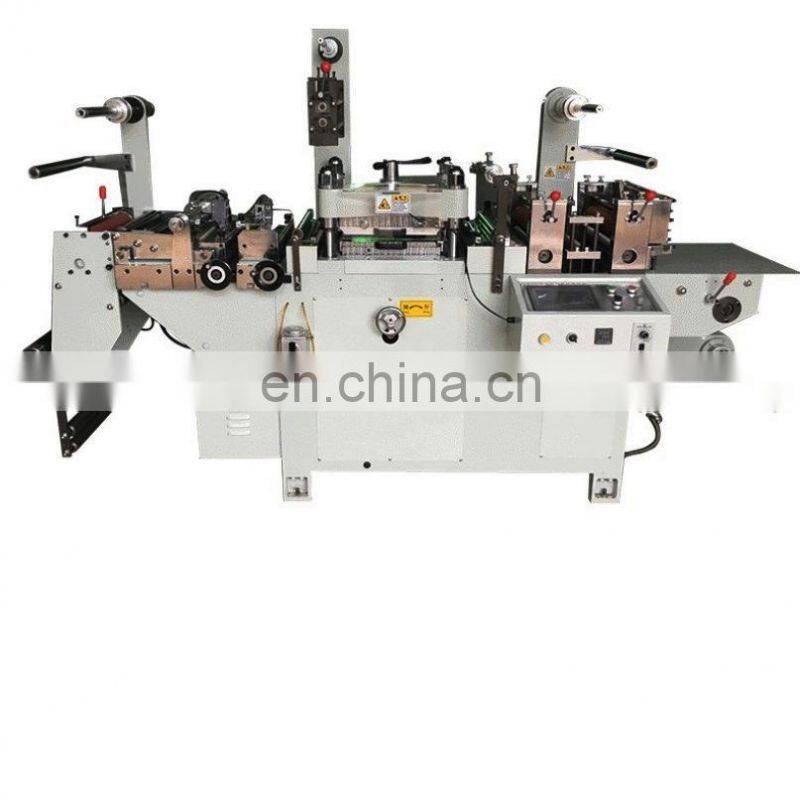

Label Die Cutting Press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Blank Label Kiss Cut Die Cutting MachineNegotiableMOQ: 1 -
Fully Automatic Paper Tag Die Cutter Machines With Conveyor BeltNegotiableMOQ: 1
-
Computerized Multifunction Die Cutting Machine, Trademark CutterNegotiableMOQ: 1
-
Multifunction Automatic Label Die Cutting Machine ( Die Cutter)NegotiableMOQ: 1
-
Automatic Foam Die Cutting MachineNegotiableMOQ: 1
Product Description
Specification
item | value |
Applicable Industries | label die cutting press Automatic Label Die Cutter |
Showroom Location | label die cutting press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Condition | New |
Type | Die-cutting Machine |
Computerized | Yes |
Place of Origin | China |
Jiangsu | |
Brand Name | DP |
Voltage | 220v |
Dimension(L*W*H) | 2300*1250*1500mm |
Weight | 1.2kg |
Warranty | 12months |
Production Capacity | label die cutting press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Key Selling Points | label die cutting press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Max. workable width | label die cutting press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Machinery Test Report | label die cutting press Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Video outgoing-inspection | label die cutting press |
Marketing Type | Automatic Label Die Cutter Flat Bed Adhesive Label Die Cutting Machine |
Warranty of core components | Automatic Label Die Cutter |
Core Components | PLC |
PLC Brand | Schneider, MITSUBISHI |
DIE CUTTING MACHINE TYPE | KISS CUT OR THROUGH CUT |
Product Description
First , Machine main technical data | ||
A. max die cutting speed 300 cuts/minute B. die cutting area 320*300mm(width * length ) C. unwind roll max diameter 500mm D. max paper roll diameter 320 mm E. left to right position precision : ±0.50mm F. Step Accuracy : ±0.10mm G. Total power : about 6.0kw H. Power Voltage: 1P 220V 50HZ I. Machine Net weight about 1650kg J. machine size(length *width * height ): 2700*1050*1400mm( Removable 1600*1050*1400mm) | ||
Second , machine configuration |
1 , unwinding part A. Aluminum guiding roller B. unwinding air-shaft C. unwind pulling material roller + steel roller D. unwind pulling material motor300W E. unwind damping device F. Electric Eye ( paperless automatic stop) 2, laminating part ( optional function ) 1. filming device ( unwinding function ) A. Filming unwinding roller 2. filming device ( unwind rewind function ) A. filming unwinding roller B. filming rewinding roller C. filming rewinding motor D. Aluminum guiding roller 3. Rectification system A.Aluminum guiding roller B. rectification motor 70W C. Rectification electric eye 4. printed mark tracing part A. Paper platform B. Electric eye holder C. Color tracking electric eye 5. punching hole part ( optional part ) 1.Mechanical type punching hole A. punching hole mold B. Connection block (connect with up die cutting plate) 2. Pneumatic punching hole A. punching hole mold B. Pneumatic cylinder 6. die cutting part A.Die cutting seat assembly (can move left and right – paper unwind direction) B. Main motor 2.2KW C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling ) D.Buffer spring E. Down cutting plate seat height adjustment ( 2 Inclined plate) F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies) 7. Pulling material part A.pulling material roller+ steel roller B.pulling material servo motor 2.2kw(Zhejiang Dongling) C.Timing belt 8. Waste scrap part A. guiding roller B. waste scrap rewind roller C. Buffer Disposal Device - Optional function (For some thick adhesive material difficult to scrap material ) 9. sheeting blade part A.Aluminum guiding roller B. Cutter clutch assembly C. up cutting blade (inserting steel) D. down cutting blade (inserting steel) 10. Rewinding part A. Aluminum guiding roller B. rewinding cushioning device C. Rewinding pulling material rubber roller+ steel roller D. rewinding motor 800W ( when sheeting can stop) 11. Hot foil stamping part ( optional part ) 1. Stepper motor stamping device A. Hot stamping unwind roller B. Aluminum guiding roller C. hot stamping pulling material roller D. hot stamping pulling material motor ( stepper motor ) 2. Servo motor hot stamping device A. Hot stamping unwind roller B. Aluminum guiding roller C. hot stamping pulling material roller D. hot stamping pulling material motor ( servo motor 0.75KW Zhejiang Dongling) 12. electric control part A.PLC (Panasonic) B.Touch screen ( Weinview TK6070IQ) C. Servo motor driver (Zhejiang Dongling) D. Frequency speed converter ( HUALAN) E. Power switch 220-2-110( Taiwan ) 13. metal sheet , safety cover etc 14. others A. Tools B. Operation manual |

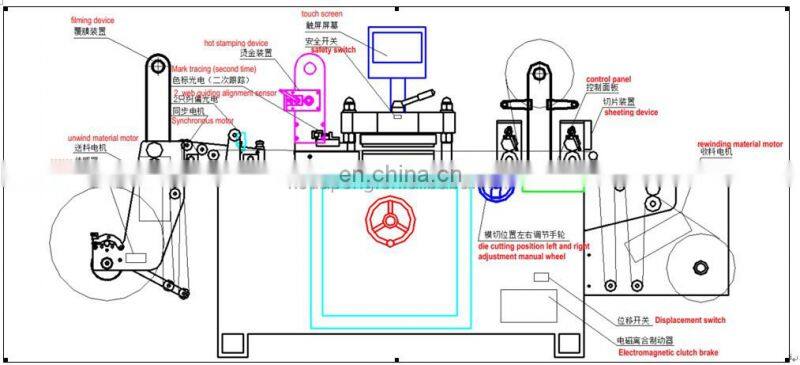

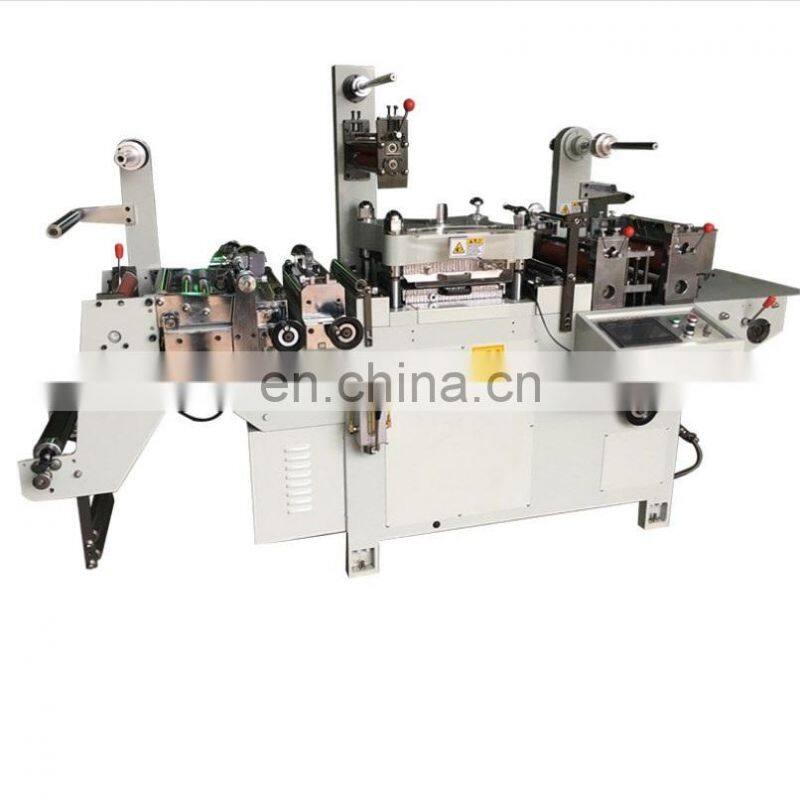

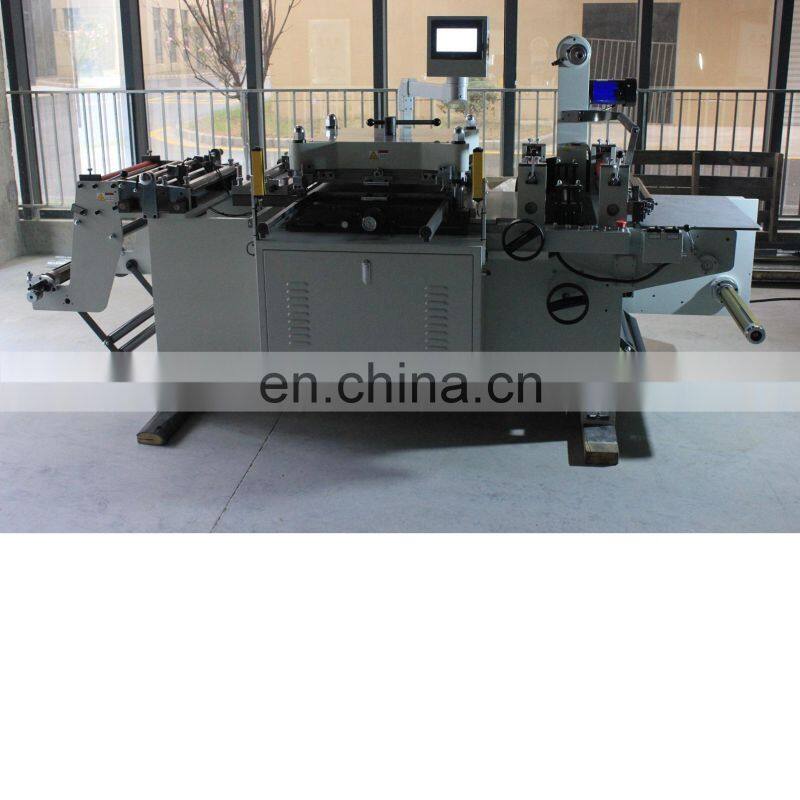

MACHINE STRUCTURE
the machine has been extremely reliable , quiet and easy to use

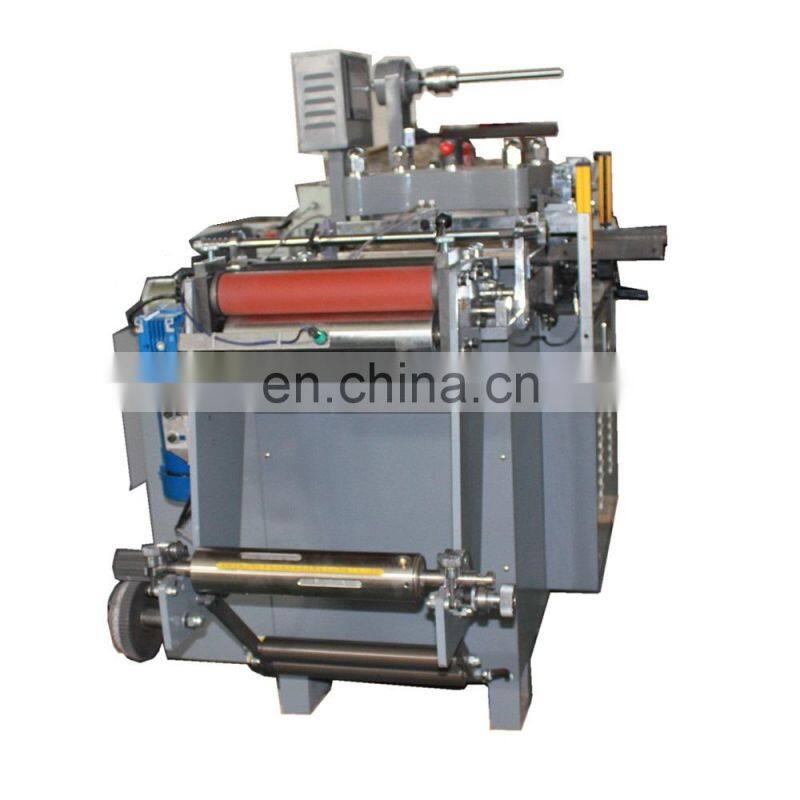

Unwinding side

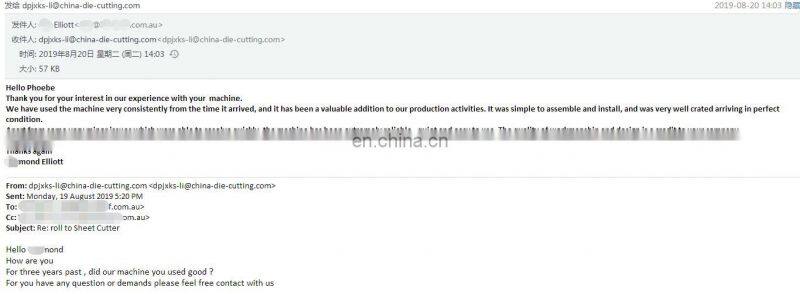

Below is our customer feedback
REWINDING SIDE
about the machine
Company Profile
Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.
Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.
In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
