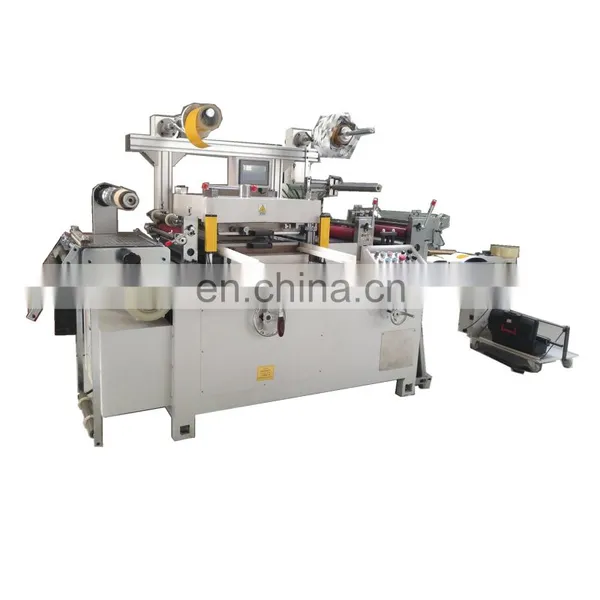

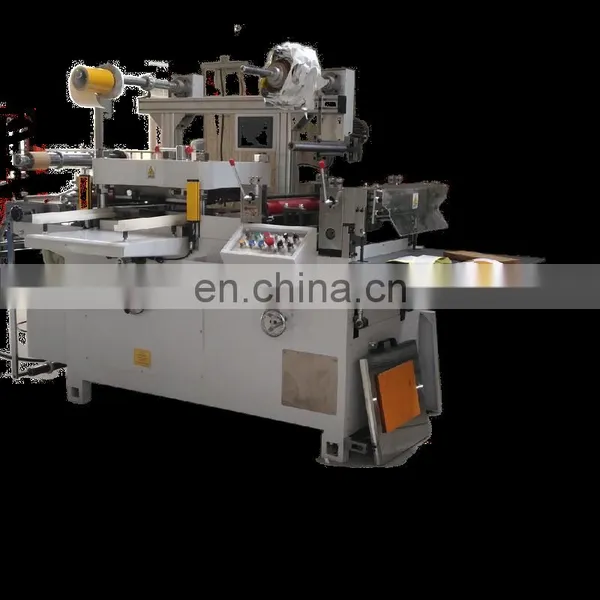

Die Cutting Machine to Cut the Mask Nose Sponge
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Sided Tape Flatbed Die Cutting Machine High Speed 3M/PE Foam Label Punching Die Cutting 30 Sets Production Capacity GreyNegotiableMOQ: 1 -
Automatic Flatbed Die Cutter Die-cutting Machine Flat Bed Label Die Cutting Machine 300 Cuts/min Production Capacity About 6.0kwNegotiableMOQ: 1
-
Fully Automatic Label Cutter Sticker Sheet Die Cutting Machine Automatic Medium Speed Flat Bed Label Die Cutting MachineryNegotiableMOQ: 1
-
High Quality Automatic Flatbed Die Cutter Backlight Double Sided Tape Die Cutting MachineNegotiableMOQ: 1
-
Roll To Roll Kiss Cutting Machine Automatic Flatbed Die Cutting MachineNegotiableMOQ: 1
Product Overview
flat-bed die cutting machine cutting machine to cut the mask nose sponge.
This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three
photoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished in
one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an
ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
photoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished in
one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an
ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
CUTTING STABLE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
DIE CUTTING PRECISE
cutting machine to cut the mask nose sponge.
WITH LAMINATING FUNCTION UNWINDING
MAIN DIE CUTTING PART
REWINDING PART
PRODUCT SPECIFICATIONS
Model |
DP-320BII |
DP-420BII |
Cutting speed |
20-200 (t/m) |
20-200 (t/m) |
Max unwinding diamete |
450mm |
450mm |
Max web width |
320mm |
420mm |
Max mould cutting area |
320x300mm |
420x420mm |
Orientation accuracy |
±0.10mm |
±0.10mm |
Motor power |
3kw |
4kw |
Power voltage |
220v±10% |
380v±10% |
Machine weight |
2200kg |
2800kg |
Measurement |
2600x950x1400mm |
2600x1050x1800mm |
PRODUCT CONFIGURATION
TOUCH SCREEN OPERATION
Imported SERVO DRIVER AND FREQUENCY CONVERTER
Japan MITSUBISHI motor SERVO MOTOR
Peeling material part with motor back side view
Front view of peeling part
operation board
main die cutting station
