3m Tape Die Cutting Machine ( Die Cutter)

3m Tape Die Cutting Machine ( Die Cutter) photo-1

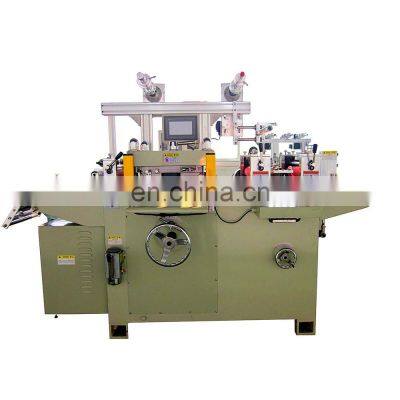

3m Tape Die Cutting Machine ( Die Cutter) photo-2
3m Tape Die Cutting Machine ( Die Cutter) photo-3
3m Tape Die Cutting Machine ( Die Cutter) photo-4
3m Tape Die Cutting Machine ( Die Cutter) photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

3m tape die cutting machine ( die cutter)





The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.

It contains an oil gear box which reduces abrasion to the mahcine during the operation,

thus prolonging the life span of the machine, enhacing the utilization ratio of the machine.

"Press itinerary and pull the material length are automatically adjusted by the screen, make moulding-adjustment more convenient

"



Scope applicable:

The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar,

copper foil, aluminum foil, foam, etc. in the electronic industry.





Model DP-320BII MQ-420BII
Max Feeding Width     (mm) 320 420
Cutting Area       (mm) 300*300 400*400
Cutting Speed      (T/M) 30-170 30-170
Position Accuracy   (mm) ±0.10 ±0.10
Power of Main Engine  ( kw ) 2.2 3
Size    ( mm ) 2300*1250*1500 2550*1450*1650
Voltage   (V ) 220 380

3m tape die cutting machine ( die cutter)3m tape die cutting machine ( die cutter)3m tape die cutting machine ( die cutter)
