Self-adhesive Leather Paper Red Sand Back Flock Die Cutting Machine Flocking Sand Disc Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Roll Die Cutting Machine for Nickel Foil and Copper Foil Label / Rubber Pad / Filtering SpongeNegotiableMOQ: 1 -
Foam Leather Cutting Machine/PP Woven Bag Making Cutting MachineNegotiableMOQ: 1
-
How Does a Die Cutting Machine Work Adhesive Foam Tape Label Die Cutting MachineNegotiableMOQ: 1
-
Hydraulic Press Punching PVC PP PET Film Die Cutting MachineNegotiableMOQ: 1
-
450KN Automatic GEOcell Hole Punching Machine Roll to Sheet Punching MachineNegotiableMOQ: 1
Product Description

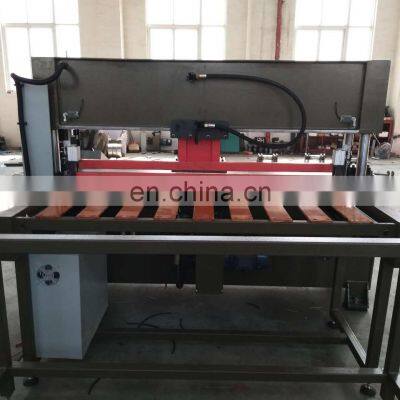

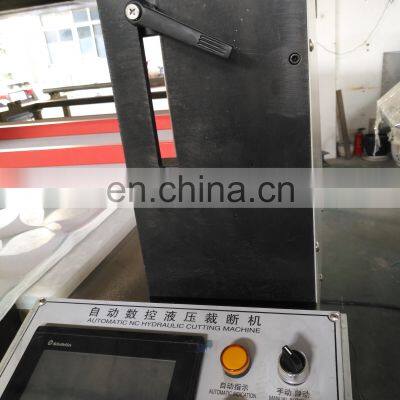

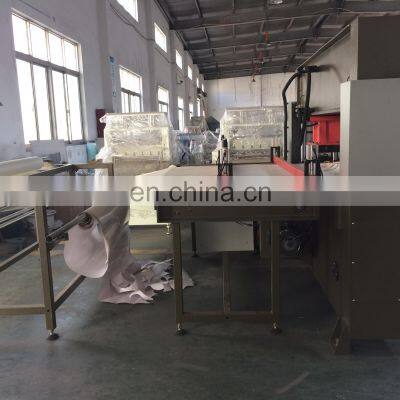

Features of hydraulic gantry mobile cutting machine:
It is mainly used for forming die for blanking single-layer or multi-layer leather, rubber, plastic, hard paper, fabric, chemical fiber, non-woven fabric and other materials.
1. Easy to set, low pressure adjustment, easy to set cutting stroke.
2. The floating position of the pressure plate can be set arbitrarily to reduce unnecessary idle stroke.
3. The pressure plate can be moved left and right, and the operation sight is good.
Main configuration:
1. The shell is made of Q235 national standard material and welded with carbon dioxide to avoid deformation.
2. The four pillars are made of 45# round steel quenched and tempered, and the surface is plated and processed by hard grinding.
3. All switches adopt Taiwan Tiande products.
4. Motor control adopts LS products.
5. Hydraulic components adopt Taiwan Fengchang products.
6. The intermediate relay adopts Omron products, and the time controller adopts CKC products.
7. The oil pump adopts Yongling low-noise oil pump.
8. The sealing element adopts British or Japanese materials.
9. Surface electrostatic spraying, instead of traditional spray paint.
10. The size of the machine can be customized.
Specification
item |
value |
Applicable Industries |
Manufacturing Plant, Self-adhesive sand disc making |
Showroom Location |
Self-adhesive sand disc cutting machine |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Provided |
Marketing Type |
High precision Machinery |
Warranty of core components |
1 Year |
Core Components |
PLC, Pressure vessel, Pump |
Condition |
New |
Automatic Grade |
Automatic |
Place of Origin |
China |
Jiangsu |
|
Brand Name |
DP |
Type |
Cutting Machine |
Voltage |
380V 50Hz |
Power |
11KW |
Dimension(L*W*H) |
2330*900*1900 |
Weight |
3500KG |
Warranty |
12 Months |
Product name |
traveling head die cutting machine |
Function |
Travelling Head Cutting Machine |
Raw material |
Big Jumbo Roll |
Cutting Force |
50 Tons |
Cutting Area |
610*1600mm |
Cutting Plate |
610*610mm |
Stroke Control Range |
40-160mm |
Main Motor Power |
5.5kw |
Application |
hydraulic cutting machine |
Travel Head Size |
500*500mm/ 400*400mm |
Model.No~ |
Cutting Force |
Dimension (L*W*H) |
Cutting Area |
Cutting Plate |
Main Motor Power |
Stroke Control Range |
Net Weight |
DP-C25T |
25 Tons |
2330*900*1900mm |
500*1600mm |
500*500mm |
2.2kw |
40-160mm |
1900kg |
DP-C30T |
30 Tons |
2330*900*1900mm |
610*1600mm |
610*610mm |
4kw |
40-160mm |
2300kg |
DP-C40T |
40 Tons |
2330*900*1900mm |
610*1600mm |
610*610mm |
4kw |
40-160mm |
2800kg |
HG-C50T |
50 Tons |
2330*900*1900mm |
610*1600mm |
610*610mm |
5.5kw |
40-160mm |
3500kg |
Packing & Delivery
wooden case packing
