Automatic Hybrid car battery cover plate High resilience dustproof shielding foam die cutting machine
- 1000 per Month
- T/T Credit Card
- CE Certified Vinyl Sticker Die Cutting Machine
- kiss cut and full cut auto rubber foot pad roll die cutting machine
- PET film adhesive sticker hydraulic die cutting machine
- PC, pet Screen Printing Film Membrane Switch press machine
- Special Automatic Feeding Hydraulic Press Machine Four-column Three-beam Hydraulic Press 3 Years Servo Manufacturing Plant 400 *
- Membrane Switch Press Machine
Product Description

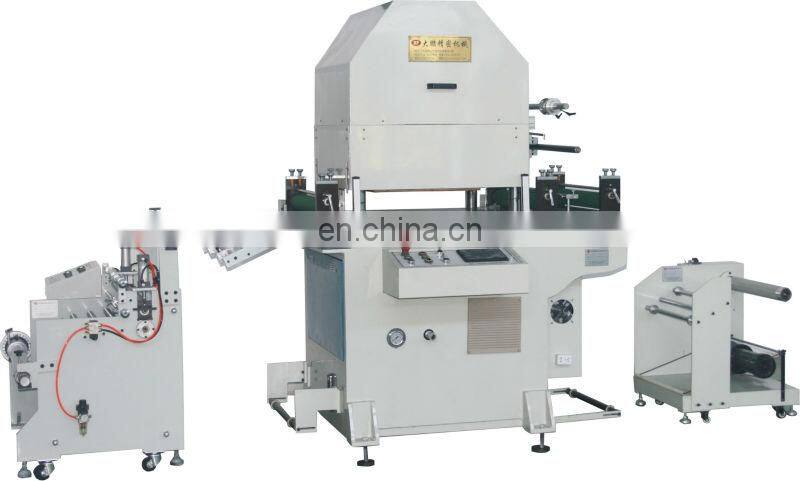

High resilience dustproof shielding foam die cutting machine
DP-Especialistas en máquinas de troquelado
Potente, preciso y rápido.
Conveniente para los materiales en rollos
Disponible en una amplia gama de potencias de 8 toneladas a 80 toneladas con la superficie de corte de 650 mm * 600 mm hasta 1000 mm * 800 mm.
Características funcionales
Operación flexible y conveniente,
Sistema de registro fotoeléctrico,
Un controlador de programador (PLC)
Beso Corte, a través de cortar a su disposición.
Anti-vibración pies de la máquina,
Una velocidad de corte de hasta 20 a 90 golpes por minuto.
Alcance de uso
Se aplica para cortar diversos materiales, tales como caucho, plástico, placa de papel, papel de aluminio, papel de Cooper, PET, película protectora, Mylar, Reflector, difusor, juntas, cinta de silicio etc.
Principales Parámetros Técnicos:
Modelo |
´rea de trabajo. |
Max Tonelaje |
Max Ancho de alimentación |
Drive Motor |
PESO: |
Dimensiones |
Precisión de la posición |
POWER: |
DP-650 |
650mm * 600mm |
40t |
650mm |
7.5HP/5.5KW |
3 Ton |
1940mm * 1500mm * 1790mm |
± 0,01 mm |
380V 50Hz |
DP-650 |
850mm * 600mm |
40t |
850mm |
10HP/7.5KW |
3.4Ton |
2140mm * 1500mm * 1790mm |
± 0,01 mm |
380V 50Hz |
DP-650 |
1000mm * 800mm |
80t |
1000mm |
15HP/11..2KW |
4.5ton |
2290mm * 1500mm * 1790mm |
± 0,01 mm |
380V 50Hz |
I , unwinding part ---------------max width 650mm
1, First unwind : 3 inch air-shaft , AC Motor , frequency control
second unwind ,3 inch air-shaft , magnetic powder brake
2, unwinding effective width : 650mm , max diameter is 24 inch ( 609mm), bear weight at 136KG
3, touch dancer sensor for first guiding roller
4, Servo motor control the 2 pulling roller ,
pulling roller is rubber material and hardness must at 75--80 degree , opening height is adjustable at least 24mm
II , Main Machine ------------ Die cutting area 650*600mm
1, Four shaft hydraulic machine
2, max cutting force : 40 Ton
3, shock proof
4, with light for the die cutting part so that easy installing mould and watch the die cutting part
5, plane die cutting area 650mm length , 600mm width
6, Safety Light Curtains at four corner .
III, electronic PLC control
1, LCD touch screen , computer control base
2, with password for data protection
3, can save the datas that setted
4, low maintainance
5, all the parts are under CE safety standard , electronic parts have CE mark
6, all the cutting / unwinding length and number are can set in the touch screen
7, cutting depth precision control at 0.025mm
8, stroke is controlled in 50--101.6mm

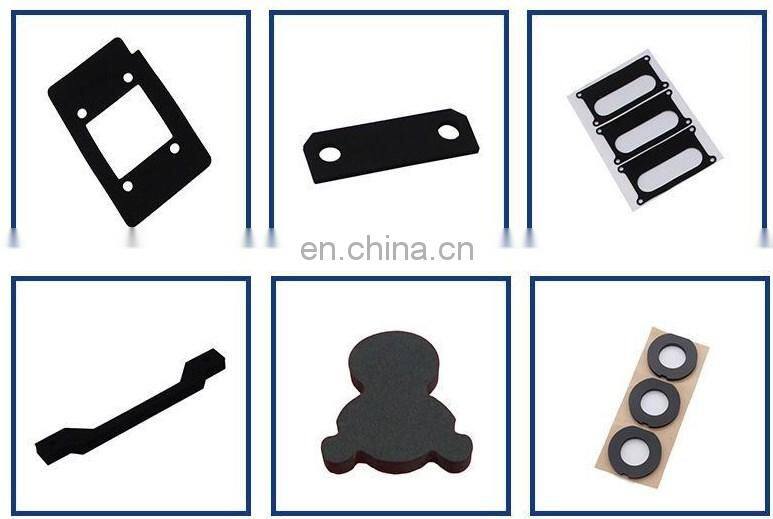

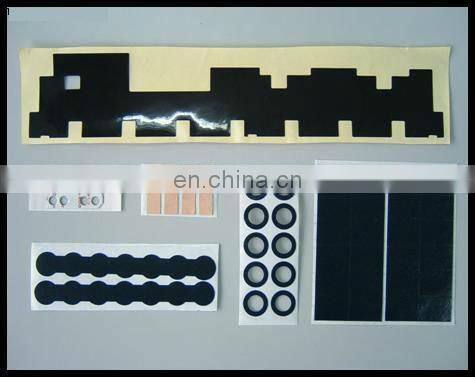

application :
