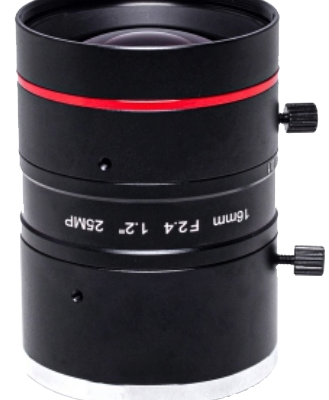

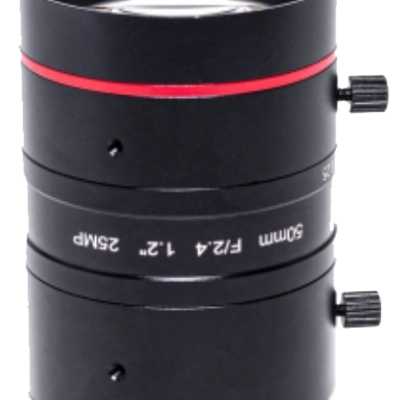

Sell 1.2" 25MP 12mm, 16mm, 25mm, 35mm, 50mm to LED Inspection, Batter Inspection ( Samsung, CATL )US$ 1 - 100MOQ: 1 Piece -
China 6mm 2/3\" 5.0Megapixel FA Machine Vision Low Distortion Lenses Positioning Measurement AI 3D Computer China OpticsUS$ 1 - 100MOQ: 1 Piece
-
6mm 2/3" 5.0Megapixel FA Machine Vision Low Distortion Lenses Positioning Measurement AI 3D Computer China OpticsUS$ 1 - 100MOQ: 1 Piece
-
Auto-focus Bi-telecentric Lenses 0.5X Magnification W.D 108mm TV DistortionUS$ 1 - 1000MOQ: 1 Piece
-
China Auto-focus Bi-telecentric Lenses 0.5X Magnification W.D 108mm TV DistortionUS$ 1 - 1000MOQ: 1 Piece

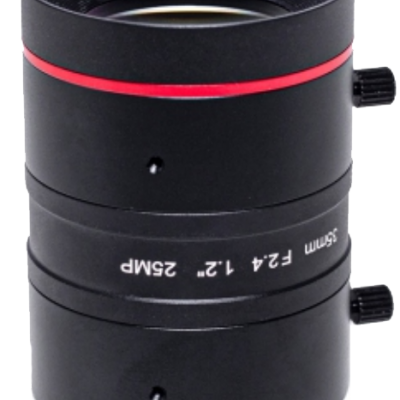

35mm 1.2" 25MP Machine Vision FA<0.015% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: <0.015% TV / 0.06% Optical low distortion for machine vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
Model | 12MV3524-25M | |
Resolution | 25 Megapixel | |
Format | 1.2" (2.74μm) | |
Focal Length | 35mm | |
Max image circle | Φ19.3mm | |
Aperture (Close) | F2.4 Manual iris | |
Angle of View (°) | 1.2" | 30*23*20 |
M.O.D | 0.15m | |
Relative Illumination | 82.1% ( WD=400mm F2.4 ) | |
Distortion | 0.015% ( TV ) ; 0.06% (Optical ) | |
B.F.L | 19.5mm , WD=800mm | |
CRA | 6.5° | |
Size | Φ42*59.32mm | |
Filter Size | M40.5*P0.5-7H | |
Mount | C | |
Weight | 260g | |
Marks | AT430~680nm T≥85%; 11G Element | |
Projector | Center ≥200lp/mm;Edge Φ16 ≥160lp/mm | |
