Home > Products > Machine vision / FA lenses > 35mm 1" 5.0 Megapixel Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion -0.54% Special Camera Invisible Inspection

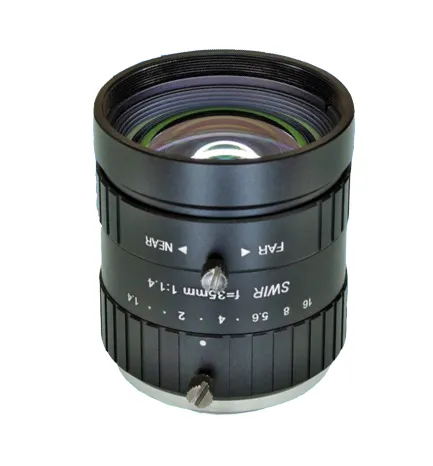

35mm 1" 5.0 Megapixel Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion -0.54% Special Camera Invisible Inspection
USD $1 - $100
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- shanghai
- T/T Other
- 3 days
You May Like
-
SWIR: 25mm Φ12.6mm 5MP Megapixel Lenses 800~1700nm Machine Vision Lens 0.005x~0.141x
-
UV Lens 80~640mm 250~380nm C/EF Mount Thermal Lenses For Forest Bondary Fire-protection
-
China 12x Coaxial linear motorized automatic motored zoom lenses with low distortion 0.6x~0.72x optical zoom
-
8mm 1/1.7" 12Megapixel Lenses M12 Machine Vision FA -0.28% F5.6 Low Distortion Scanning Face Recognition Video Camera Optical Lens
-
China Top RV3652 Inner View Barrel 360 Degree Inspection Lenses 2/3 imaging camera Optics For Tube
-
China No.1 360° Degree Outer View Outwall Inner Wall Surface Imaging Optics Camera Lenses On Cylinder Bolts Fasteners Bottle Cap etc.
Product Details
| Brand Name | Place of Origin | China | ||
| Model Number | 1WIR3514-5M |
Product Description
35mm 1" 5.0 Megapixel Machine Vision FA Lenses For SWIR Shortwave IR Camera 900~1700nm Coating Used For Inspection
SWIR Short Wavelength IR Lens Covering 900~1700nm Which Can Use For Electronic Inspection, Semiconductor, Biometric Imaging, Military That Has Complex Foggy Enviroment
35mm 1" 5.0 Megapixel Machine Vision SWIR Shortwave IR 900~1700nm Coating FA Lenses Low Distortion -0.54% Special Camera Invisible Inspection
Model | Megapixel | |
Format | 1" | |
Focal Length | 35mm | |
Aperture | F1.4 Iris | |
Angle of View (°) DxHxV | 1" | 25.2*20.3*15.2 |
M.O.D | 0.5m | |
B.F.L(mm) | 13.67mm | |
M.F.L(mm) | 9.92mm | |
T.T.L | 53.7mm | |
Dimension | Φ45*43.3mm | |
Distortion | -0.54% | |
Wavelength | 900~1700nm | |
Mount | C | |
Weight | 156g | |
