IC698CHS117C GE Full series spare parts for gas turbine clamp module
IC698CHS117C GE Full series spare parts for gas turbine clamp module
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE

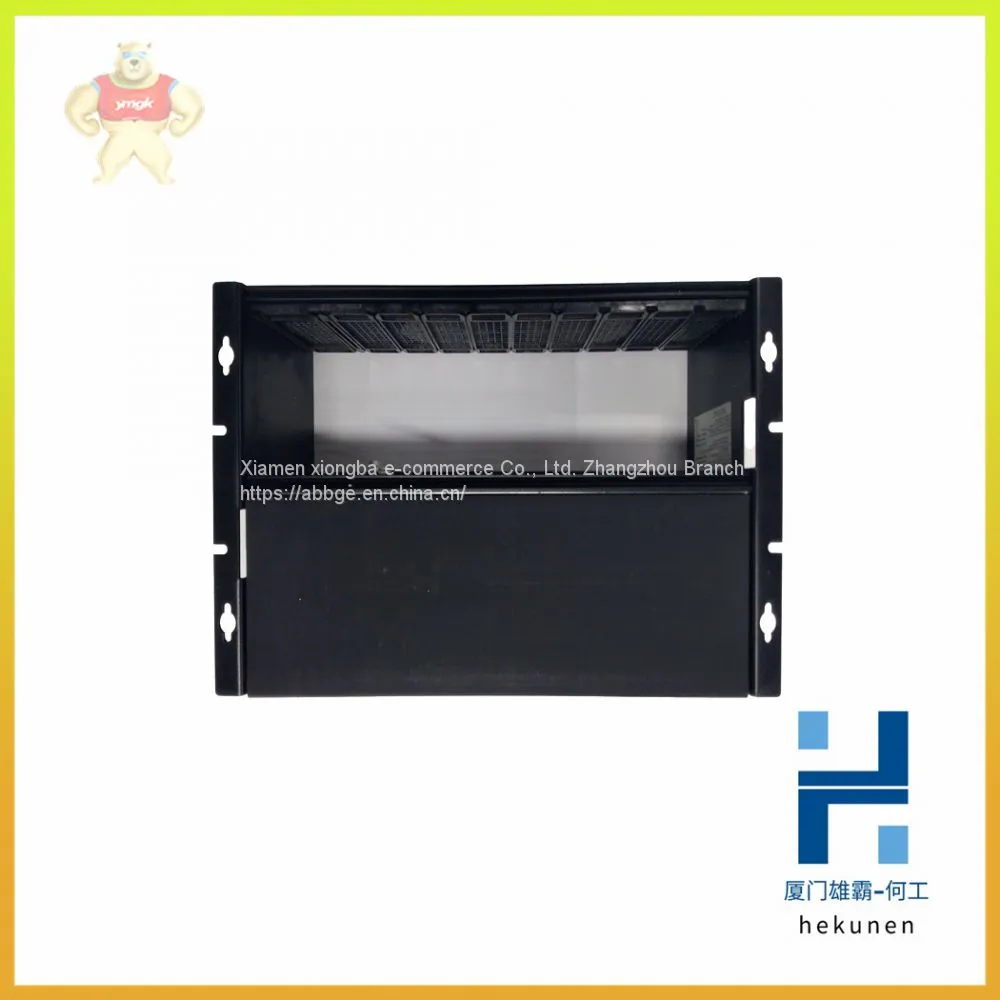

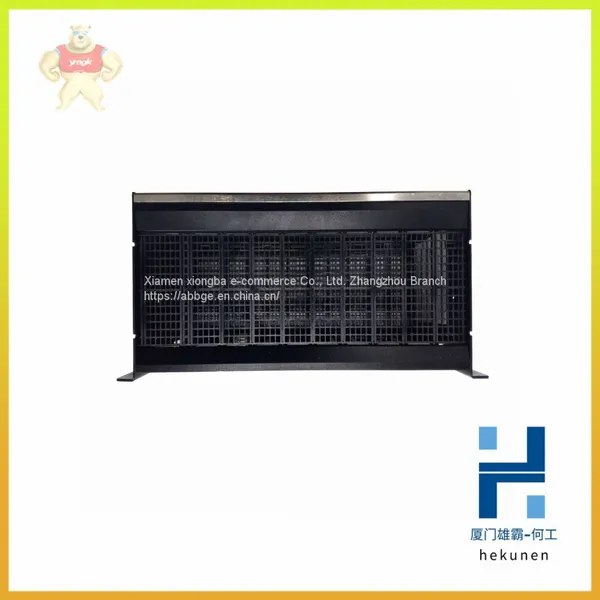

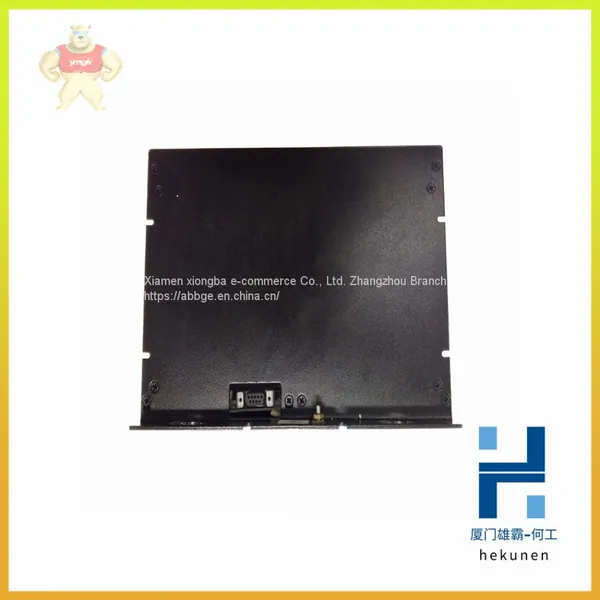

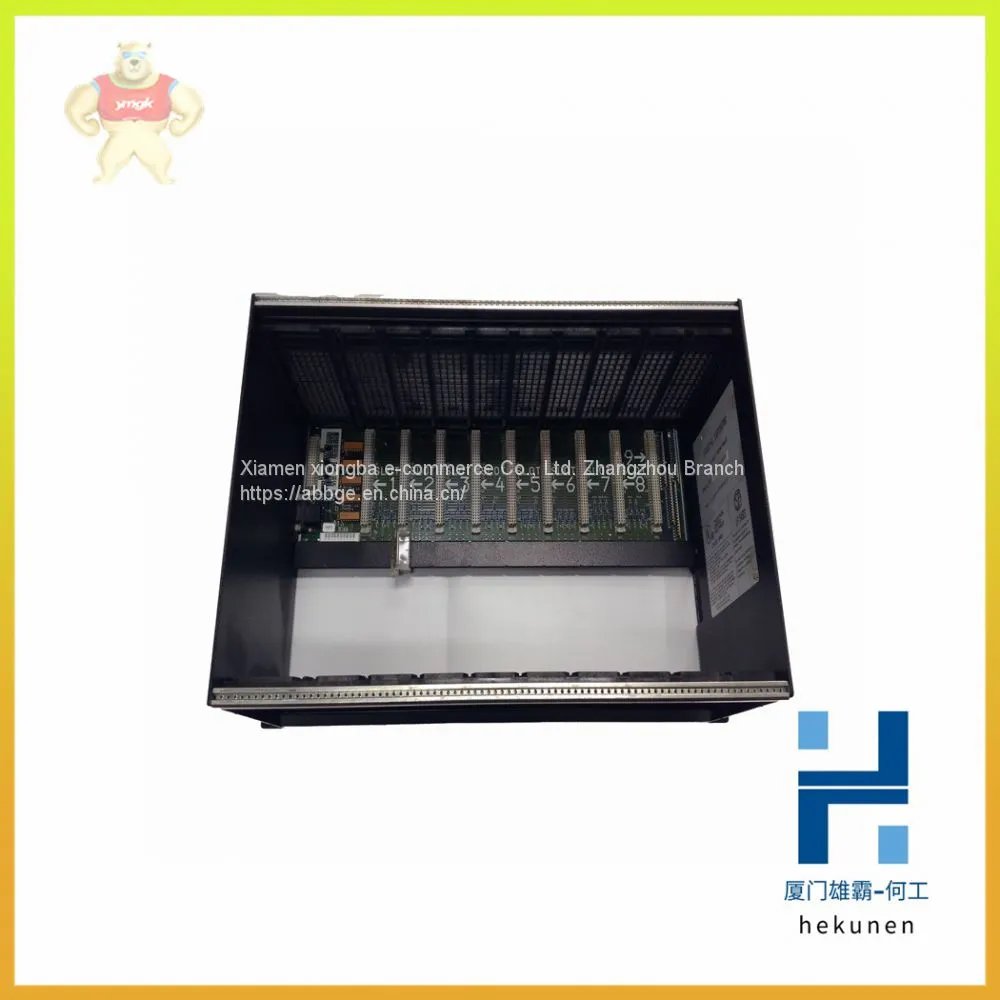

The GE Fanuc IC698CHS117 RX7i I/O Rack is made for the Rx7i PACsystem series. The IC698CHS117 Rack is a wall-mounted 18-slot I/O rack built for the VME64 backplane system and high-level power supply. This I/O rack has up to 4 times more bandwidth strength than the standard VME backplane systems and thus it provides faster I/O throughput. The IC698CHS117 Rack supports the GE Fanuc Rx7i CPUs, Rx7i I/O modules, Series 90-70 I/Os, and all the standard VME modules. It has a slot-sensing feature for rack-type I/O modules and it is configured with programming/configuration software, eliminating DIP switches and jumper configurations. All the Rx7i racks have an open-type design and they must use the IP 54 standard enclosures or enclosures with higher ratings for safe use in an industrial environment.
The IC698CHS117 Rack supports high-wattage Rx7i power supplies and Rx7i AC power supply plug-ins. It has a power supply rating of 350 Watts and current ratings of 4 Amps at -12 Volts, 12 Amps at 12 Volts DC, and 60 Amps at 5.0 Volts DC input. The IC698CHS117 Rack has 18 I/O slots that support up to 15 single-width I/O modules without any double-width modules, 8 double-width modules, or a combination of double-width and single-width modules. The IC698CHS117 module’s slots are numbered 1 through 18, with an average slot-width of 0.8 inches. Slot 1 is always reserved for the CPU. Double-width RX7i CPUs with embedded Ethernet cards use slots 1and 2. Slot 0 with a 2.6-inch slot-width is used for the power supply module. The IC698CHS117 Rack is configured by using the Windows-based and highly-intuitive CIMPLICITY Machine Edition Logic Developer-PLC software that provides a graphical interface for the users to configure the I/O addressing.
