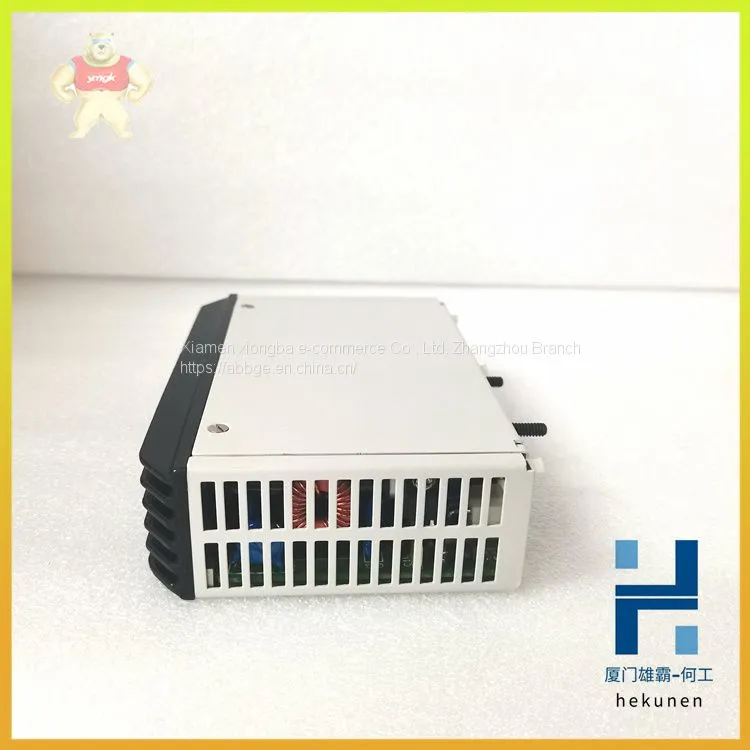

8421-CC-PS GE Gas turbine card control system communication
8421-CC-PS GE Gas turbine card control system communication
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
An 8000 Series node comprises single or redundant
Ethernet Bus Inter-face Modules, up to 64 I/O modules,
field terminals, and associated power supplies.
A schematic node architecture is shown below. Information from the I/O modules is transferred to and
from the communication module (EBIM) via the Railbus. The Railbus is a fast, serial data bus with parallel
module addressing and extends over the full length of
the node. The parallel address architecture means that
each I/O module position has a unique address which
eliminates the need to ‘train’ modules during installation.
Power for the node is provided by integrated power
supply modules; these convert the locally available
power source into a regulated internal supply rail. This
rail energizes the EBIM and all Railbus communication
between the EBIM and I/O modules.
For some I/O module types—such as those with
low-power and intrinsically safe field circuits—it also
provides power for the field wiring. Where additional
power is required for field devices (such as high current AC circuits), power can be provided by means
of cabled connections from each module to external
relays. This Bussed Field Power facility reduces installation time by removing the need to make daisy chain
wiring connections at the field terminals of each I/O
module
