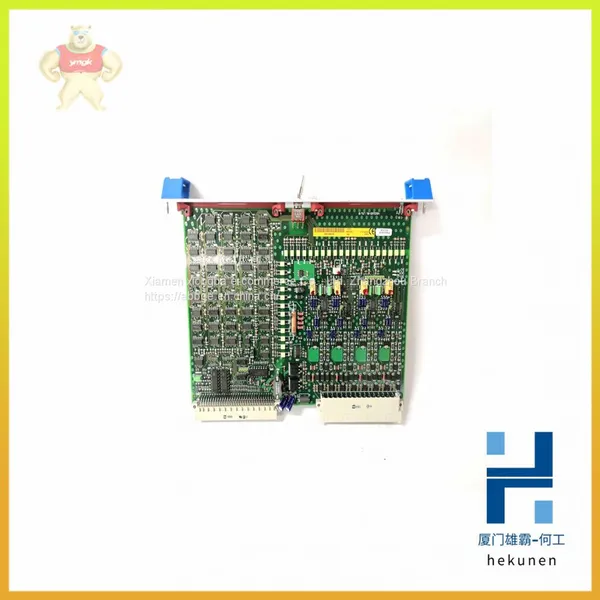

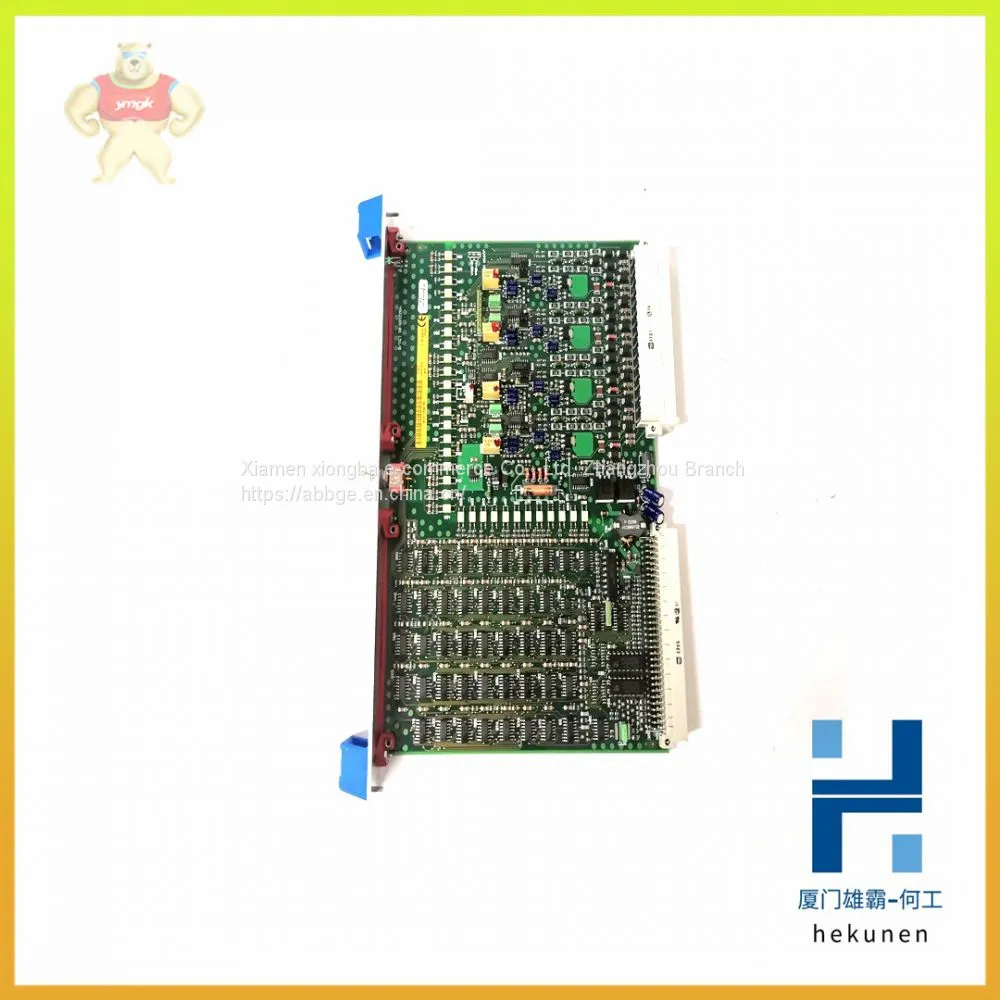

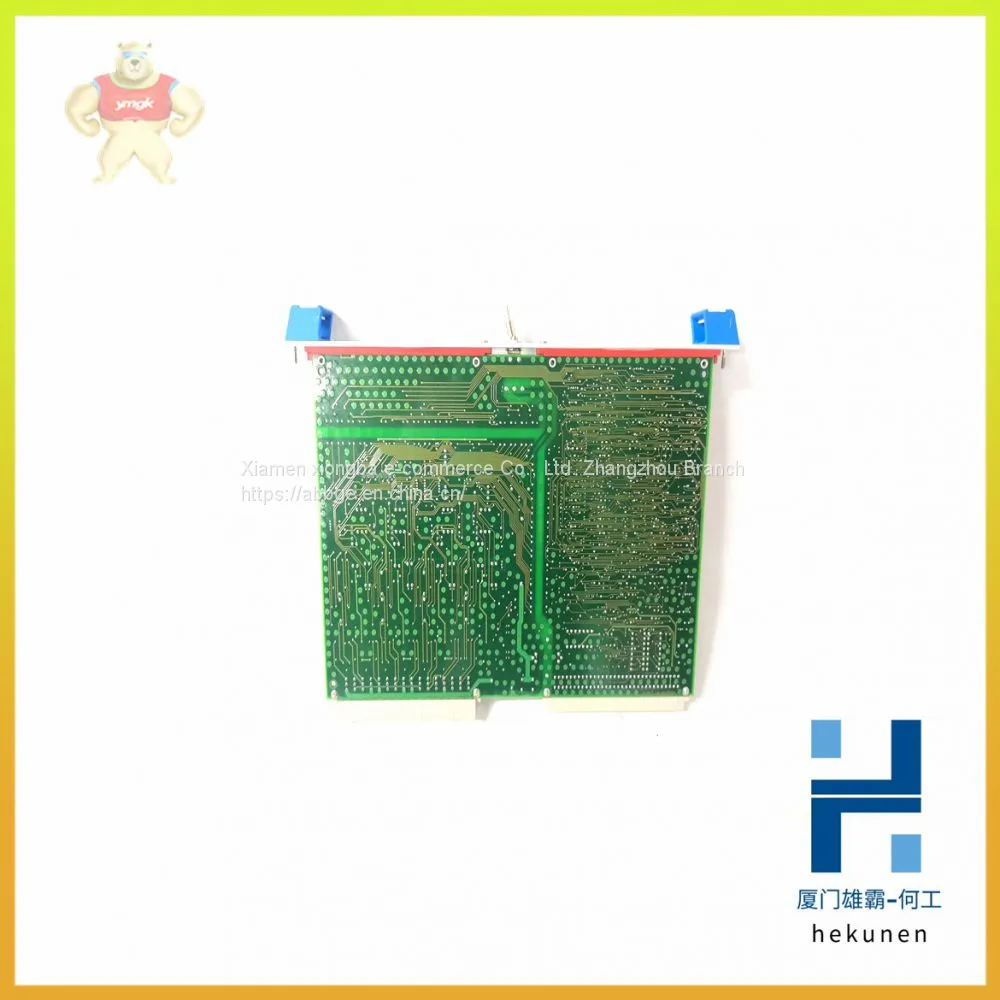

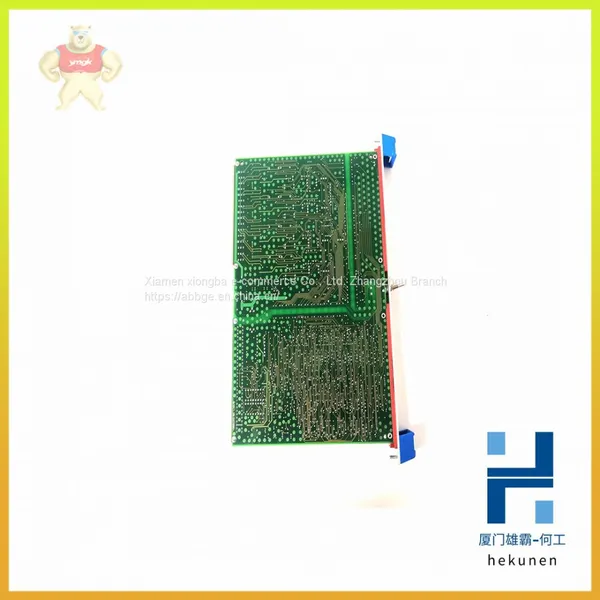

PIB671-1500 ABB Advantage system metering board

PIB671-1500 ABB Advantage system metering board

PIB671-1500 ABB Advantage system metering board

Our Email: 2235954483@qq.com

contact number:13313705507

contacts：HE

CPUs are available in the performance classes PM571,

PM581 and PM591, can all be programmed in five

different languages, and provide an LCD display, an

operator keypad, an SD card slot, andtwo

integrated serial interfaces. The CPUs can be

simply plugged onto the CPU terminal base.

Optionally,

they are also available with integrated Ethernet

or ARCNET.

The CPU terminal base

Available in three different versions, enables

easy plugging of the CPU and one, two or four

communication modules.

The I/O modules

Digital and analog in different versions.

Can be simply plugged onto the terminal units

– for local expansion of the CPU (max. seven

modules) and decentralized expansion via the

FBP interface. Flexible use thanks to configurable channels.

The terminal units

Multi-purpose usage for both digital and analog

I/Os, for 1, 2 and 3-wire designs. Enable simple

prewiring without electronics. For 24 V DC and

230 V AC, optionally for spring or screw-type

terminals.

The communication modules

For connection to standard field bus systems

and integration into existing networks. Up to

four communication modules in any desired combination

are allowed at one CPU, resulting in a high degree of communication.

The FBP interface module

With embedded digital I/Os and a field-bus-neutral interface for connecting the

chosen FBP connector. For decentralized expansion by up to seven I/O modules.

The SD card

Optional for data logging, downloading and uploading the user program without a

PC or a firmware update for all devices (CPU, couplers or I/O modules).
