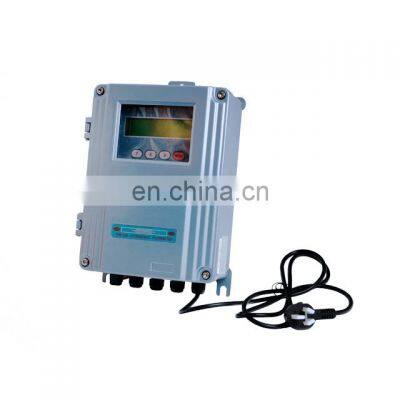

TDS-100F1 Non-invasive wall mounting Ultrasonic flowmeters fixed type ultrasonic flowmeter
Introductions for Ultrasonic flow meter
TDS-100F1 Wall mounted fixed ultrasonic flow meter can measuring flow measurement by using three types of sensor :clamp-on,flow-cell and insertion sensor. And can memorized the positive and negative,net totaliser flow rate and heat quantity.The data can be last 512 days,128 months,10years .
|
Item |
Wall mount ultrasonic flow meter |
|
Accuracy |
Better than ±1.0 % |
|
Repeatability |
0.2% |
|
Pipe Size |
DN15mm~6000mm |
|
Measurement Period |
0.5S |
|
Measurement Principle |
Transit-time measurement principle |
|
Display |
LCD with backlight. 2x20 letters. |
|
Output |
One channel isolation 4-20mA or 0-20mA active output. |
|
Input |
two channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity. |
|
Three channel 4-20mA input optional |
|
|
Power supply |
AC 85—264V or isolation DC 8-36VDC |
|
Power Consumption |
Less than 1.5W |
|
Environment Temperature |
-30°C~80°C |
|
Environment Humidity |
85% RH |
|
Protection Class |
IP65 |
|
Pipe Material |
All metals,most plastics,fiber glass,etc, |
Features for ultrasonic sonic flow meter
1.No process interruption
2.No moving parts,no leakage
3.No risk of contamination and corrossion
4.Non-intrusive flow measurement
Sensors for TDS-100F1 wall mounted ultrasonic flow meter
|
Technical parameters |
S2-type |
M2-type |
L2-type |
|
Pipe size (mm) |
DN15~100 |
DN50~700 |
DN300~6000 |
|
Pipe size (inch) |
( 1/2~4" ) |
(2~28" ) |
( 12~240" ) |
|
Temperature |
32F~320F ( 0°C~160°C ) |
||
|
Dimension (mm) |
45×30×30 |
71×37×40 |
91×52×44 |
|
Weight (g) |
75 |
259 |
535 |
|
Packing list |
|
|
Main Unit |
1 Unit |
|
M2-type clamp-on transducer for 2”~28” pipe |
1 Pair |
|
Dedicated shielded transducer cable |
5mx2 |
|
Clamp Fixture |
1 Set |
|
Allen Wrench |
1 Piece |
|
Spare Connectors |
1 Set |
|
User manual |
1 Piece |
|
Packing list |
1 Page |
|
|
|
|
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
