OGM Series Types Of Flowmeters Oval Gear Digital Meter Gear Flowmeters Meter Gear

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Introduction Of Oval Gear Flowmeter

Oval Gear Flowmeter is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of large metering range, excellent accuracy, small pressure loss, high viscosity adaptability, capability of measuring high-temperature and high-viscosity liquids, convenient demarcation and simple installation etc.. It is applicable to the calibration and meeting of crude oil, chemical fiber, traffic, commerce, food, medicine and health scientific research and military etc.

Specification

Warranty	18 months
Place of Origin	China
Brand Name	Tmeasurement
Model Number	OGM series
Type	Oval Gear Flowmeter
Repeatability	±0.3%
Large viscosity	1000CPS
Total cumulative number	0.00-999999.9
Measurement accuracy	±0.5%
nominal diameter	1";1.5";2"
Minimum flow L/min	12,25,30
maximum working pressure	3.4MPa,1.8MPa
Single count	0.00-9999.9
Item	Oval Gear Flowmeter

Details of Oval Gear Flowmeter

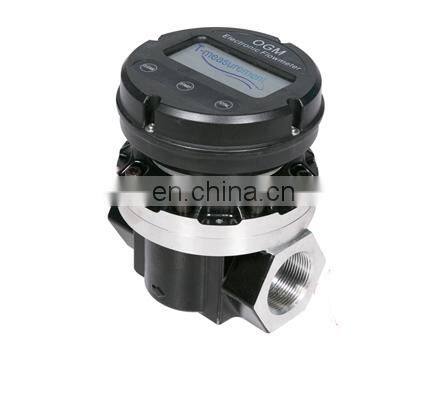

Introduction of Oval Gear Flowmeter（with digital counter）

The product control panel adopts modular design, with complete functions, simple structure, easy operation, etc. it can be widely

used in petroleum, chemical, pharmaceutical, transportation, food industry and commercial. The screen is a digital LCD, the screen is divided into three rows.

Maintenance and maintenance

When the battery voltage is too low, the LCD displays the battery sign on the screen, and the user needs to change the battery. The battery life is too short to cause damage to the flow meter. The design of this meter is about 2 years, but it is recommended that every year, the battery should be removed.

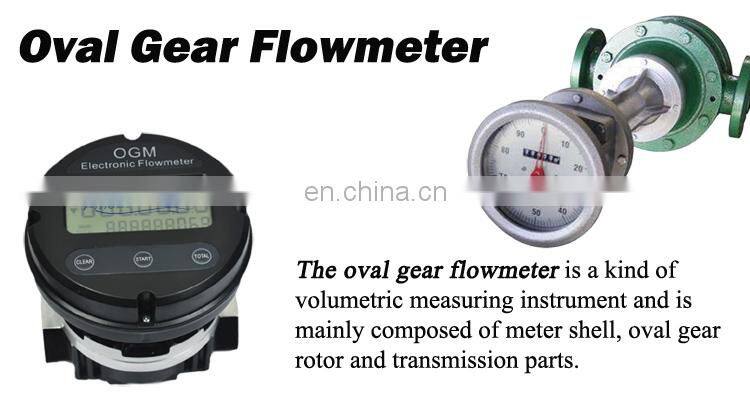

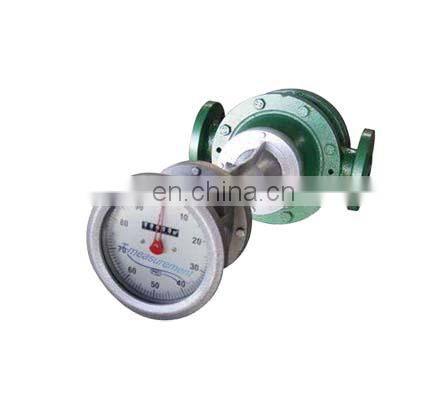

Description of Oval Gear Flowmeter (with mechanical counters)

The oval gear flowmeter is a kind of volumetric measuring instrument and is mainly composed of meter shell, oval gear rotor and transmission parts. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of large metering range, excellent accuracy, small pressure loss, high viscosity adaptability, capability of
measuring high-temperature and high-viscosity liquids, convenient demarcation and simple installation etc..

Technical Parameters of Oval Gear Flowmeter

Accuracy class: class 0.5, class0.2
Medium temperature: -20℃--100℃， added with high temperature radiating cylinder, the temperature can reach 100 ℃-280 ℃

Anti-explosion class of remote display site: E XIAIICT5, DIIBT4.

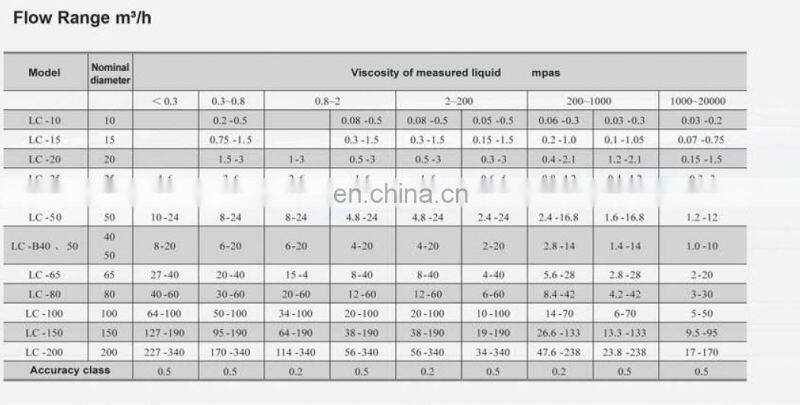

Flow Range of Oval Gear Flowmeter
