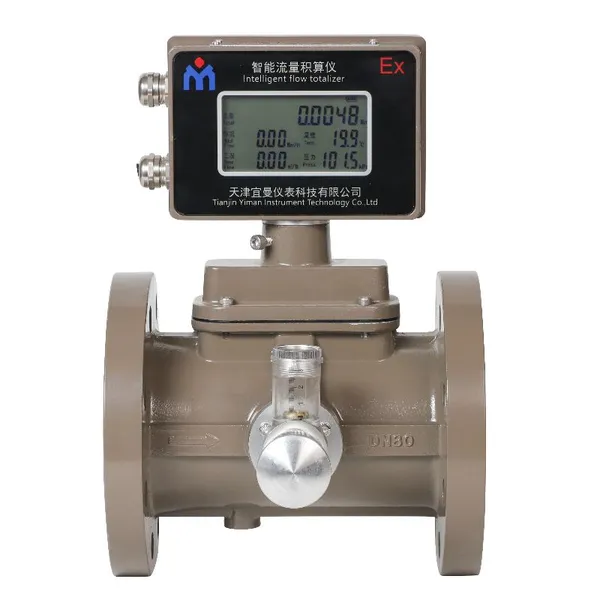

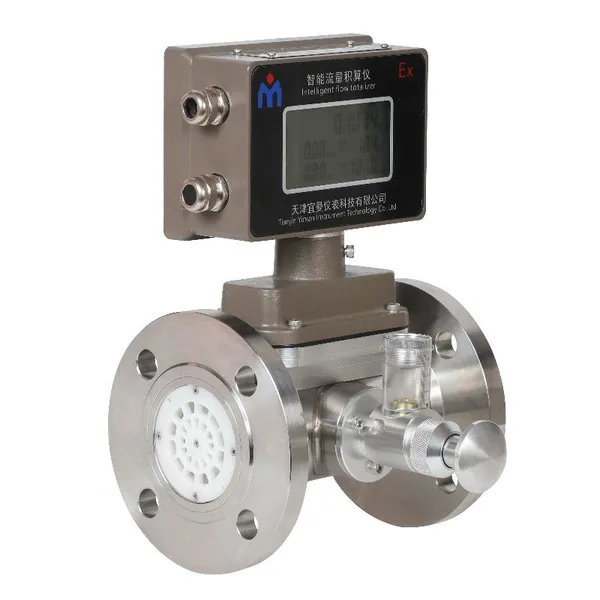

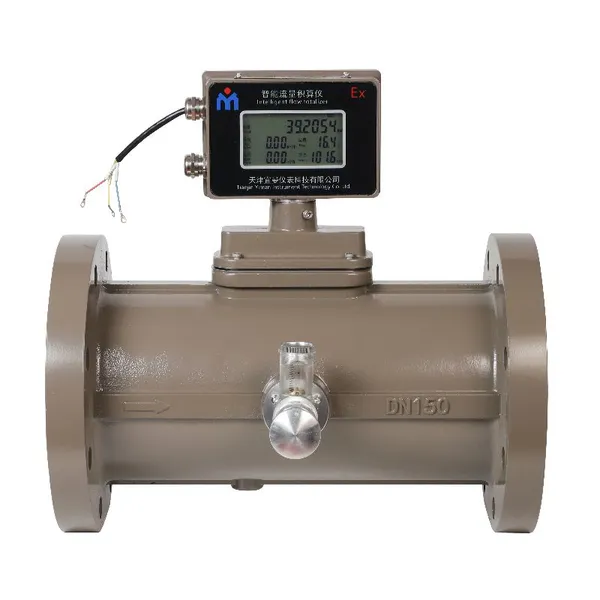

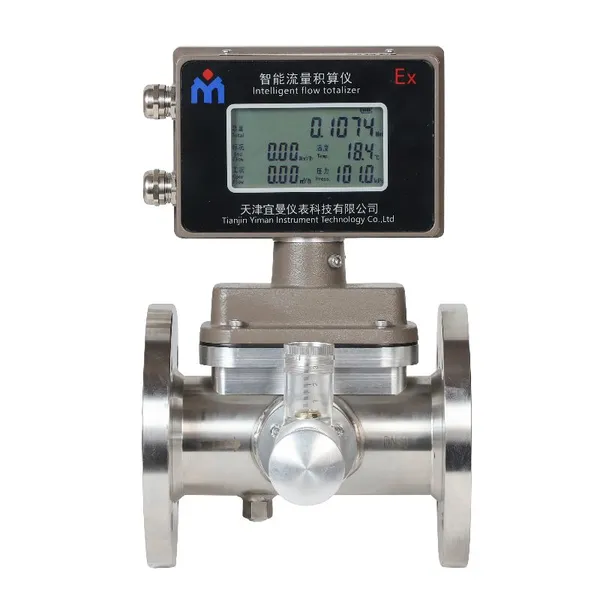

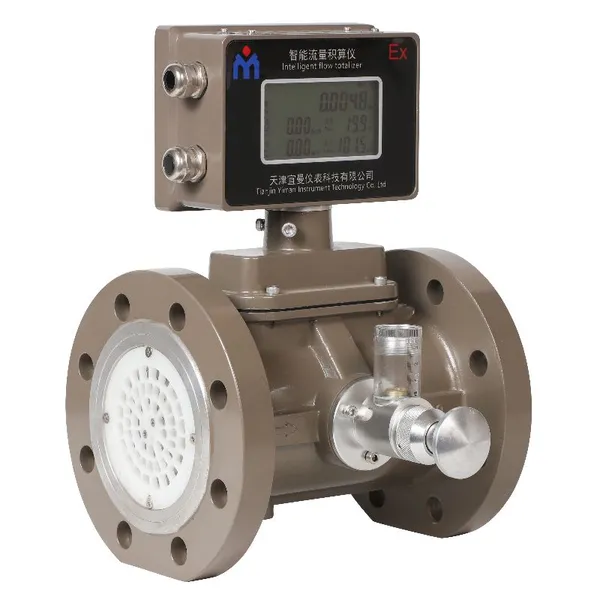

Petroleum and Chemical Industry RS485 Turbine Gas Flowmeter for LPG CNG
1. Product Introduction
LWQ gas turbine flowmeter is a kind of velocity flow meter that accurately measures gas flow. It has the advantages of simple and light structure, high measurement accuracy, good repeatability, wide measurement range, convenient installation and maintenance, etc. It is widely used in the measurement of various gases such as natural gas, city gas, propane, butane, air, nitrogen and other gases in petroleum, chemical industry, metallurgy, aviation, scientific research and other departments and industrial fields. Due to its high precision and good repeatability, the instrument is suitable for trade measurement and industrial process detection.
When the gas turbine flowmeter is measured online, its medium density changes with the change of temperature and pressure. In order to measure accurately, the temperature and pressure of the medium must be tracked and detected at the same time, and the volume flow under different working conditions must be converted into the volume flow under the standard state or the agreed state.
Since the flowmeter integrates temperature, pressure and flow sensors, tracks and detects the medium temperature and pressure on line, and performs automatic compensation and compression factor correction operation, it has excellent low-pressure and high-pressure metering performance, and is especially suitable for the measurement of various single-phase gases, such as natural gas and other gases. According to different requirements of users, the company provides turbine flow meters with different precision grades.
2.Main Features
1)High precision, good repeatability, small pressure loss and good seismic performance.
2) Use high-quality bearings, with small friction resistance, good sealing performance and hand name.
3) Integrating a microprocessor, a flow sensor, a high-precision temperature sensor and a pressure sensor, directly measuring the flow rate,
the temperature and the pressure of the measured gas, and automatically performing flow tracking compensation and compression factor
correction operation.
4) The instrument has pulse signal and analog signal output, and can directly realize centralized collection and real-time management of
computer data through RS485 communication interface or GPRS system.
5) Low power consumption, internal battery power supply or external power supply.
6) It has a real-time data storage function, which can prevent data loss during battery replacement or sudden power failure. In the power
failure state, internal data can be stored permanently.
7) Equipped with real-time data storage function, it can prevent data loss in case of battery replacement or sudden power failure. In the event
of a power outage, internal data can be permanently saved.
8) Historical records are saved, hourly records are saved for 3 months, daily records are saved for 3 years, and monthly records are saved for
10 years; Record the cumulative total amount, standard condition flow rate, operating condition flow rate, temperature, and pressure.
9) Can be used in conjunction with IC card prepaid system for easy trade settlement.
10) Explosion proof products have explosion-proof markings ExibIIBT4 and ExibIIBT6.
3.Technical Specification Table

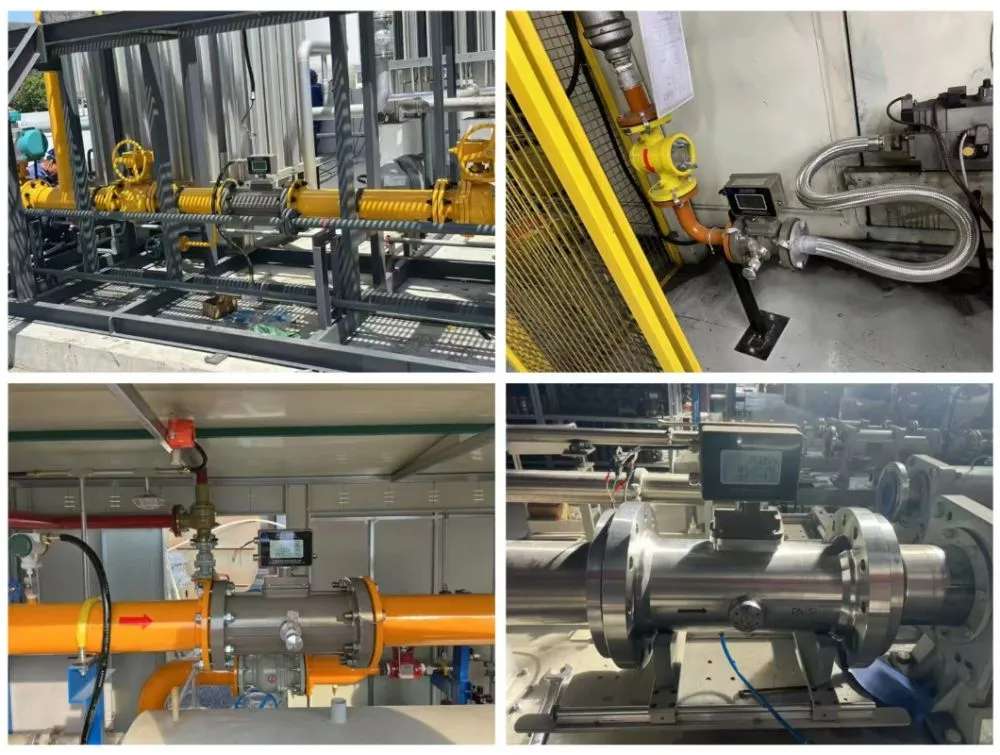

5.Product application
Gas turbine flowmeters play a key role in the following fields due to their high precision, good repeatability, and wide range ratio:
1) Urban gas transmission, distribution and trade settlement
2) Petrochemicals and Industrial Production
3) Gas pipelines and the energy industry
4) Scientific experiments and tests
5) Other fields
· Metallurgical industry: Gas recovery metering for blast furnaces and converters.
· Power industry: Fuel gas metering for gas turbine power plants.

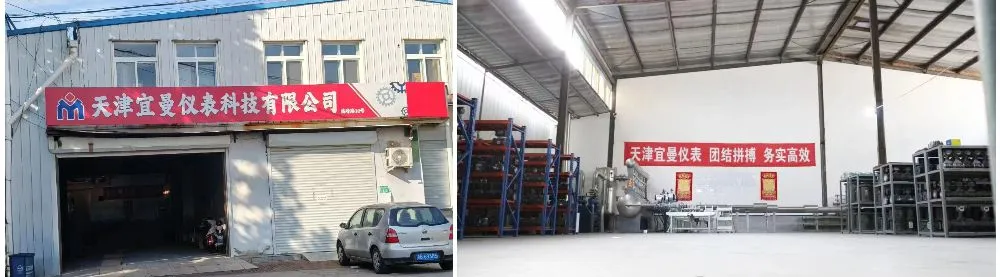

6.Factory workshop
Tianjin Yiman Instrument Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, manufacturing, sales and service of industrial automation instruments. Founded in 2014, the company is committed to ensuring the trust foundation in industrial production processes through innovative and reliable precision measurement technology. We firmly believe that with advanced fluid measurement solutions, we can help our customers achieve operational excellence and sustainable development.
The company's main products include vortex flow meters, gas turbine flowmeters, gas ultrasonic flowmeters, thermal gas mass flowmeters, gas Roots flowmeters, liquid turbine flowmeters, electromagnetic flowmeters, and pressure sensors, etc.
7. Packing
Strong export carton or wooden case. One set /one carton (wooden case).
