Taijia OGM Electronic Diesel Fuel Mechanical Water Flow Meter Diesel Fuel Flow Meter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

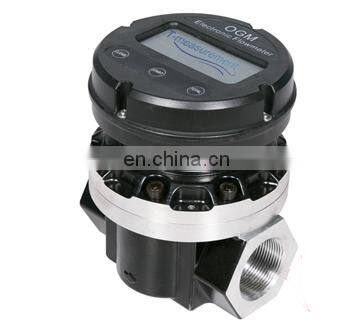

OGM electronic diesel fuel mechanical water flow meter

Introduction Of Oval Gear Flowmeter

Oval Gear Flowmeter is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of large metering range, excellent accuracy, small pressure loss, high viscosity adaptability, capability of measuring high-temperature and high-viscosity liquids, convenient demarcation and simple installation etc.. It is applicable to the calibration and meeting of crude oil, chemical fiber, traffic, commerce, food, medicine and health scientific research and military etc.

Technical parameters

Model	OGM-25	OGM-40	OGM-50
nominal diameter	1"	1.5"	2"
Minimum flow L/min	12	25	30
Maximum flow L/min	120	250	300
Measurement accuracy	±0.5%	±0.5%	±0.5%
Repeatability	±0.3%	±0.3%	±0.3%
Large viscosity	1000CPS	1000CPS	1000CPS
Maximum working pressure	3.4MPa	1.8MPa	1.8MPa
Single count	0.00-9999.9	0.00-9999.9	0.00-9999.9
Total cumulative number	0.00-999999.9	0.00-999999.9	0.00-999999.9

Introduction of Oval Gear Flowmeter(with digital counter)

The product control panel adopts modular design, with complete functions, simple structure, easy operation, etc. it can be widely

used in petroleum, chemical, pharmaceutical, transportation, food industry and commercial. The screen is a digital LCD, the screen is divided into three rows.

Maintenance and maintenance

When the battery voltage is too low, the LCD displays the battery sign on the screen, and the user needs to change the battery. The battery life is too short to cause damage to the flow meter. The design of this meter is about 2 years, but it is recommended that every year, the battery should be removed.

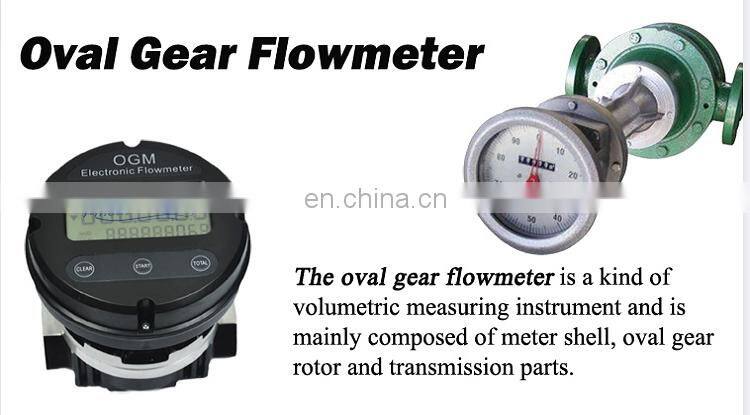

Description of Oval Gear Flowmeter (with mechanical counters)

The oval gear flowmeter is a kind of volumetric measuring instrument and is mainly composed of meter shell, oval gear rotor and transmission parts. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of large metering range, excellent accuracy, small pressure loss, high viscosity adaptability, capability of
measuring high-temperature and high-viscosity liquids, convenient demarcation and simple installation etc..

Technical Parameters of Oval Gear Flowmeter

Accuracy class: class 0.5, class0.2
Medium temperature: -20℃--100℃, added with high temperature radiating cylinder, the temperature can reach 100 ℃-280 ℃

Anti-explosion class of remote display site: E XIAIICT5, DIIBT4.
