Ultrasonic thickness meter's Application
used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
1.Measuring range (metric/imperial): 1.5-200mm,0.06-8inch
2.Operating principle: ULTRASONIC
3.Materials measured: Any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC ,gray cast iron, nodular cast iron and other materials.
4.Lower limit steel pipes: Diameter15x2.0mm, Diameter 20x3.0mm determined by the transducer
5.Calibration block: included
6.Resolution: 0.1mm
7.Accuracy: ±(0.5%n+0.1)
8. Power supply: 4x1.5vaa(UM-3) battery
9. Battery indicator: low battery indicator
10.Operating conditions:≤85%RH
11.Dimensions:160x68x32mm
12. Weight:208g(not including battery)
Optional Accessories
|
5M Diameter 12mm high Temperature probe |
Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature) |
||
6M Diameter 6mm thin Material probe |
Measuring range (steel) :1.0~50.0mm |
|||
Standard delivery |
Main unit |
1 |
||
5M Diameter 8 transducer |
1 |
|||
Instruction manual |
1 |
|||
Carrying case |
B01 |
|||

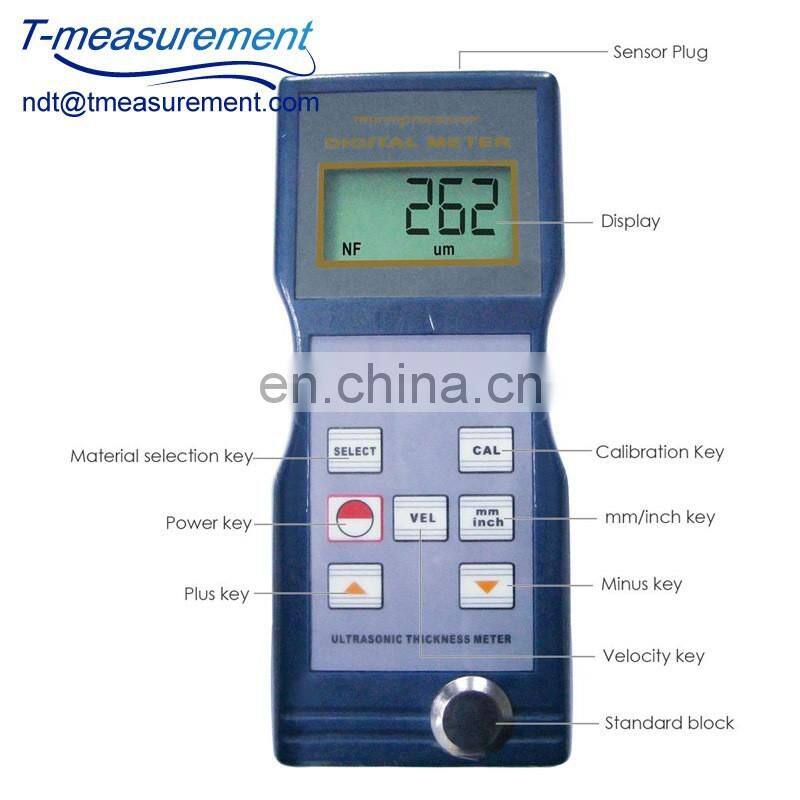

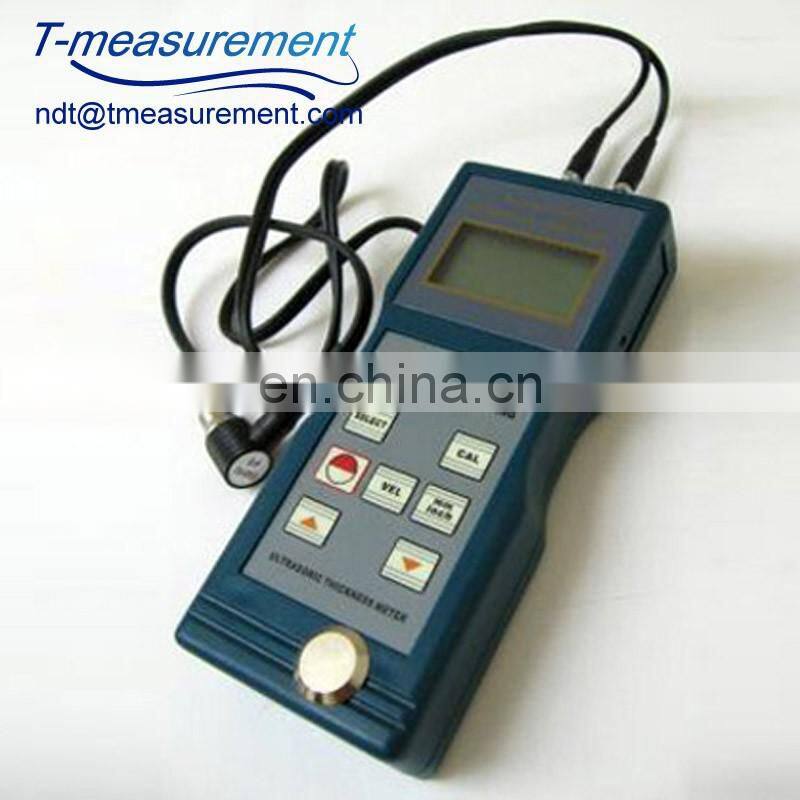

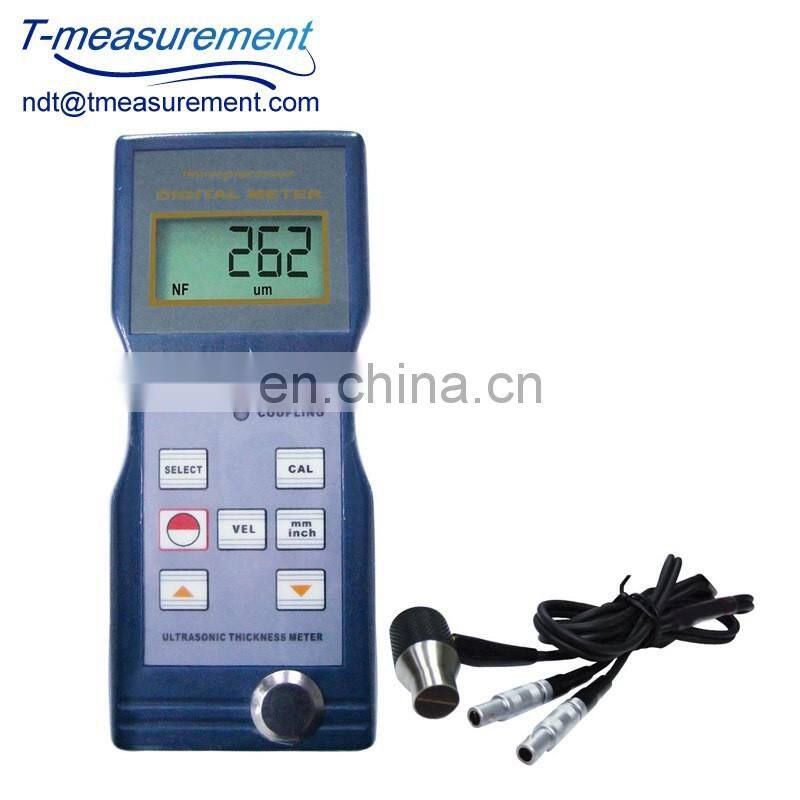

TM-8811 Ultrasonic Thickness Gauge

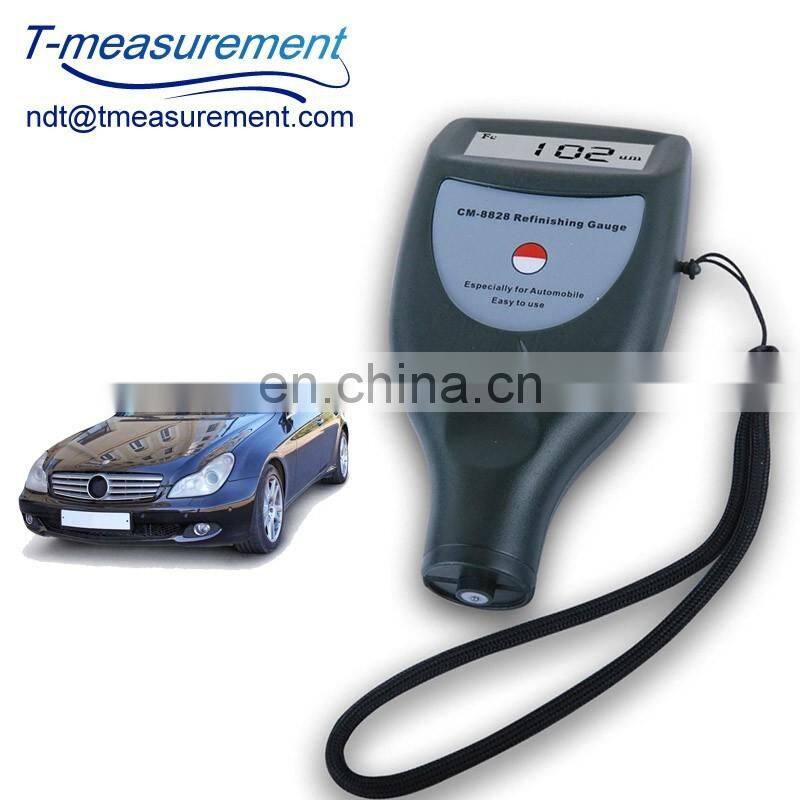

CM-8828 car paint coating thickness gauge

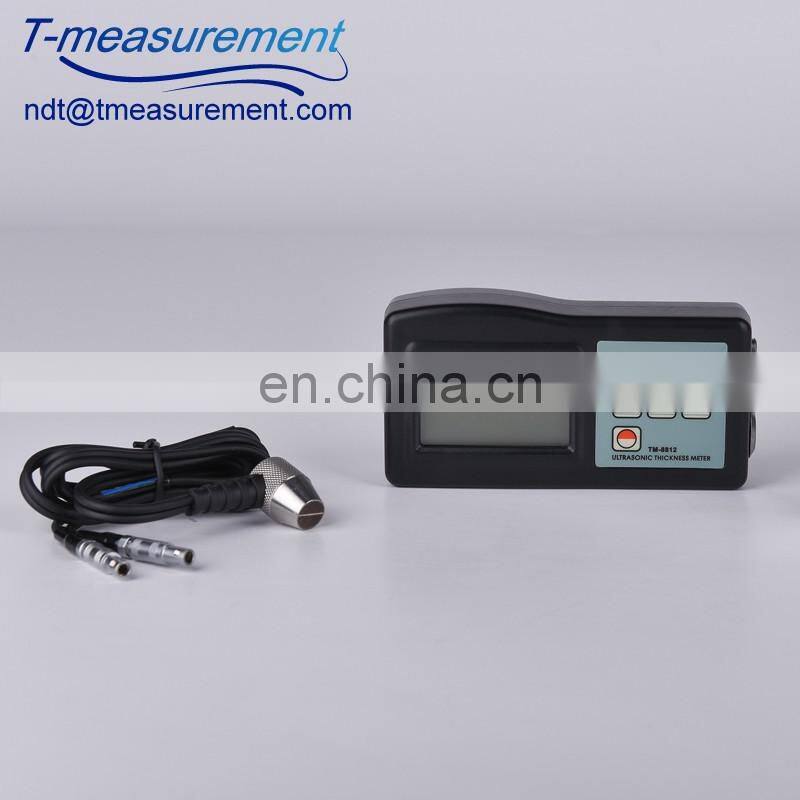

TM-8812 Ultrasonic Thickness Gauge
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
