Product Description

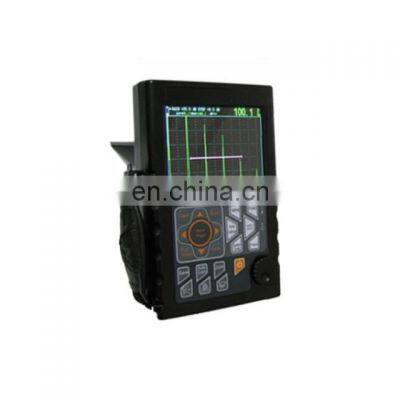

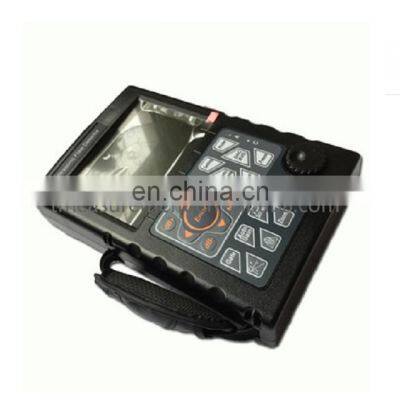

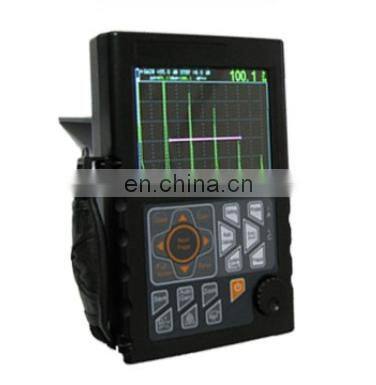

China Manufacturer ultrasonic weld test equipment testing ultrasonic flaw detector
ultrasonic flaw detector
Features
1.Automated calibration of transducer Zero Offset and/or Velocity ;
2.Automated gain,Peak Hold and Peak Memory;
3.Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Diameter);
4.Automated switch three staff gauge ((Depth d,level p,distance s);
5.500 independence setup, any criterion can be input freely, we can work in the scene without test block;
6.Big memory of 1000 A graph.
7.Gate and DAC alarm;Acoustic-Optical alarm;
8.RS232/USB port,communication with pc is easy;
9.The embeded software can be online updated;
10.Li battery, continue working time up to 10 hours;
11.Display freeze;
12.Automated echo degree;
13.Angles and K-value;
14.Lock and unlock function of system parameters;
15.AWS D1.1;
16.Dormancy and screen savers;
17.Electronic clock calendar ;
18.Automated make video of test process and play; Connect the Upan,the length of video is unlimited
19.Two gates setting and alarm indication;
20.High-speed capture and very low noise;
21.DAC,AVG,TCG,B Scan ; Solid metal housing (IP65);
22.Automated calculate the size of the flaw with w ide bottom type in AVG function.
23.6dB DAC functions;
24.Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
25.Powerful pc software and reports can be export to excel;
ultrasonic flaw detector
Technical Data
Range of scanning (mm) |
0~10000 |
D-delay (us) |
-20~+3400 |
P-delay |
0.0~99.99 |
MTLVEL(m/s) |
1000~15000 |
Sensitivity Leavings |
>=62 dB |
Dynamic range |
>=34dB |
Frequency Range (MHz) |
0.5~20 |
Battery |
Li battery 7.4V,4800mAh |
Power adaptor |
Input 100V~240V/50Hz~60Hz Output 9VDC/1.5A |
Working temperature |
-20C~50C |
Working humidity |
20%~90% |
Port type |
BNC or LEMO 001 |
Working mode |
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
ultrasonic flaw detector
ultrasonic flaw detector
List of standard Accessories
Designation |
Quantity |
Main unit |
1 |
1.5A/9V power adaptor |
1 |
probe connecting cable |
2 |
Carrying case |
1 |
Instruction manual |
1 |
Straight probe |
3/4” 2.5MHz (One) |
Angle probe |
8×9 60°4MHz (One) |
ultrasonic flaw detector
Optional Accessories
Designation |
Quantity |
Serial cable |
1 (9 pin) |
Communication software for PC |
1 set |
ultrasonic flaw detector
