Taijia TEM-912 Digital Display Schmidt Concrete Rebound Hammer Test,Concrete Test Hammer Supplier
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia TEM-912 Digital Rebound Schmidt Hammer,Sclerometer Digital Concrete Test Hammer
-
Taijia Concrete Cracking Strain Crack Detector Depth And Width In Concrete Cracked Depth Detector
-
Taijia Ultrasonic/Eddy Current Integrated Flaw Detector Ultrasonic Flaw Detector Suppliers
-
Taijia China Supplier Portable Wood Metal Wall Scanner Detector MD120 Stud Finder Sensor Wall Scanner
-
Taijia NEW Wall Detector Water Electricity Installation Metal Rebar Locator Wall Stud Scanner
-
Taijia UTG21-PY IP65 Infrared Level Sensor, Boiler Water Level Sensor, Capacitance Fuel Level Sensor Measuring Instruments
Product Description
Product Description
TEM-912 digital rebound tester
TEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.
Specification
Standard impact energy | 2.207J |
Rigidity of tension spring | 785.0±40.0(N/m) |
Pointer length: | 20.0±0.2(mm) |
Pointer friction | 0.65±0.15(N) |
Working length of bounce tension spring | 61.5.0±0.3(mm) |
Spherical radius of the end of the bounce rod | 25±1.0(mm) |
Impact Hammer Impact Length | 75±0.3 |
Anvil rate setting | 80±2(Our factory products are controlled between 80-81 |
Error range for digital displayer | <=+-1(the difference between displayer and scale) |
Display | 2.0inch （220×176 pixels ） |
Output Mode | Cable (Update version have WIFI, Bluetooth) |
Storage Capacity | 2000 pcs, 640 thousand data |
Turn off | Automatic turn off without operation |
Power supply | 3.7V Lithium battery, 1050 mA |
Port | USB (update type Bluetooth and WIFI. ) |
Collection Mode | Automatic display and record data |
Size(mm） | 150×62×39 |
Weight（kg） | 0.1kg（include battery） |
Color | Yellow |
Rebound Hammer type | Digital concrete test hammer |
Packing & Delivery

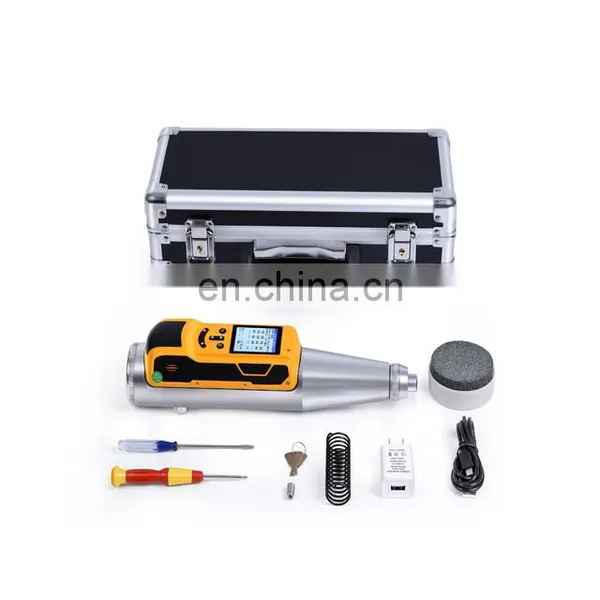

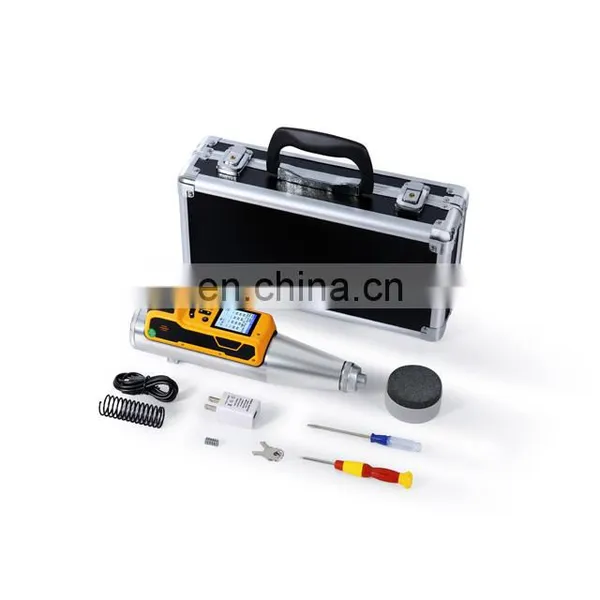

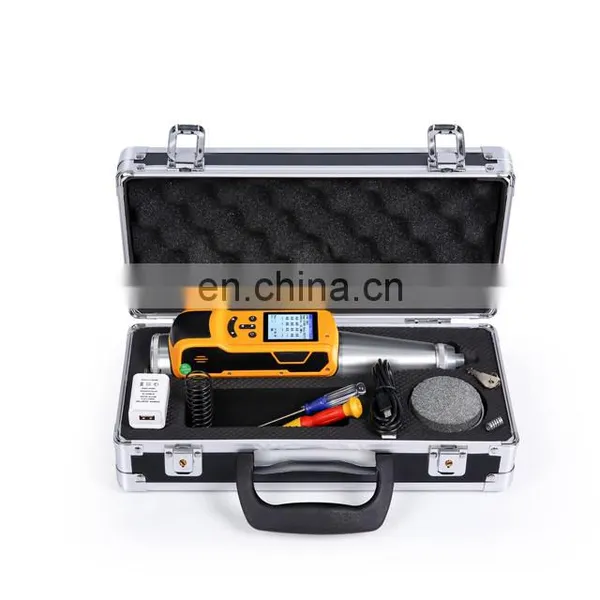

Package for concrete test hammer TEM-912 rebound hammer are carrying bag, And outter package will be carton box.
Testing Video
Company Profile
DALIAN TAIJIA TECHNOLOGY CO.,LTD
1. Experienced company --15 years experience in supplying ultrasonic measurement equipment.
2. MOQ: 1set
3. We accept T/T. Western Union.PayPal & Secure Payment
4. We offer 18 Month's Warranty on all product
5.For more information please contact us by mail ndt at
Or by Skype:tmeasurement04
Or by Mob & Whatsapp:+86 15998577470
Or by Phone: 86-15998577470
6. Service express company:TNT/DHL/FedEX.
