Product Description
NDT testing equipment crack width gauge
BJQF-1 crack width gauge is mainly used for the accurate detection of bridges, tunnels, buildings, concrete pavement, metal surface and so on. The system can automatically capture the image of cracks and real-time display crack images and their width data.The image data can be saved automatically.
BJQF-1 crack width measurement Features
1. Smart detection mode, crack position without adjustment
2. Scale testing method, it is convenient to detect the same crack several times and compare the testing data

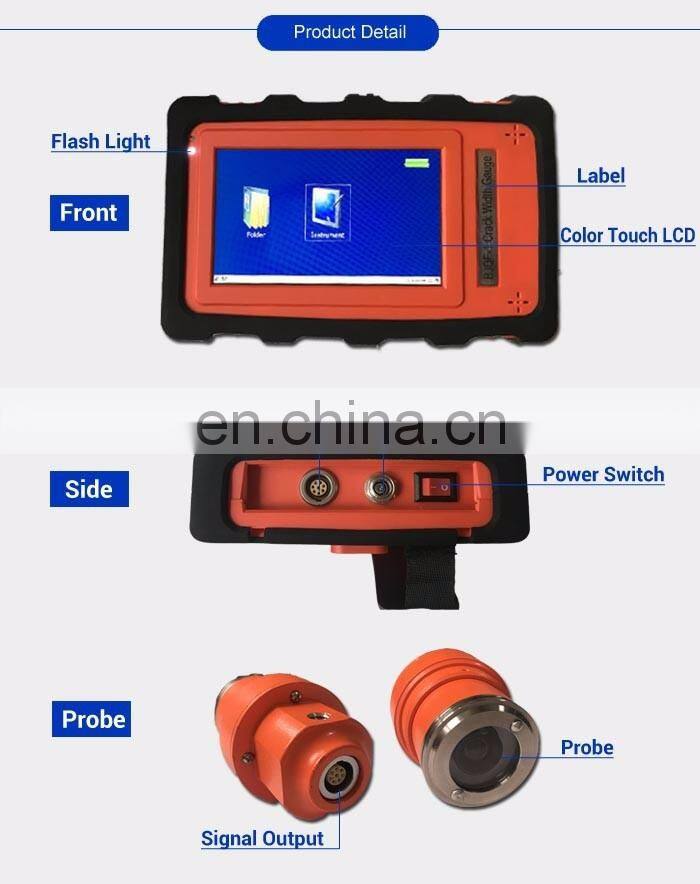

3. Standard probe and high grade probe;
4. Save crack images quickly with the snapshot button;
5. 4GB large-capacity SD card can store more than 100,000 data, powered by lithium batteries;
Item | BJQF-1 crack width gauge |
Hardware Platform | Embedded ARM9 Hardware Platform |
Operating System | WinCe5.0 |
Screen | True Color TFT Touch Screen |
Range | Standard Probe: 0.01mm~6.5mm; |
Accuracy Standard Probe | ≤±0.02mm; |
Image Storage Format | Image Storage Format |
Power Supply | Rechargeable Lithium Battery |
Working Time | ≥28 Hours |
Operating temperature | -10°C~+50°C |
Humidity | ≤90%RH |
Dimensions | 180mmx100mmx50mm |
Interface of crack measureing software running
The software automatically enters intelligent testing mode and shall display the measuring results of current crack.
intelligent testing
Scale testing
Accurate testing

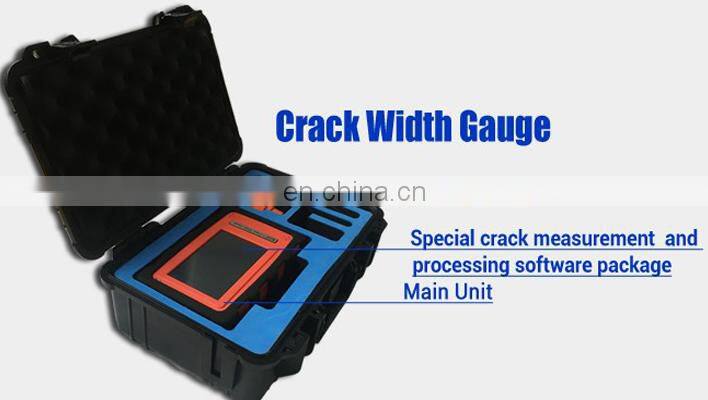

BJQF-1 Crack width gauge | ×1Unit |
Special crack measurement and processing software package | ×1Unit |
Detector Head | ×1 Pair |
Manual | ×1Unit |
ZBL-R630A Rebar scanner
ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium
ZBL-R800 Multifuncational Rebar detector
ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.
HT-225W+ integrity voice report digital concrete rebound hammer
HT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.
measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness
meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
Trade terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
