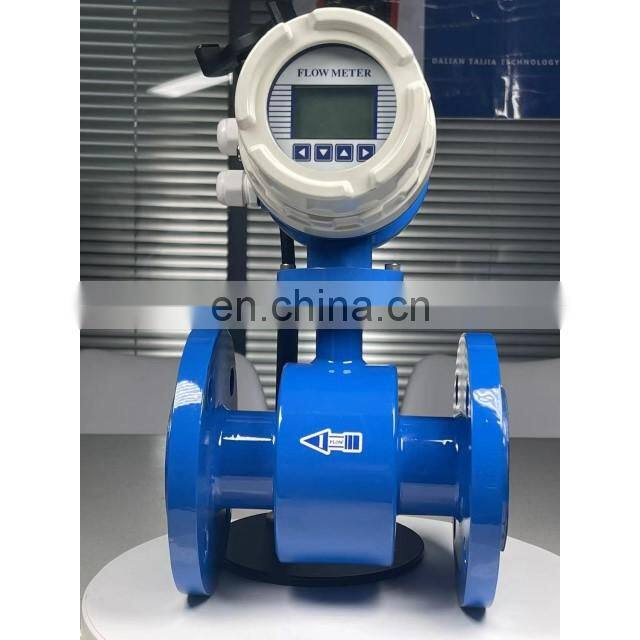

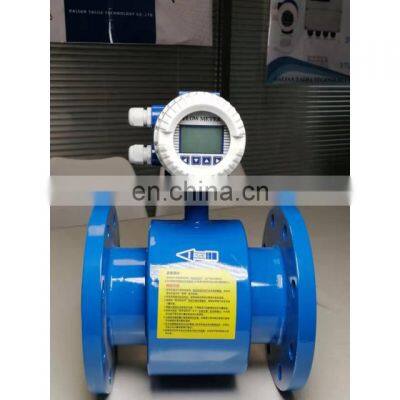

Taijia Electromagnetic Flow Meter Flowmeter dn 450 Insertion Electromagnetic Flowmeter for Effluent Industry

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

DN15

DN50

DN80

Product Description

Feature

1.Highly intelligentized

2.Multi-electrode structure
3.High accuracy
4.No moving parts
5.Wide operating range
6.AC.85V~265V,DC:18v~38V
7.No obstruction to the availiable
8.Variety of flange types availiable

9.Different exicitation frequencies to choose
10.Able to detect two-way
11.Capacitive empty and full pipe measurement technique
12.Lighting protection and anti-jamming circuit design
13.Have EPROM

Applications

1.Water/waste water

2.Chemical industry

3.Food industry

4.Popwer engineering

5.Agriculture

6.Effluent industry

Specification

Product name	Electromagnetic flow meter

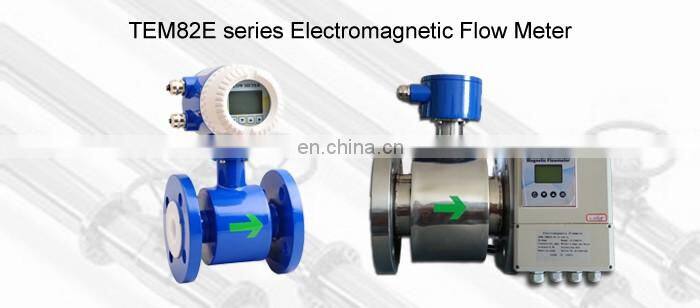

Model Number	TEM82E
Size	DN10~DN2800
Medium	Conductive liquid, slurry
Medium Temperature	E grade∠60°C.H grade∠180°C
Conductivity	≥5 u S/cm
Accuracy	±0.25% . ±0.5%
Repeatability	±0.1% . ±0.17%
Rated Pressure	0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer )

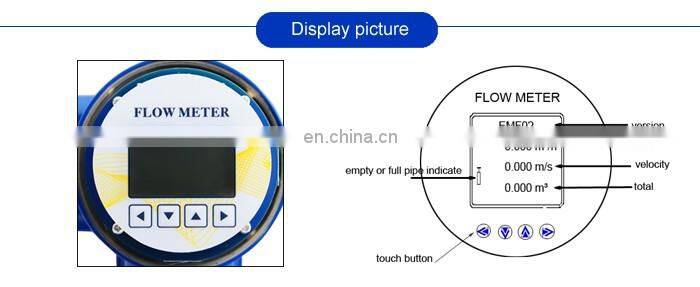

Display	Instantaneous flowrate, total flow, velocity, flowrate percentage with back light
Signal Output	4-20mA current output, pulse output, pulse output, RS-485, Hart.
Power Supply	AC:85V~265V, DC:18V~38V
Converter Type	Integral, remote
Protection Grade	IP67/IP68
Explosion Proof	Ex deibmb IIC T3~6
Velocity	0.05~12m/s ( 0.1~15m/s as required )

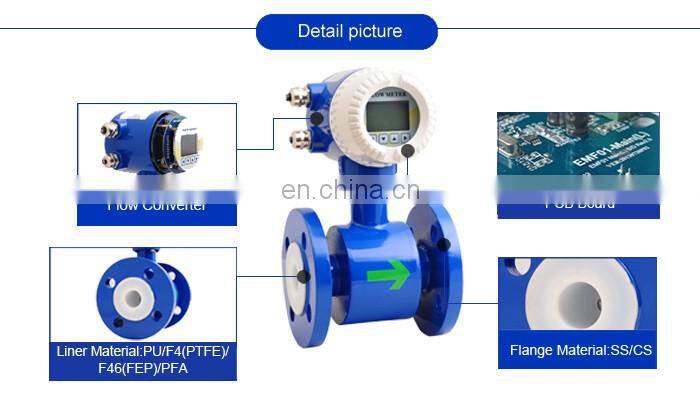

Liner	PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/F46(FEP) (DN10~DN200)/ PFA (DN10~30)
Flowing Direction	Forward, Reverse
Electrode Material	316L, Pt, Ta, Ti, HB, HC, WC
Electrode Number	3~6 pcs
Flange Material	SS/CS
Alarm (normal open)	Empty, excitation, upper/lower limit
Ambient	Temperature: -30~+60°C, Humidity: <90%
Protocal	RS-485/ Hart
