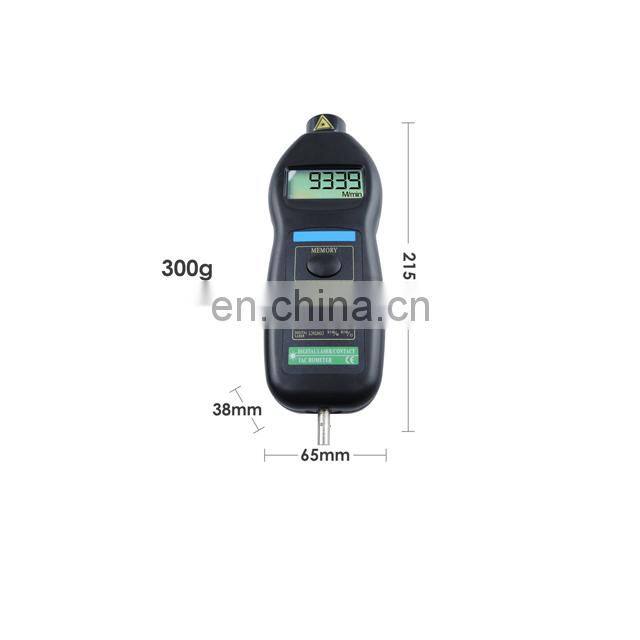

DT-2236 Digital Motorcycle Tachometer

DT-2236 TACHOMETER:

Measuring Range

Laser

2.5 ~ 99,999 r / min

Contact

0.5 ~ 19,999 r / min

Surface Speed

0.05 ~ 1999.9 m / min 0.2 ~ 6560 ft / min

Resolution

Rotative Velocity

0.1 r / min (0.5 ~ 999.9 r / min)

1 r / min (Over 1000 r / min )

Surface Speed

0.01 m / min (0.05 ~ 99.9 m / min)

1 m / min (Over 100 m / min )

Or 0.1 ft / min (0.1 ~ 999.9 ft / min)

1 ft / min (Over 1000 ft / min )

Accuracy

± (0.05% n + 1 d)

Sampling Time

1.0 s (Over 60 r / min )

Test Range Select

Automation

Memory

Max / Min / Last Value

Time Base

Quartz Crystal

Laser Tach Detecting Distance

50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch

Power Consumption

90 mA (Testing)

Operating Temperature

0 ~ 50 °C

Power Supply

4 x 1.5 V AA size (UM-3) battery

Dimensions

215 x 65 x 38 mm

Weight

200 g (Including Batteries

Product package details

Case

Carton as export standard

Outer packing

Carton as export standard

Mini order quantity

1 set

Net weight

334 g (Not Including Batteries)

Warranty TermteEM82E

18 Month's Warranty

Our warranty

1. We offer 18 Month's Warranty on all product free of charge(EVEN EXPIRED FOR WARRANTY PERIOD WE ALSO OFFER YOU FREE,THIS DEPENDS ON the REAL SITUATION)  ,but the user should be responsible for one -way transportation fee from the customer to the factory.

2.We offer instrument installtion for customer,and the charges will be made according the cost ,for  any hardware failure of the instrument ,we recommend customer send back the instrument to us for service,due to the fact that the instrument is made of microprocessors and it will be difficult to perform field maintenance,Before sending back the instrument ,please try to contact us first to make sure what the problem is. for other operational problem.please contact our service department by telephone,fax,or email and internet ,in the most cases,the problem should be solved immediately .
