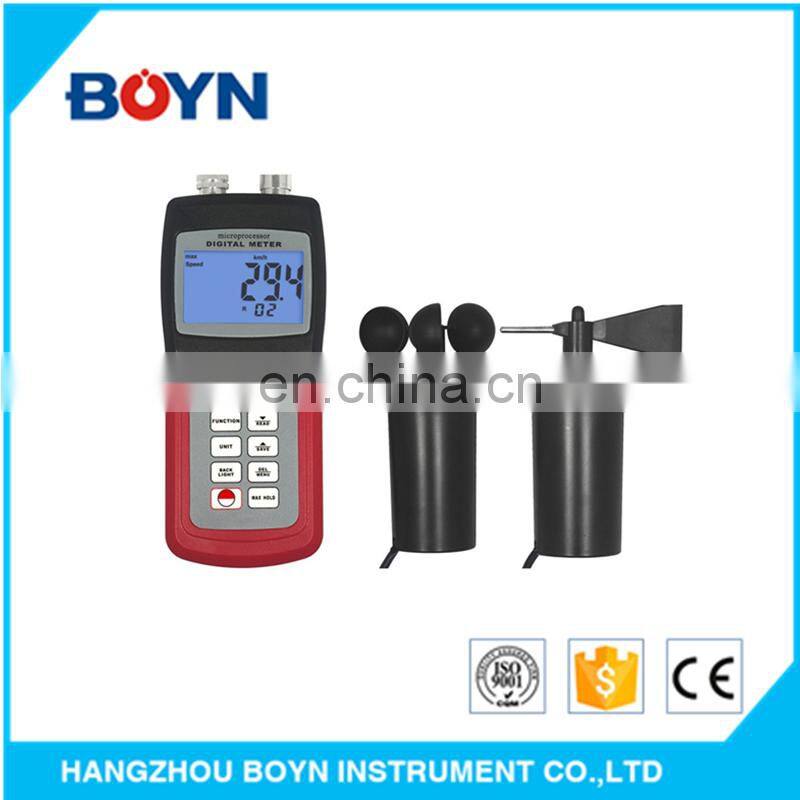

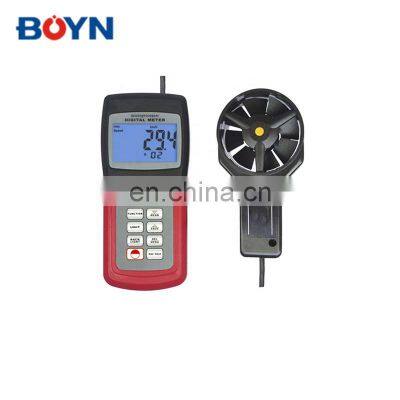

AM-4836C Multifunctional airflow portable anemometer
Spec:
Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
Features
* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use USB/RS-232 data output to connect with PC.
* Provide blue tooth data output choice.
Specifications
|
Model |
AM-4836V |
AM-4836C |
|
|
Display |
LCD |
||
|
Measurement Units |
Air Velocity |
m/s,km/h,ft/min,knots |
|
|
Air Flow |
CMM(m³/min),CFM(ft³/min) |
||
|
Beaufort Scale |
Force |
||
|
Wave Height |
m |
||
|
Direction |
------ |
º from The North Diection |
|
|
Temoerature |
ºC,ºF |
||
|
Data Hold |
Maximum Value |
||
|
Data Memorized |
24 Groups |
||
|
Sampling Rate |
Reading Per Second Approx |
||
|
Sensors |
Air Velocity/Flow Sensor |
Vane Arms with Low-friction Ball Bearing |
3-cup Probe |
|
Direction Probe |
------ |
Low Friction Probe |
|
|
Temperature Sensor |
Precision Thermistor |
||
|
Automatic Power Off |
0~9 Minutes Set by Users |
||
|
Operating Conditions |
Temperature |
0~50ºC(32~122ºF) |
|
|
Humidity |
<80%RH |
||
|
Power Supply |
4x1.5V AAA(UM-4)Battery |
||
|
Dimensions |
Main Unit |
156x67x28 mm(6.1x2.6x1.1 inch) |
|
|
Sensor |
Sensor Head:72mm Diameter |
Velocity Sensor:65x65x115mm |
|
|
------ |
Direction Sensor:86x67x115mm |
||
|
Weight (Including Batteries) |
260g |
375g |
|
|
Standard Accessories |
Main Unit |
||
|
Carrying Case(B04) |
Carrying Case(B10) |
||
|
Operation Manual |
|||
|
Sensor |
Velocity Sensor |
||
|
------ |
Direction Sensor |
||
|
Optional Accessories |
RS-232C Data Cable with Software |
||
|
blue tooth Data Adapter with Software |
|||
Test Range Specifications
|
|
Range |
Resolution |
Accuracy |
|
|
Air Velocity |
m/s(meters/sec) |
0.4~45.0 |
0.1. |
±(2%n+0.1m/s) |
|
km/h(kilo-meters/hour) |
1.4~162.0 |
0.1 |
±(2%n+0.1km/h) |
|
|
Ft/min(feet/minute) |
80~8860 |
0.1 |
±(2%n+1ft/min) |
|
|
Knots(nautical MPH) |
0.8~88.0 |
0.1 |
±(2%n+0.1nots) |
|
|
Air Flow |
CMM(cubic meters/min) |
0~9999 |
0.001~1 |
±(2%n+1m³/min) |
|
CFM(cubic ft/min) |
0~9999 |
0.001~1 |
±(2%n+1ft³/min) |
|
|
Beaufort Scale |
0~12 |
0.1 |
±0.5 |
|
|
Direction ( Only AM - 4836C ) |
0~360° |
22.5° |
±22.5° |
|
|
Wave Height ( Meter ) |
0~14 |
0.1 |
±0.1 |
|
|
Air Temperature |
32~140°F |
0.1°F |
0.9°F |
|
|
0~60°C |
0.1°C |
0.5°C |
||
