Rebar Detection Detector Rebar Scanner Reinforced Concrete Rebar Scanner Distribution
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zc3a Manual Sclerometer Rebound Hammer for Concrete Testing EquipmentNegotiableMOQ: 1 -
China Steel Bar Rebar Locator Detector Concrete Cover MeterNegotiableMOQ: 1
-
China Concrete Sclerometer/Concrete Rebound Test HammerNegotiableMOQ: 1
-
Concrete Rebound Hammer/Sclerometer/Concrete Rebound Test HammerNegotiableMOQ: 1
-
Best Price Advanced Rebar Scanner Locator Detectors Metal ScannerNegotiableMOQ: 1
Product Usage and Features
R800 Integrated Rebar Detector
Usage:
The integrated rebar detector is a portable non-destructive testing instrument, which are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar.
It is characterized in coil structure design, faster speed, higher accuracy, stronger.
It can tests thickness of concrete cover and rebar diameter location.
GTJ-R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
It can tests thickness of concrete cover and rebar diameter location.
GTJ-R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Features:
1.Integrated design, small in size and easy to carry.;
2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time;
3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency;
4.The waveform scanning mode also shows the thickness and spacing of the rebar protective layer;
5. 2.8 inch high resolution color liquid crystal screen;
6. Large TF card storage capacity, intuitive and convenient transmission;
7. PC professional data analysis software, data processing and report generation can be easily completed.
Parameters
Product |
Concrete cover meter rebar locator |
Model |
GTJ-R800 |
Rebar dia. setting range |
6mm~50mm |
Scope of rebar dia. estimation |
φ6mm~φ32mm |
Concrete cover test range |
1~210mm |
Small range |
1mm~80mm |
Large range |
1mm~210mm |
Super Large range |
1mm~240mm |
Max. allowable errors of the Protective Layer Thickness
|
1-80mm (±1mm) |
81~120mm (±2mm) |
|
121~210mm (±4mm) |
|
211~240mm (±6mm) |
|
Profile measurement function |
Support |
Mesh measurement function |
Support |
Waveform measurement function |
Support |
probe self-calibration |
Support |
Host parameters
|
Screen size: 2.8 inch Resolution: 240*320 |
Volume: 220*93*110mm Weight:0.6KG |
|
Data transmission mode |
TF card; wireless cloud transmission (potional) |
Power suppy |
Lithium battery |
Storage capacity |
2000 Components *1000 Measuring points |
Working environment |
Temperature: -10℃ ~ +40℃ Humidity：≤ 90%RH |
Detailed Images

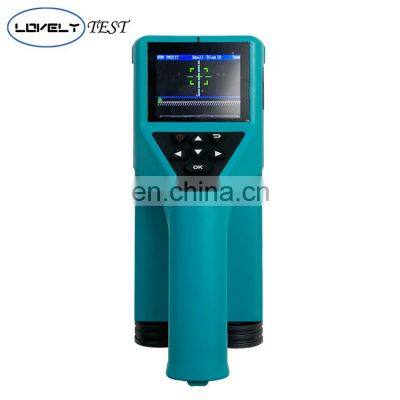

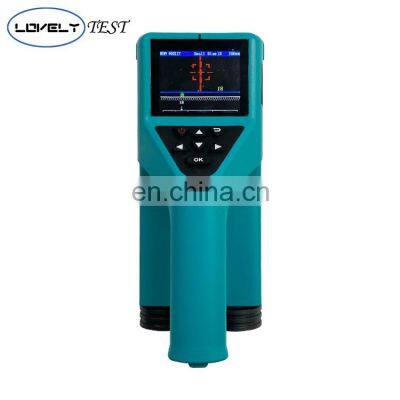

GTJ-R800 Integrated Rebar Scanner
It can tests thickness of concrete cover and rebar diameter location.
It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Application
Contact US
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Q1:Are you a factory or trading company?
A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.
Q2:Where is the nearest loading port?
A:Qingdao port or Tianjin port.
Q3:What’s the MOQ of the product?
A: One set.
Q4:Did your factory pass the ISO 9001?
A: YES.
Q5:How long is the production cycle after ordering?
A:Based on the order. Generally it is about 3-10 days.
Q6:What is the payment method?
A:T/T payment, West Union, L/C payment ect.
Q7: Do you support customizing service?
A: Yes, we could customize the out package, machine's color, Logo and Voltage as request.
