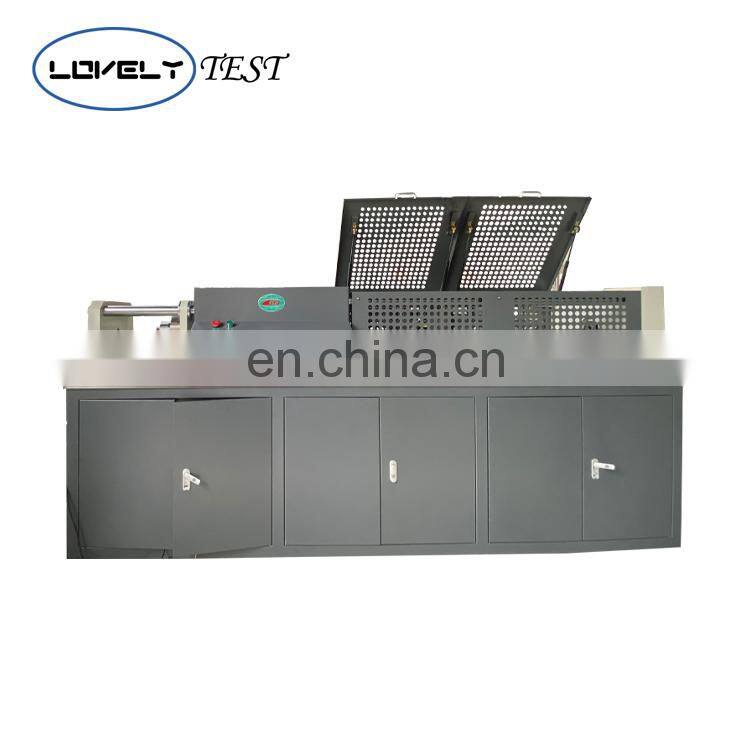

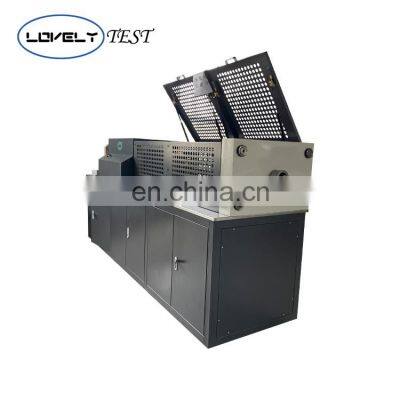

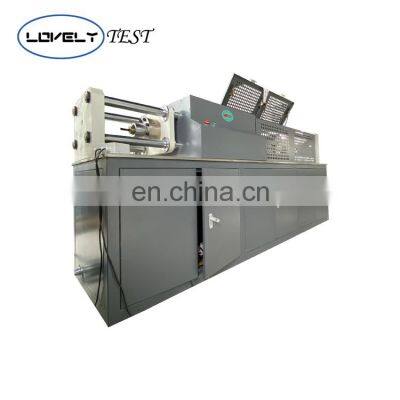

WSC-300 Microcomputer Controlled Steel Strand Stress Relaxation Tester
Product Description
Microcomputer Controlled Steel Strand Stress Relaxation Tester is used for tensile stress relaxation test of prestressed steel wire, steel strand, PC steel bar and metal material; isothermal stress relaxation test; stress relaxation test period ≥1000h.
The isothermal stress relaxation test is to maintain the sample from the initial force F0, determine the change in force on the sample; stress relaxation test period 100h ~ 1000h can be set. Relaxation rate, dedicated stress relaxation tester software, which can perform functions such as uniform rate loading, force retention, and strain retention.
Product Features
1. | It has four-pillar horizontal space structure. |
2. | The speed control system adopts servo motor and speed governor which is stable and reliable performance. It has protection devices such as overcurrent, overvoltage and overload. |
3. | The transmission part adopts arc synchronous toothed belt, precision ball screw auxiliary transmission, stable transmission, low noise and high transmission efficiency. |
Parameters
Product name | WSC-300 Microcomputer Controlled Steel Strand Stress Relaxation Tester |
Maximum relaxation test force | 300KN |
Relative error of indication | ≤±1% |
Effective measurement range | 0.4%-100%(Full range without binning) |
Relative error of test force indication | ≤±0.5% |
Slack load loading rate | 0.1~10kN/S |
Screw movement adjustment rate | 0.01-150mm/min |
Steel strand loose deformation gauge distance | 200mm |
Effective measurement space | 1300mm |
Effective gauge length | ≤1200mm(Φ60) |
Deformation measurement resolution | 0.01mm |
Steel strand nominal diameter（mm） | ≤15.24 |
Stress relaxation test procedure | Force closed loop,deformation closed loop control |
Mainframe dimensions | 2590*700*1150mm |
Power | 220V、50Hz、3kW |
Weight | 1500kg |
