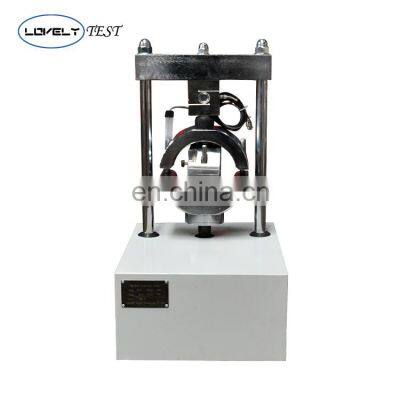

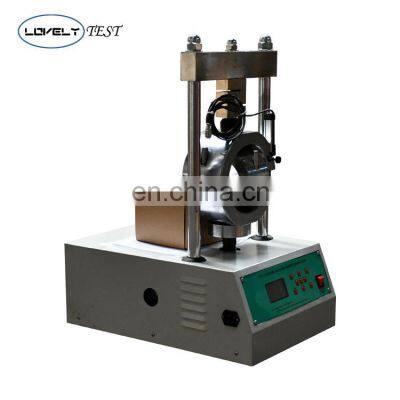

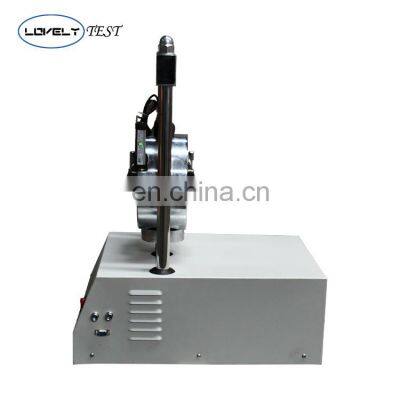

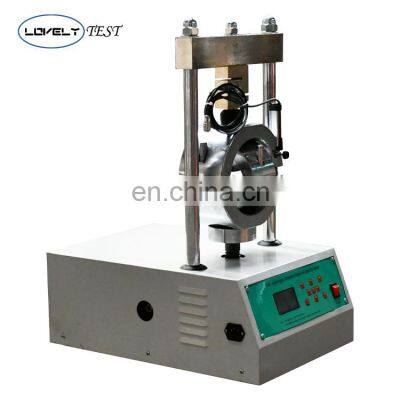

Digital Marshall Stability Tester Marshall Test Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Laboratory Digital Bitumen Softening Point ApparatusNegotiableMOQ: 1 -
Penetration Grade Bitumen/Penetration Value of BitumenNegotiableMOQ: 1
-
Bitumen Penetration Test/PENETRATION OF BITUMINOUS MATERIALSNegotiableMOQ: 1
-
Bitumen Penetration Test for SaleNegotiableMOQ: 1
-
Digital Asphalt Penetration Apparatus for LaboratoryNegotiableMOQ: 1
Product Usage and Features
Alsphalt Marshall Stability Tester
Application:
The Marshall stability tester is suitable for measuring the thermal stability and resistance to plastic deformation of asphalt mixture-stability and flow value. Provide an accurate basis for the design of the composition ratio of the asphalt mixture.
The Marshall stability tester is suitable for measuring the thermal stability and resistance to plastic deformation of asphalt mixture-stability and flow value. Provide an accurate basis for the design of the composition ratio of the asphalt mixture.
Parameters
Product Name |
Marshall asphalt stability tester |
The vertical ascent speed of the test instrument tray |
50±5mm/min |
The maximum moving distance of the tester tray |
70mm |
Working range of force value |
0-50.00kN |
Working range of flow value |
0-20.00mm |
Measuring accuracy of force measuring device |
±0.1kN |
The measuring accuracy of the flow value measuring device |
0.01mm |
Motor specifications |
220V, 0.37KW, 1440rpm, single-phase or customized |
Maximum rated load |
50KN |
Working conditions |
Ambient temperature: 0℃-60℃ Relative temperature: <85% |
Size |
470x590x780mm |
Weight |
75KG |
Product Details
Models for 220-240V 50-60 Hz, 1 ph.
* Load Cell, 50 kN
* Penetration Piston for Marshall Stability Test
* Displacement Transducer 20 x 0.01 mm with holder
* Penetration Piston for Marshall Stability Test
* Displacement Transducer 20 x 0.01 mm with holder
