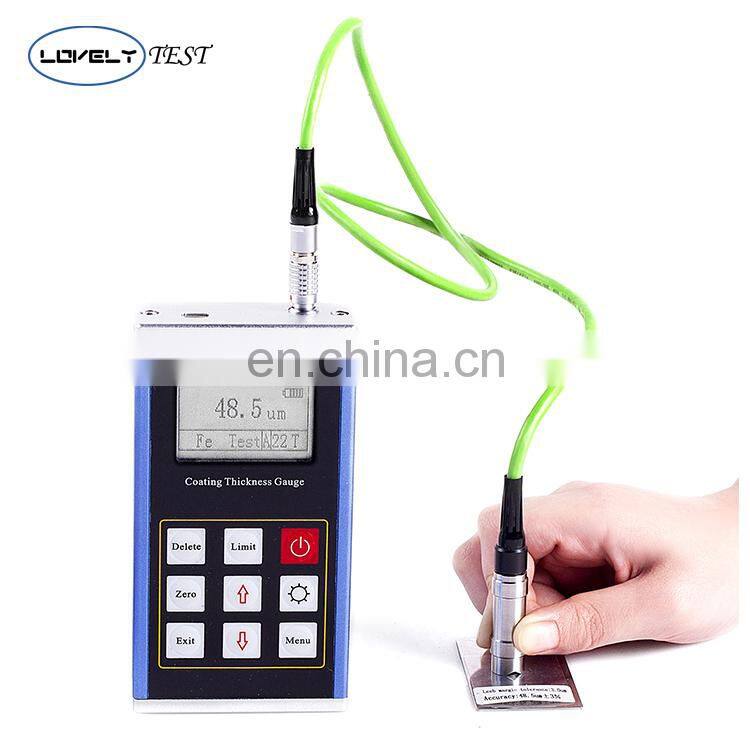

L230 Coating Thickness Gauge
Usage Overview
Coating thickness gauges are widely used in the fields of electroplating, anticorrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, and commodity inspection. It can be used not only in the laboratory but also on the engineering site. Configure different probes, suitable for different occasions. It is an essential instrument in the nondestructive testing industry.
FUNCTION
The magnetic measurement method can be used to detect the thickness of the non-magnetic coating on the magnetic metal substrate
(such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steel)
1. Full English menu;
2. Two working methods;
3. Data deletion function;
4. Automatically alarm the measured value outside the limit;
5. Power supply undervoltage indication;
6. Manual and automatic shutdown modes
7. Two measurement methods;
8. Can store 500 measured values;
9. The limit can be set.
(such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steel)
1. Full English menu;
2. Two working methods;
3. Data deletion function;
4. Automatically alarm the measured value outside the limit;
5. Power supply undervoltage indication;
6. Manual and automatic shutdown modes
7. Two measurement methods;
8. Can store 500 measured values;
9. The limit can be set.
Product Description
Specification
Model | L230 | ||
Probe type | F1 | ||
Working principle | Magetic induction | ||
Measuring range | 0~1250μm | ||
Low resolution | 0.1μm | ||
Indication error | One point calibration | ±（3% H + 1） | |
Two-point calibration | ± [(1 ~ 3%) H + 1] | ||
Test Conditions | Minimum radius of curvature mm | Convex 1.5, concave 9 | |
Minimum area diameter mm | Φ7 | ||
Basic critical thickness mm | 0.5 | ||
working environment | temperature | 0 ~ 40 ℃ | |
humidity | 20% ~ 90% | ||
power supply | AA type alkaline battery 1.5V two | ||
shell | metal shell | ||
Dimensions | 150 × 55.5 × 23mm (host) | ||
weight | F1 / 320g | ||
Standard configuration | Host, standard test piece, substrate, AA type alkaline battery, probe F1 | ||

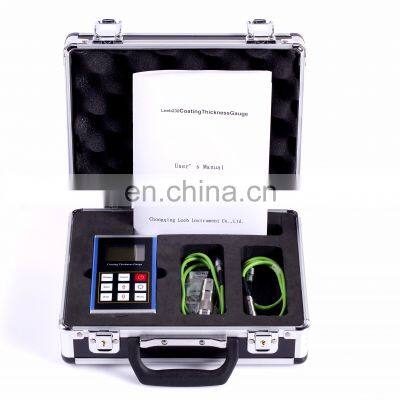

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
