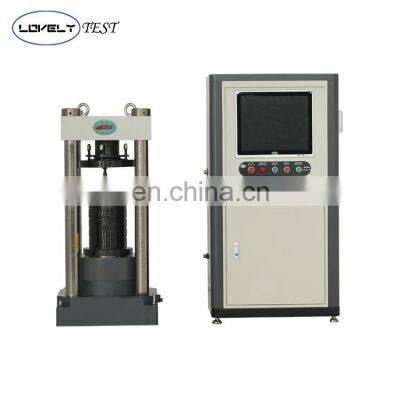

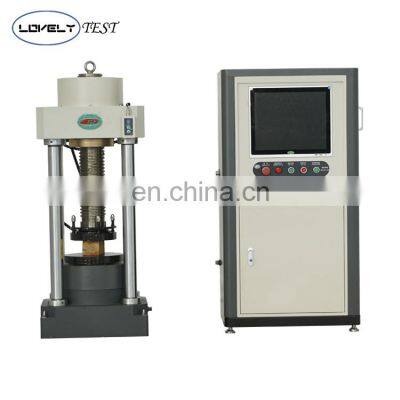

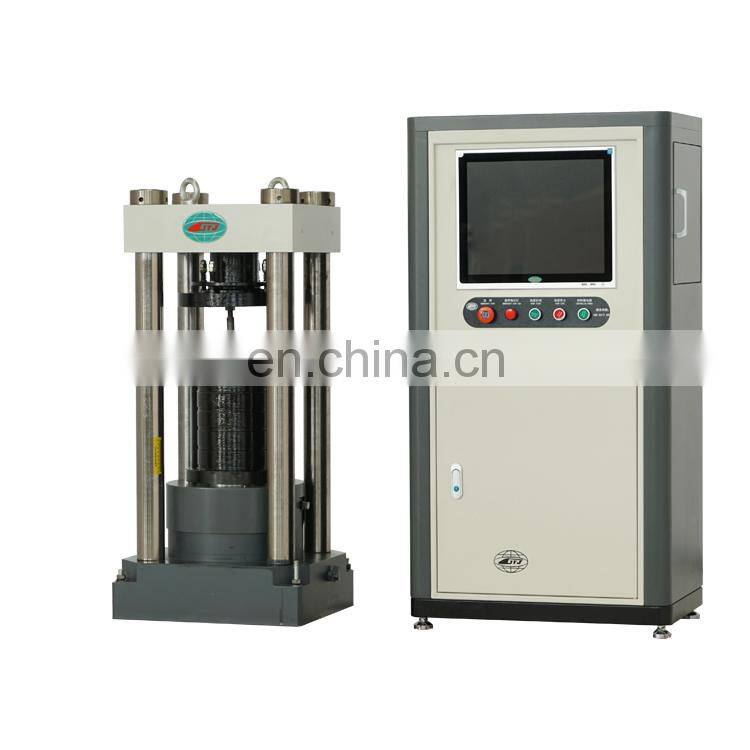

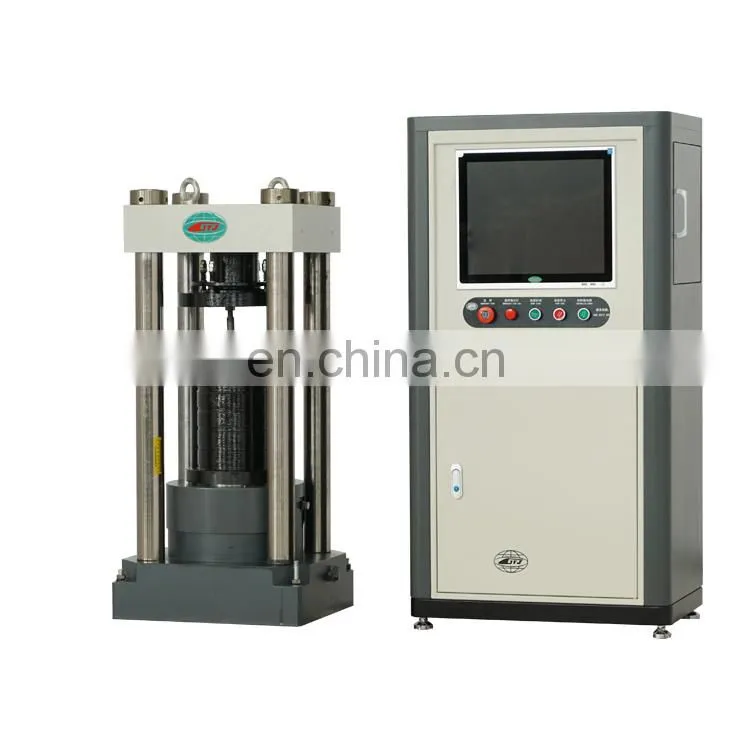

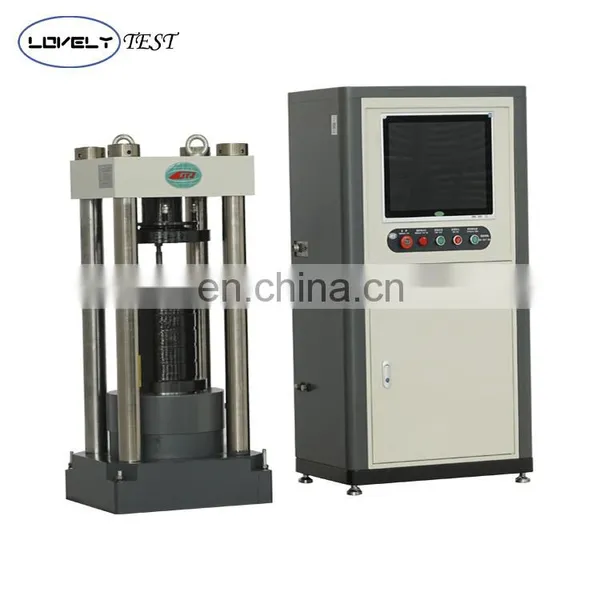

Microcomputer Control Electronic Servo Universal Pressure Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2000kN Cement Brick Compressive Strength Testing MachineNegotiableMOQ: 1 -
Manual Adjustment Compression Testing Machine 2000knNegotiableMOQ: 1
-
Digital Compression Test Machine For Cube TestingNegotiableMOQ: 1
-
2000kN Concrete Compression Testing Machine PriceNegotiableMOQ: 1
-
1000kn/2000kn/3000kn Digital Concrete Compressive Compression MachineNegotiableMOQ: 1
Microcomputer control electronic servo universal pressure testing machine
Usage Overview
The series of test machines are hydraulically powered,using electro-hydraulic servo control technology rock,mortar,brick,concrete
and other building materials to test the mechanical properties of compression,showing the loading force value,loading speed and
loading curve.the test data is automatically processed,stored,and printed.
and other building materials to test the mechanical properties of compression,showing the loading force value,loading speed and
loading curve.the test data is automatically processed,stored,and printed.
Product Description
Specification

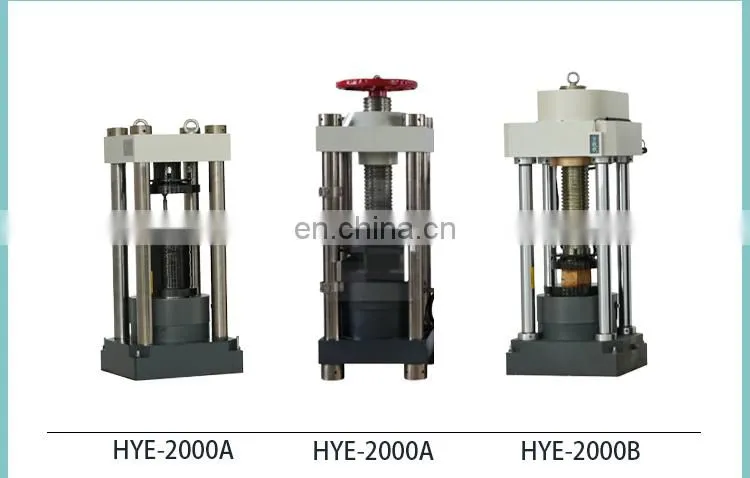

Maximum test force(KN) |
HYE-2000 |
HYE-2000A |
HYE-2000B |
||
Test accuracy |
Level 1 |
Level 1 |
Level 1 |
||
Space adjustment method |
Pad adjustment |
Manual screw sdjustment |
Electric screw adjustment |
||
Pison stroke |
80 |
80 |
80 |
||
Sensor type |
Oil pressure |
Oil pressure |
Oil pressure |
||
Maximum spacing between two pressure plates(mm) |
400 |
400 |
400 |
||
Upper platen size(mm) |
Φ225 |
240*240 |
240*240 |
||
Lower platen size(mm) |
Φ295 |
350*260 |
350*260 |
||
Motor power(KW) |
1 |
1 |
1 |
||
Mainframe dimensions(mm) |
900*400*1250 |
985*600*800 |
985*600*800 |
||
Control cabinet dimensions (mm) |
650*450*1250 |
650*450*1250 |
650*450*1250 |
||
Machine weight(kg） |
920 |
900 |
910 |
||
Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
