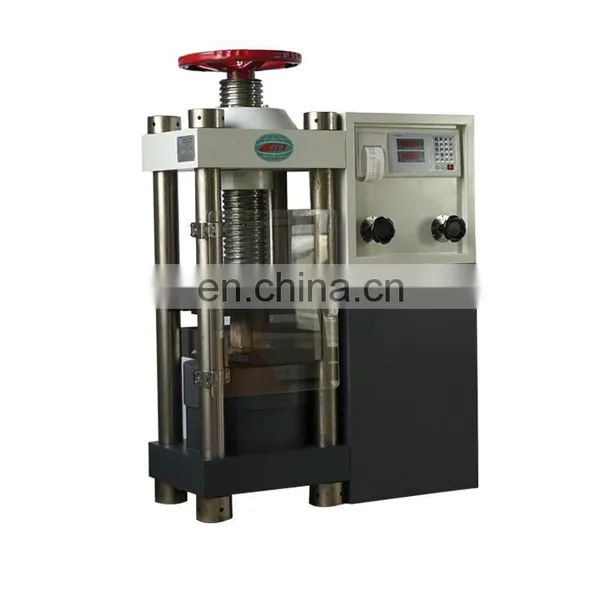

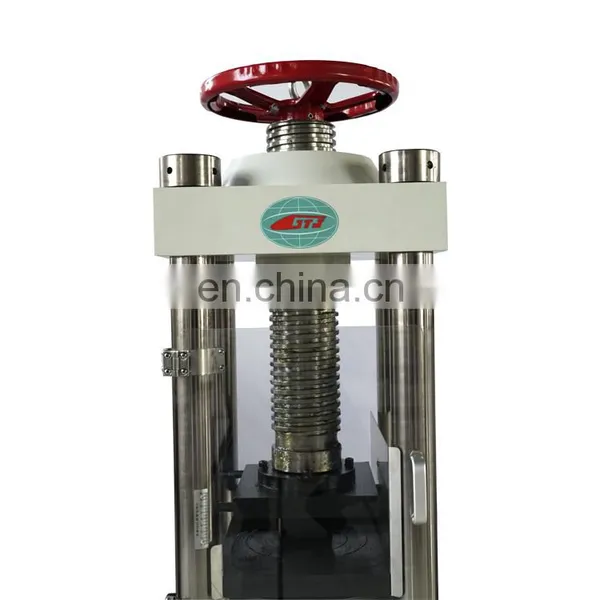

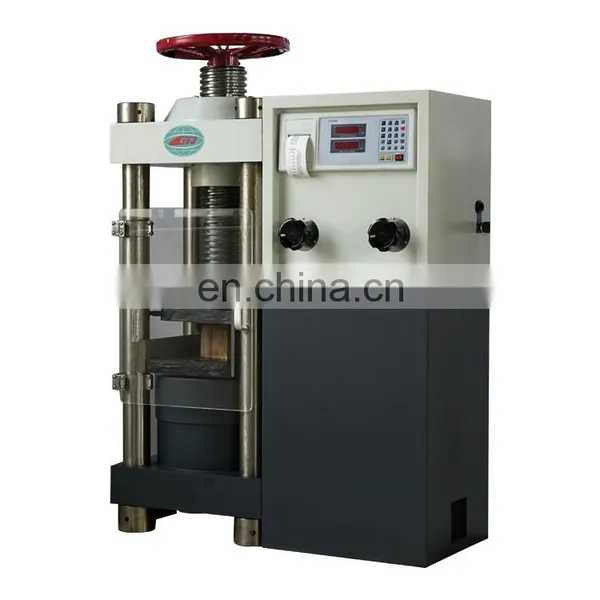

DYE-2000A Electro Hydraulic Compression Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Testing Machine Compression Test 2000KN for SalesNegotiableMOQ: 1 -
Hot Sale Hand Operated Compression Testing Digital Ctm MachineNegotiableMOQ: 1
-
2000KN Digital Compression Testing Equipment CTM / Concrete Cube Testing Machine MachineNegotiableMOQ: 1
-
Microcomputer Control Electronic Servo Universal Pressure Testing MachineNegotiableMOQ: 1
-
2000kN Cement Brick Compressive Strength Testing MachineNegotiableMOQ: 1
Product Description
The series of testing machines are powdered by hydraulic pressure. Manual control technology is used to test the mechanical properties of rock, mortar, brick, concrete and other building materials. It shows the loading force, loading speed etc. Test data are automatically processed, stored and printed. This series of testing machine takes hydraulic pressure as power and manual loading to test the compressive mechanical properties of concrete, brick, stone and other building materials. It can display loading force value and loading speed value digitally. It can be configured with computer to display loading curve and carry out data collection and processing.
Advantages
1.Limit Position: Avoid sensor damaged due to the moving distance is too large
2.Outer Cover: All aluminum alloy, beautiful water-proof and rust-proof.
3.Touch industrial computer: Increase productivity with a full touch screen
4.Computer Control: According user required format, using EXCEL or WORD to compile reports and print bulk.
5.Tensile Fixture: It can change according customers’ requirements.
6.Safety Mask: High- Strength protective cover to protect personnel.
1.The machine adopts high precision sensor and digital display.
2.The machine can store, consult and print the experimental results, and it can work without debugging.

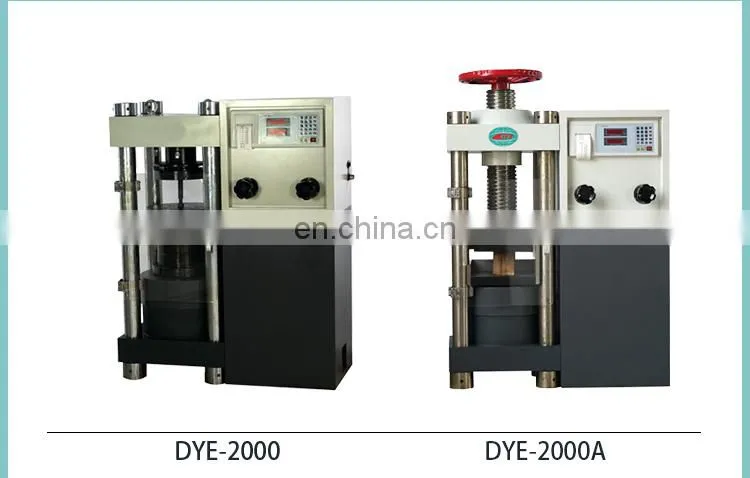

Mode No |
DYE-2000 |
DYE-2000A |
Product name
|

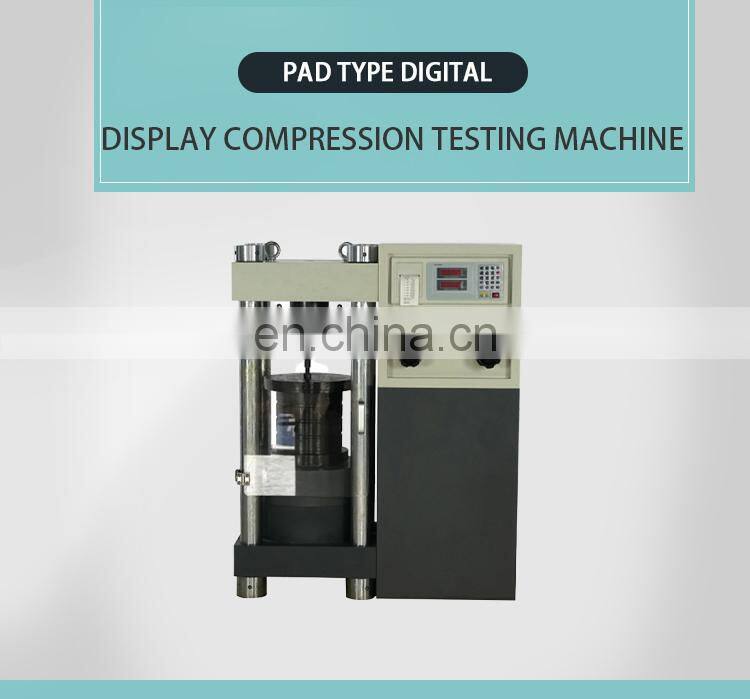

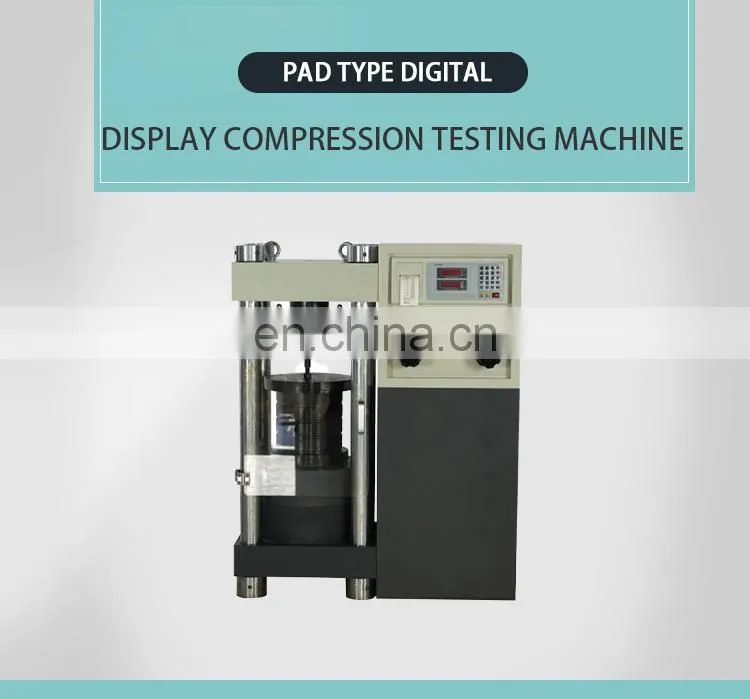

Pad type digital compression testing machine |
Manual screw digital compression testing machine |
Maximum test force |
2000KN |
2000KN |
Test accuracy |
Level 1 |
Level 1 |
Space adjustment method |
Pad adjustment |
Manual screw adjustment |
Piston stroke |
80mm |
80mm |
Sensor type |
Oil pressure |
Oil pressure |
Maximum spacing between two pressure plates |
350mm |
350mm |
Upper platen size |
225 |
240*240 |
Lower platen size |
295 |
350*260 |
Motor power |
0.75 |
0.75 |
Mainframe dimensions |
900*400*1250 |
985*600*800 |
Mavhine weight |
920 |
900 |

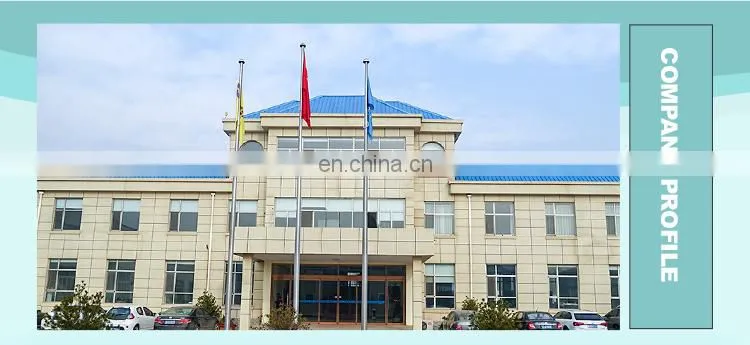

Company Profile
Cangzhou Lovely Group Co., Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!
Factory Workshop
Hot Sales
Certifications
Customer Photos
Packing and Shipping
FAQ
Q1:Are you a factory or trading company?
A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port?
A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
Q5:Do you have an OEM service?
A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?
A:General it is about 7-20 days.
Q7:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
