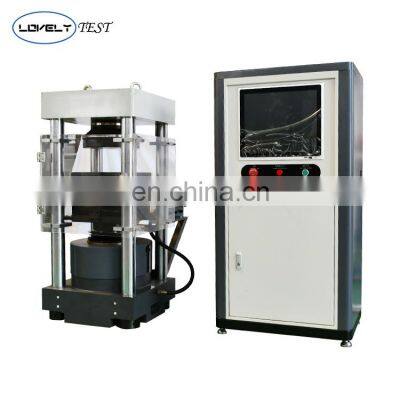

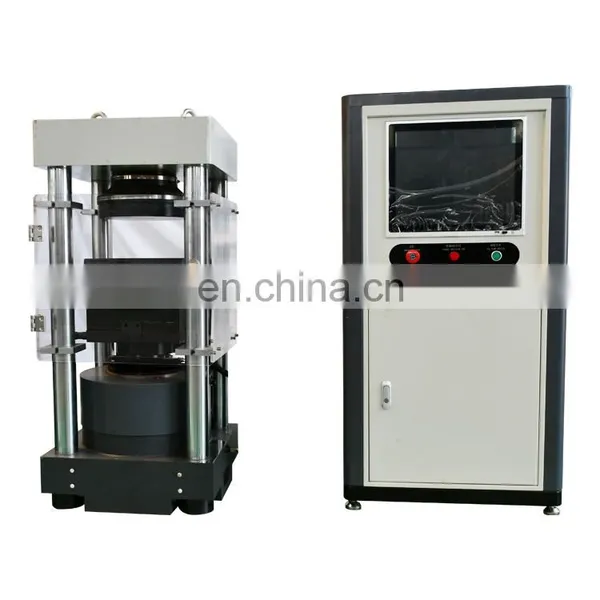

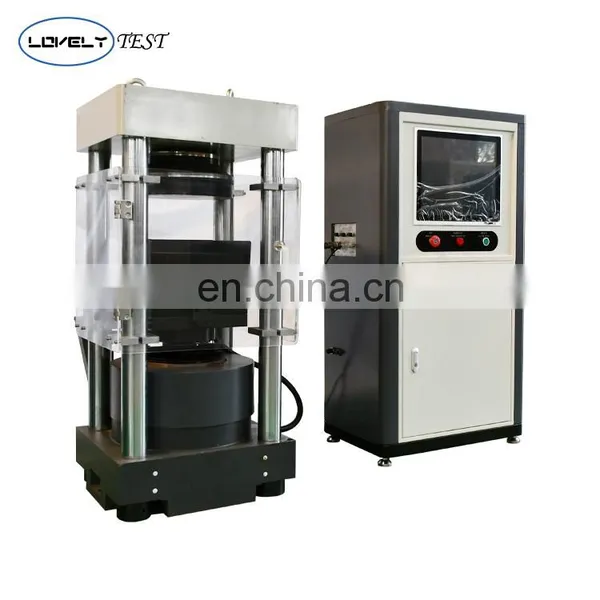

2000kn Automatic Concrete Compression/Elastic Modulus Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HYE-2000T Automatic Concrete Compression Testing Machine/ Elastic Modulus TestNegotiableMOQ: 1 -
CTM Accessories Digital PanelNegotiableMOQ: 1
-
Digital Compression Test Machine for ConcreteNegotiableMOQ: 1
-
2000KN Concrete Pressure Testing Machine Digital Display Concrete Compression Testing Machine CTMNegotiableMOQ: 1
-
Electric Digital Display Compression Testing Machine 3000KN Manufacturer PriceNegotiableMOQ: 1
Product Usage and Features
HYE-2000T Electro-hydraulic Servo Compression Testing Machine
1. Equipment introduction
This series of testing machines are suitable for concrete and rock compressive strength tests, equipped with appropriate fixtures and measuring devices to meet the concrete split tensile test, flexural test, and static elastic modulus test.
2. Product features
◎ This machine is specially designed for concrete elastic modulus test. It is equipped with professional elastic modulus analysis software and automatic data collection kit. The test process is simple and efficient;
◎ This machine adopts a large oil cylinder wide body design, which has a large test space, while reducing the internal pressure of the hydraulic system, making the test process safer and more reliable;
◎ This machine uses a combination of servo motor and Mazu gear pump to load, the test process is quiet, and the test data is accurate;
◎ This machine adopts a servo control system, which can realize constant rate control, load holding control, low cycle control, stepless speed regulation, and online adjustment of PID parameters;
◎This machine can be used for compressive tests of concrete test blocks, refractory bricks and other blocks, realizing one machine for multiple purposes;
◎Adopting block slide rail structure design, free switching between concrete compression test and elastic modulus test;
◎The Chinese and English interface can be switched freely, making it more convenient and faster for foreign customers to use.
3. Applicable standards
GBT、ISO、ASTM、DIN、JIS etc.
Parameters
Name |
compression testing machine |
Model |
HYE-2000D |
Max. Test Force (KN) |
2000 KN |
Test accuracy |
Level 1/0.5 |
Force Value Display Range |
1%-100%FS |
Force Value Display Error |
within ±1% |
Framework Type |
4 columns |
Compressed space |
320 mm |
Piston Stroke |
80 mm |
Piston Displacement Velocity |
0-60 mm/min |
UpperPressure plate size |
φ300mm |
Lower Pressure plate size |
300*300mm |
Effective Distance Between Columns |
350 mm |
Host Size |
545*900*1260 mm |
Control Cabinet Size |
654*450*1300 mm |
Total Weight |
1300kg |
