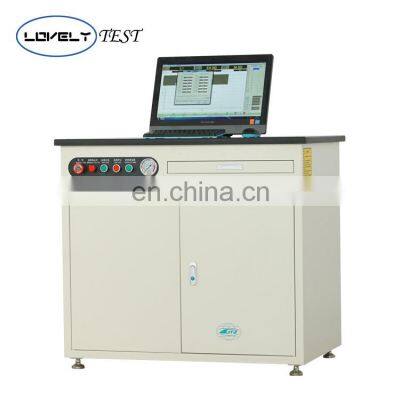

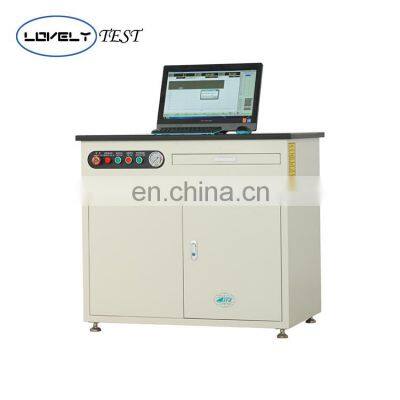

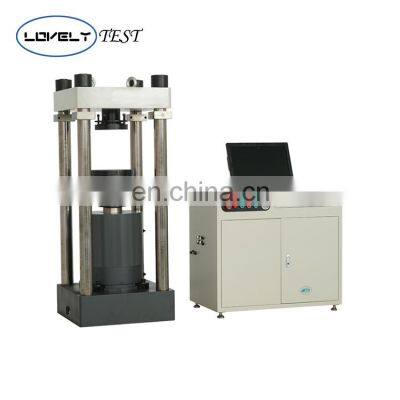

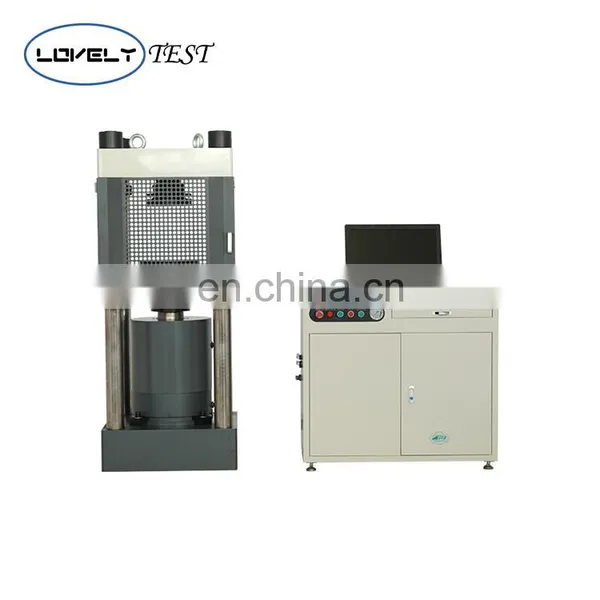

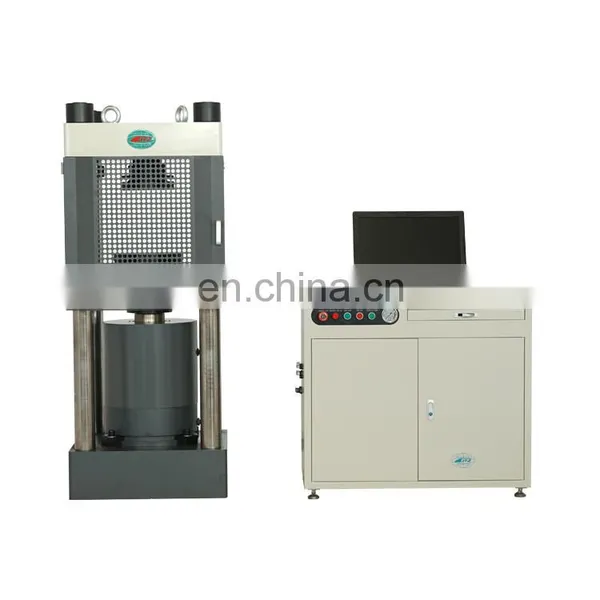

HYE-2000C Electro-hydraulic Servo Compression Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HYE-2000T Electro-hydraulic Servo Compression Testing MachineNegotiableMOQ: 1 -
Force Transfer Verification Apparatus/High Accuracy 200 Ton Compression Load CellNegotiableMOQ: 1
-
Digital Display Panel With Transducer for the Compression Test MachineNegotiableMOQ: 1
-
2000KN Digital Compression Testing Equipment CTMNegotiableMOQ: 1
-
Hot Sale DYE-2000 Digital Compression Testing MachineNegotiableMOQ: 1
HYE-2000C Electro-hydraulic Servo Compression Testing Machine
Usage Overview
This series of testing machines is suitable for concrete, rock compressive strength test, with appropriate fixtures and measuring devices to meet the concrete tensile test, flexural test, static pressure elastic modulus test.
1.The testing machine is a hydraulic servo compression pressure testing machine with closed-loop control, with constant stress control and load holding function;
2.Using imported servo valve, the response is fast and the control precision is high.
3.Within the allowable range of the machine, the user can arbitrarily set the loading speed according to the requirements of the experiment;
4.The load cell adopts load sensor, which can ensure the accuracy and reliability of the test accuracy.
5.The imported low-noise high-pressure oil pump can make the workplace have a quiet environment;
6.The hydraulic system adopts air-cooling device, which is suitable for continuous operation for a long time;
7.Multiple displacement (or deformation) measurement channels can be expanded according to user requirements.
3.Within the allowable range of the machine, the user can arbitrarily set the loading speed according to the requirements of the experiment;
4.The load cell adopts load sensor, which can ensure the accuracy and reliability of the test accuracy.
5.The imported low-noise high-pressure oil pump can make the workplace have a quiet environment;
6.The hydraulic system adopts air-cooling device, which is suitable for continuous operation for a long time;
7.Multiple displacement (or deformation) measurement channels can be expanded according to user requirements.
Specification model |
HYE-2000C |
||
Maximum test force (KN) |
2000 |
||
Test accuracy |
Level 1/ Grade 0.5 |
||
Measurement resolution |
1%-100%FS(the whole process is not divided ) |
||
Main structure form |
Four columns |
||
Concrete (rock) elastic modulus |
Scalable configuration |
||
Effective distance between columns(mm) |
430 |
||
Distance between upper and lower platens(mm) |
410 |
||
Adjustment between upper and lower platens |
Cylinder adjustment, block adjustment |
||
Upper and lower platen size |
Ф200 |
||
Piston stroke (mm) |
200 |
||
Piston moving displacement speed(mm/min) |
0-60 |
||
Test force loading rate range |
0.02%-2%FS/s |
||
Piston motion direction control |
Two-way cylinder |
||
Mainframe dimensions (mm) |
650x650x1620 |
||
Control cabinet dimensions(mm) |
985x600x950 |
||
Total power(kW) (three-phase five-wire system) |
2.5(AC 380V 50kz) |
||
Weight |
1600KG |
||
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
