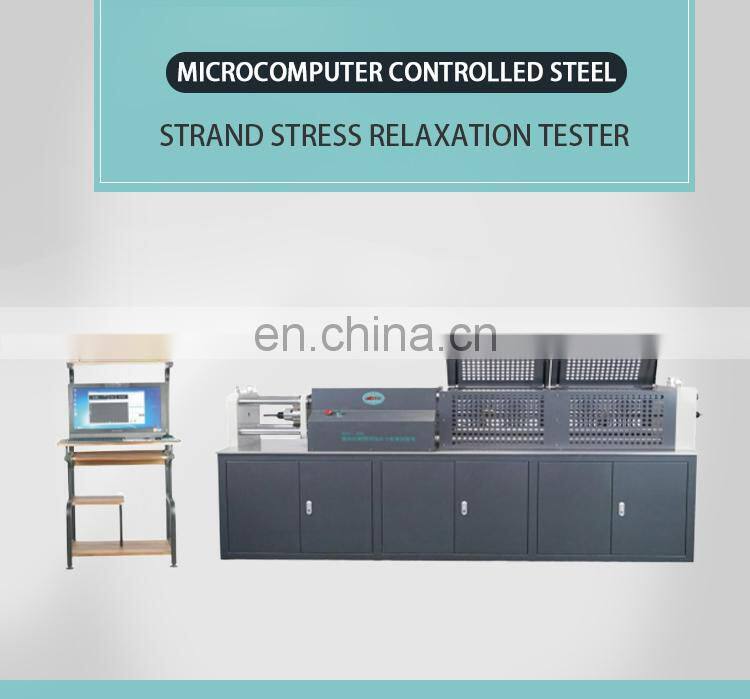

Microcomputer Controlled Steel Strand Stress Relaxation Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2000kN Compression Testing Machine for concrete/cement cube
-
HYE-300b Microcomputer Servo Compression Testing Machine
-
HYE-300D Automatic Cement Compression&Flexural Testing Machine
-
HYE-2000 Microcomputer Servo Compression Testing Machine
-
HYE-2000B Electro-hydraulic Servo Compression Testing Machine
-
HYE-2000A Electro-hydraulic Servo Compression Testing Machine
Product Description
WSC Steel Strand Stress Relaxation Universal Tensile Testing Machine
Microcomputer Controlled Steel Strand Stress Relaxation Tester is used for tensile stress relaxation test of prestressed steel wire, steel strand, PC steel bar and metal material; isothermal stress relaxation test; stress relaxation test period ≥1000h. The isothermal stress relaxation test is to maintain the sample from the initial force F0, determine the change in force on the sample; stress relaxation test period 100h ~ 1000h can be set. Relaxation rate, dedicated stress relaxation tester software, which can perform functions such as uniform rate loading, force retention, and strain retention.
Product Description
Specification

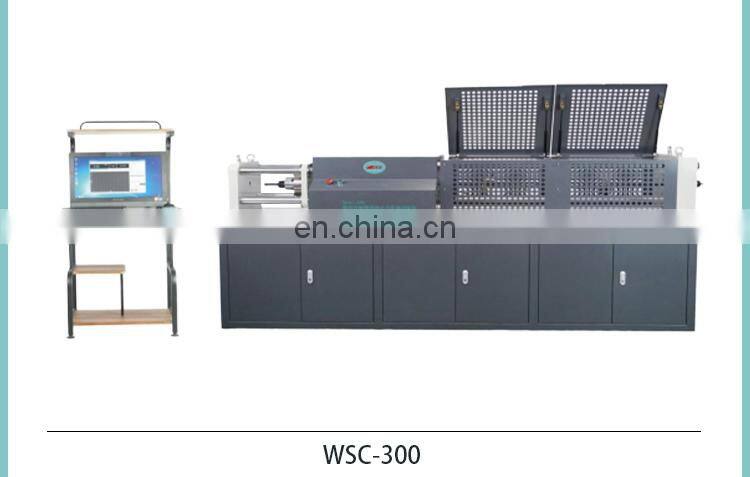

Product name | WSC-300 Microcomputer Controlled Steel Strand Stress Relaxation Tester |
Maximum relaxation test force | 300KN |
Relative error of indication | ≤±1% |
Effective measurement range | 0.4%-100%(Full range without binning) |
Relative error of test force indication | ≤±0.5% |
Slack load loading rate | 0.1~10kN/S |
Screw movement adjustment rate | 0.01-150mm/min |
Steel strand loose deformation gauge distance | 200mm |
Effective measurement space | 1300mm |
Effective gauge length | ≤1200mm(Φ60) |
Deformation measurement resolution | 0.01mm |
Steel strand nominal diameter（mm） | ≤15.24 |
Stress relaxation test procedure | Force closed loop,deformation closed loop control |
Mainframe dimensions | 2590*700*1150mm |
Power | 220V、50Hz、3kW |
Weight | 1500kg |
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
