Home > Instruments & Meters > Test Instrument > Test Machine > HYE-300b Microcomputer Servo Compression Testing Machine

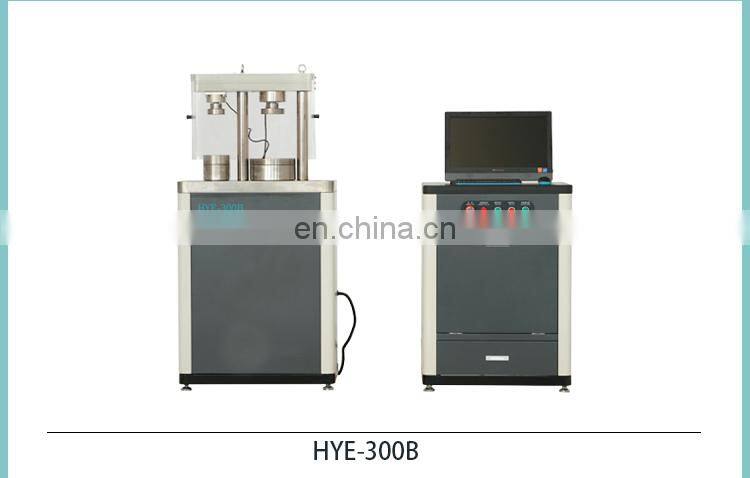

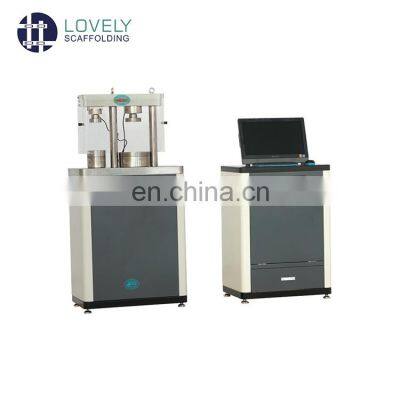

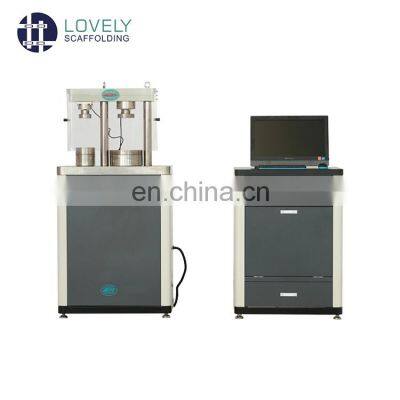

HYE-300b Microcomputer Servo Compression Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HYE-300D Automatic Cement Compression&Flexural Testing MachineNegotiableMOQ: 1 -
HYE-2000 Microcomputer Servo Compression Testing MachineNegotiableMOQ: 1
-
HYE-2000B Electro-hydraulic Servo Compression Testing MachineNegotiableMOQ: 1
-
HYE-2000A Electro-hydraulic Servo Compression Testing MachineNegotiableMOQ: 1
-
HYE-3000 Electro-hydraulic Servo Compression Testing MachineNegotiableMOQ: 1

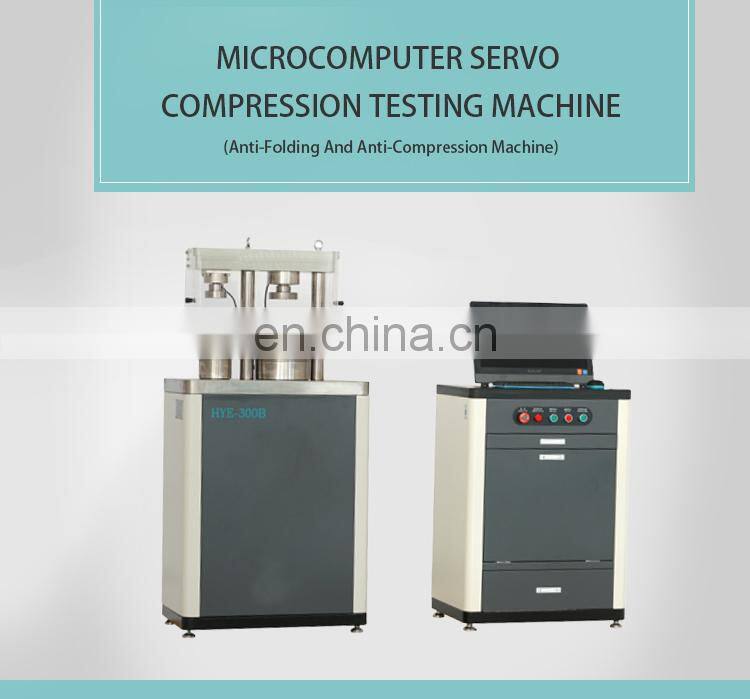

HYE-300B Concrete Anti folding and Anti compression Machine
Usage Overview
The series of testing machines are powered by hydraulic pressure. Electro-hydraulic servo control technology is used to test themechanical properties of cement, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
1.Using 300KN and 10KN high precision load cells;
2.Use special anti-pressure and anti-folding fixtures for cement;
3.Adopt a plexiglass protective cover with novel appearance.
2.Use special anti-pressure and anti-folding fixtures for cement;
3.Adopt a plexiglass protective cover with novel appearance.
APPLICATION STANDARD:
GBT、ISO、ASTM、DIN、JIS etc.
GBT、ISO、ASTM、DIN、JIS etc.
Model | HYE-300D | HYE-300B |
Compressiveflexural maximum test force(KN) | 300/10 | 300/10 |
Test accuracy | Level 0.5/1 | Level 0.5/1 |
Compressive piston stroke | 80mm | 80mm |
Anti-floding piston stroke | 60mm | 60mm |
Compressive compression space | 180mm | 180mm |
Flexural compression space | 180mm | 180mm |
Fied upper platen size | Φ108/Φ60mm | Φ108/Φ60mm |
Ball-type upper platen size | Φ168mm | Φ168mm |
Lower platen size | Φ207mm | Φ207mm |
Motor power | 1.5KW | 0.75KW |
Mainframe dimensions | 560*400*1340mm | 560*400*1340mm |
Machine weight | 520kg | 520kg |
Control cabinet dimensions | 540*500*820mm | 540*500*820mm |
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
