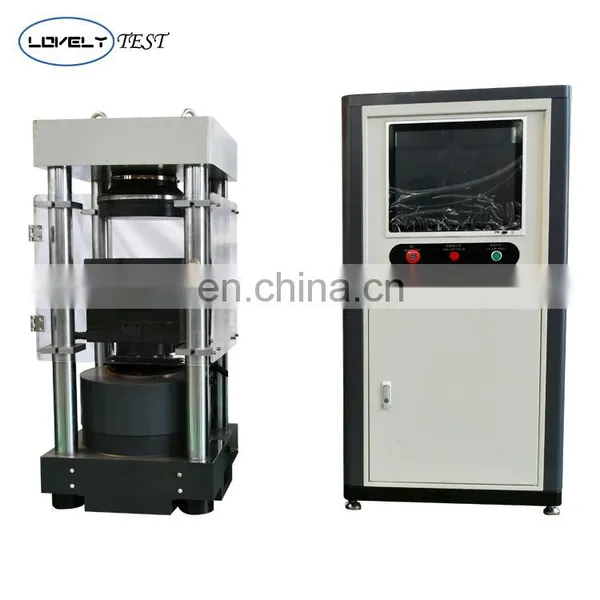

Computer Control Electro-hydraulic Servo Compression Testing Machine With Best Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electro-hydraulic Servo Compression Testing Equipment HYE-2000ANegotiableMOQ: 1 -
Microcomputer Servo Compression Testing Equipment Hot SaleNegotiableMOQ: 1
-
Microcomputer Servo Compression Testing Machine(Anti-folding&Anti-compression Machine)NegotiableMOQ: 1
-
Automatic Cement Compression&Flexural Testing MachineNegotiableMOQ: 1
-
Microcomputer Electronic Steel Strand Tensile StressNegotiableMOQ: 1
HYE-2000T Electro-hydraulic Servo Compression Testing Machine
Usage Overview
This series of testing machines are suitable for concrete and rock compressive strength tests, equipped with appropriate fixtures and measuring devices to meet the concrete split tensile test, flexural test, and static elastic modulus test.
1. This machine is specially designed for concrete elastic modulus test. It is equipped with professional elastic modulus analysis software and automatic data collection kit. The test process is simple and efficient;
2. This machine adopts a large oil cylinder wide body design, which has a large test space, while reducing the internal pressure of the hydraulic system, making the test process safer and more reliable;
3. This machine uses a combination of servo motor and Mazu gear pump to load, the test process is quiet, and the test data is accurate;
4. This machine adopts a servo control system, which can realize constant rate control, load holding control, low cycle control, stepless speed regulation, and online adjustment of PID parameters;
5. This machine can be used for compressive tests of concrete test blocks, refractory bricks and other blocks, realizing one machine for multiple purposes;
6. Adopting block slide rail structure design, free switching between concrete compression test and elastic modulus
test;
test;
7.The Chinese and English interface can be switched freely, making it more convenient and faster for foreign customers to
use.
use.
Name |
compression testing machine |
Model |
HYE-2000T |
Max. Test Force (KN) |
2000 KN |
Test accuracy |
Level 1/0.5 |
Force Value Display Range |
1%-100%FS |
Force Value Display Error |
within ±1% |
Framework Type |
4 columns |
Compressed space |
320 mm |
Piston Stroke |
80 mm |
Piston Displacement Velocity |
0-60 mm/min |
Upper Pressure plate size |
φ300mm |
Lower Pressure plate size |
300*300mm |
Effective Distance Between Columns |
350 mm |
Host Size |
545*900*1260 mm |
Control Cabinet Size |
654*450*1300 mm |
Total Weight |
1300kg |
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
