Electro-Hydraulic Universal Material Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 600Kn Tensile Testing Equipment Material Testing Machine Hydraulic Universal Testing MachineNegotiableMOQ: 1 -
Electro-Hydraulic Universal Material Testing MachineNegotiableMOQ: 1
-
100kN Microcomputer Screen Display Hydraulic Universal Testing MachineNegotiableMOQ: 1
-
300kN Microcomputer Screen Display Hydraulic Universal Testing MachineNegotiableMOQ: 1
-
600kN Microcomputer Screen Display Hydraulic Universal Testing MachineNegotiableMOQ: 1

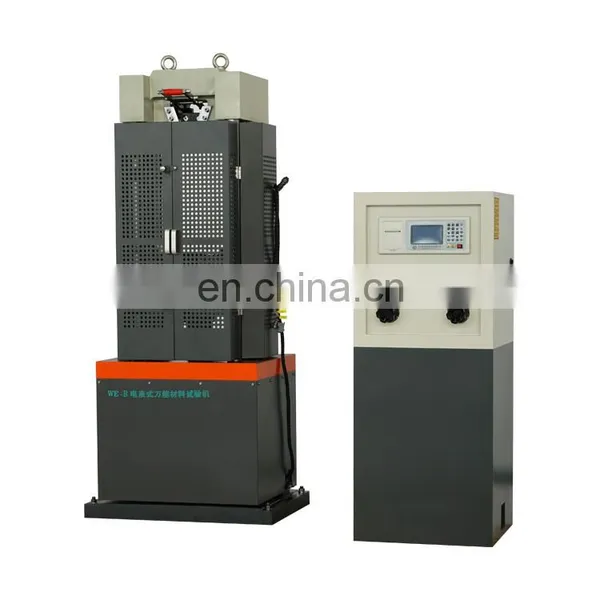

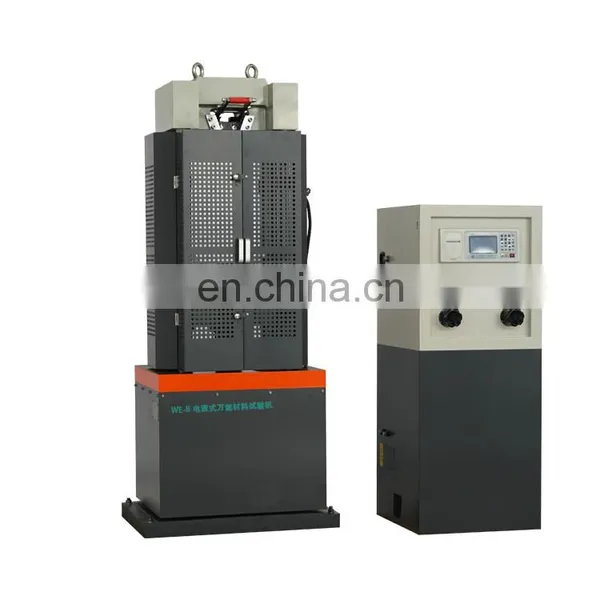

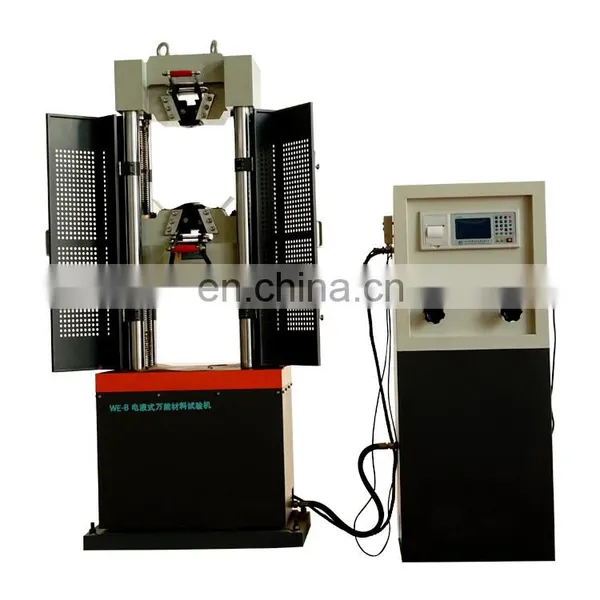

WE-B Electro-Hydraulic Universal Material Testing Machine
Usage Overview
The series of test machines are loaded hydraulically. The manual control technology is used to test the te4nsile, compressive, bending and shearing of metal and non-metal materials. It displays various closed-loop control modes such as curves, forces, deformations and displacements. Switch freely during the test. Automatically store stored data. It can meet GB, ISO, ASTM, DIN,JIS and other standards.
Model |
WE-100B |
WE-300B |
WE-600B |
WE-1000B |
|||
Maximum test force (kN) |
100 |
300 |
600 |
1000 |
|||
Test machine accuracy level |
Level 1 |
||||||
Piston stroke (mm) |
200 |
||||||
Test force collection method |
Oil pressure sensor |
||||||
Clamping method |
200 |
||||||
Test control method |
Manual adjustment |
||||||
Compression test space(mm |
600 |
||||||
Tensile test space(mm) |
700 |
||||||
Machine powder (kW) |
1.5 |
||||||
Compression plate (mm) |
Φ148 |
Φ148 |
Φ198 |
Φ225 |
|||
Round sample clamping range (mm) |
Φ6~12、Φ12~20 |
Φ10~30 |
Φ12~32 |
Φ14~40 |
|||
Flat specimen clamping range(mm) |
0~10 |
0~20 |
0~30 |
0~40 |
|||
Number of columns(screws) |
6 columns |
||||||
Mainframe dimensions(mm) |
620x520x1723 |
810x560x1910 |
880x570x2050 |
940x640x2250 |
|||
Host weight (kg) |
1500 |
1620 |
2000 |
2800 |
|||
Control cabinet size (mm) |
1010x640x840 |
||||||
Control cabinet weight (kg) |
150 |
||||||
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
