Product Usage and Features

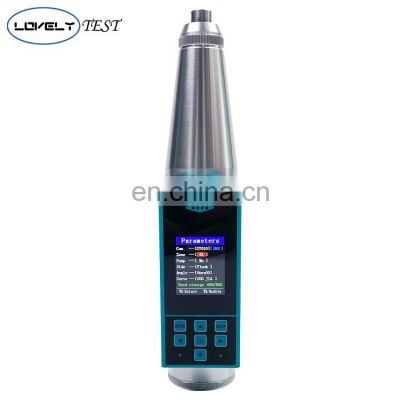

HT225 Integrated Concrete Test Hammer
Usage:
HT225 Integrated concrete test hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
Features:
1.Integrated design, small in size and easy to carry.;
2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;
3. Special color screen display, automatic recording of detection time and date;
4.The parameters of angle, test surface, pumping and carbonization can be set on site;
5. Voice reading function, noisy environment can also be equipped with headphones to monitor;
6. Mini-printer to print test results on site (Optional);
7. Ultra-low power design, continuous use of power supply for 8 to 10 hours;
8. The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.
Parameters
Model
GTJ-HT225
Sensor
MOS image sensor


Data
Acquisition
Terminal
Input mode
Automatically record rebound value
Data processing
Automatic date vevision, calculation and analysis
Display mode
LCD
System capacity
200,000 Measuring points
Power mode
Rechargeable large capacity lithium battery
Wolume
123*55*25mm
Weight
200g


Mechanical Rebound Tester
Range of strength measurement
10~60 Mpa
Nominal kinetic energy
2.207J
Stiffness of spring strike
7.84N/cm
Hammer stroke
75mm
Indicative Consistency error
＜0.5
Calibrated rebound value of steel anvil
80±2
Volume
55*55*270mm
Weight
1.0KG
Working environment requirements
Temperature: -10℃ ~ +40℃ Humidity： ＜90%RH
Packing Specification
Material: engineering plasticVolume:420*140*335mm
Weight: 6Kgs
Detailed Images

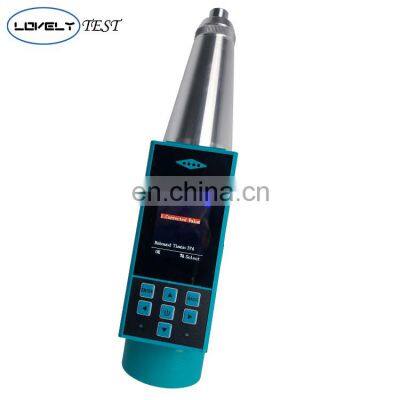

Special color screen display, automatic recording of detection time and date;

Mini-printer to print test results on site (Optional);

Ultra-low power design, continuous use of power supply for 8 to 10 hours;

The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.
