Concrete Floor Thickness Tester Chinese Factory With Good Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NDT Testing Concrete Pile EquipmentNegotiableMOQ: 1 -
Rebound Hammer Concrete Chinese Manufacturer With Best PriceNegotiableMOQ: 1
-
Modsonic Ultrasonic Flaw Detector PriceNegotiableMOQ: 1
-
Concrete Width Detector Wireless Cloud InstrumentNegotiableMOQ: 1
-
Quick Calibration Testing Standard Steel Anvil For HammersNegotiableMOQ: 1
Concrete Floor Thickness Detector
Product Description

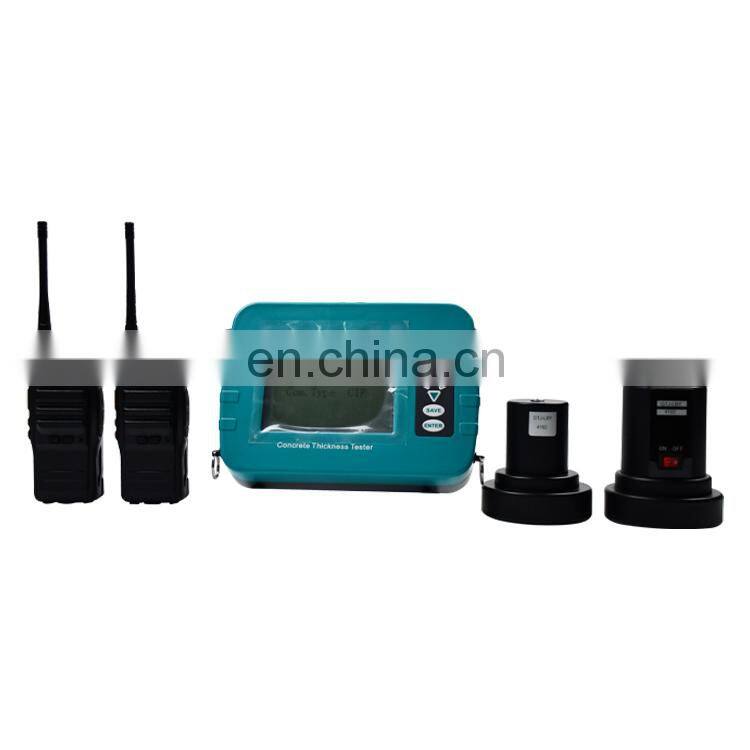

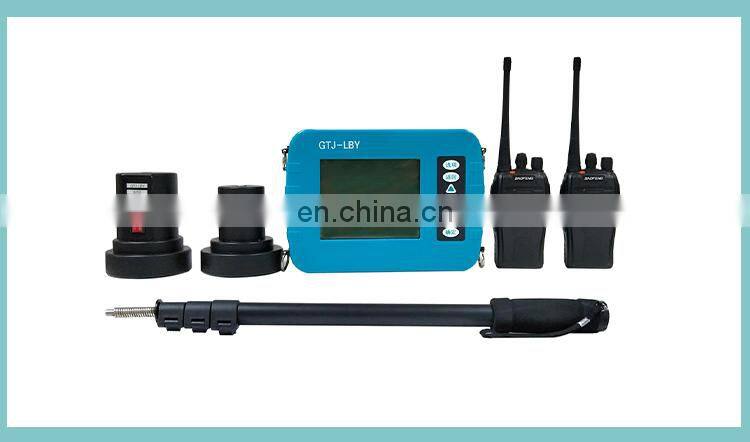

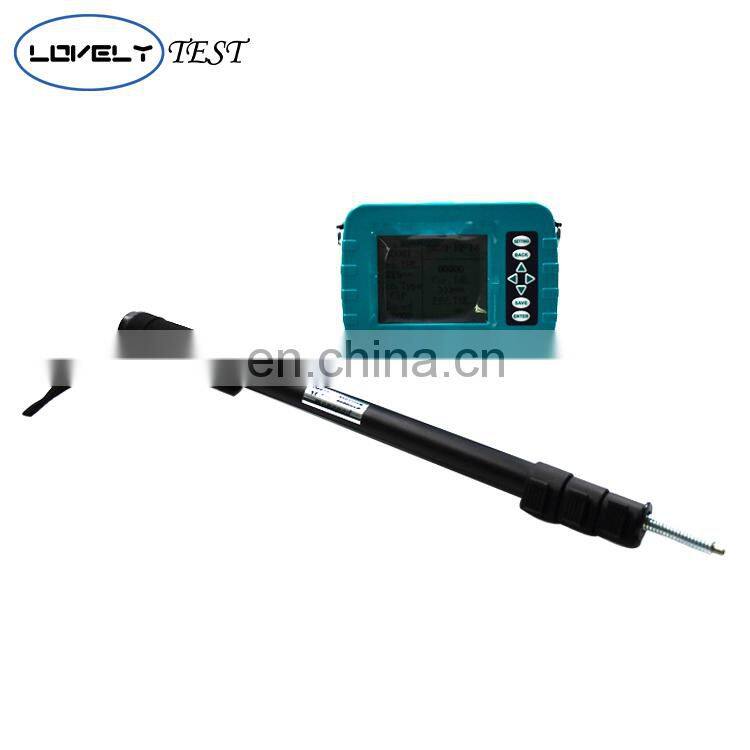

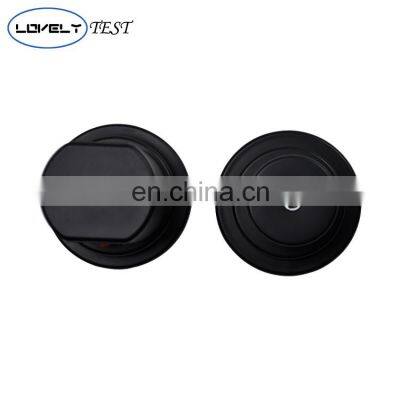

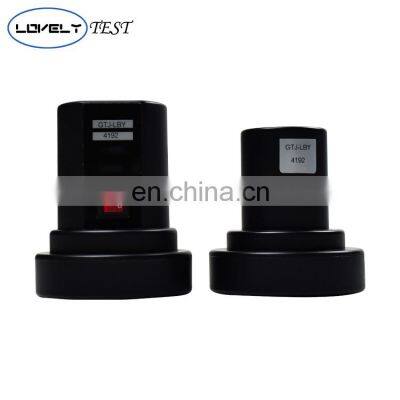

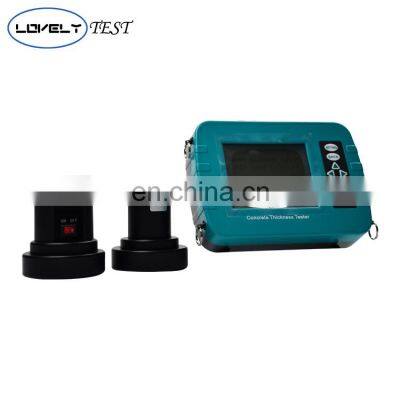

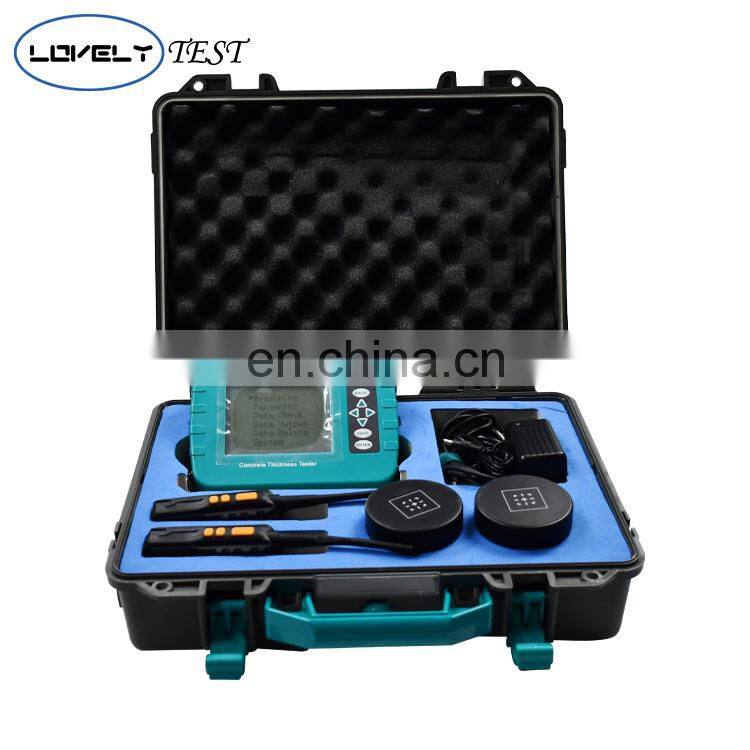

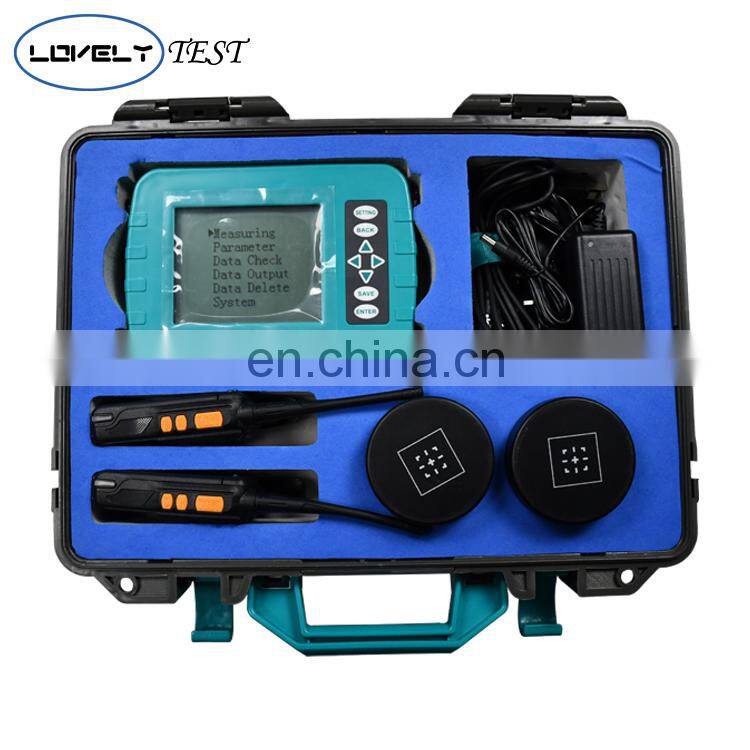

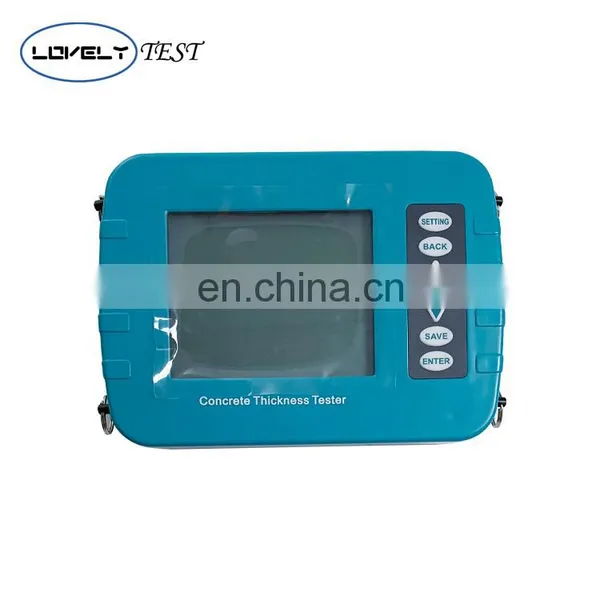

GTJ-LBY Concrete Foor Thickness Detector is a portable non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative test surfaces of the Concrete, respectively, transmitting and receiving electromagnetic fields. The instrument transmits and receives electromagnetic fields according to the received signals. Strength, test Concrete thickness.
1. | Adopt three anti-shell design, waterproof, dust-proof and shock-proof. |
2. | Upgraded wireless cloud transmission function. |
3. | Separate design of probe and main engine facilitates on-site measurement and use by operators. |
4. | Store the measurement results of floor thickness according to components. |
5. | Simple and easy to use, with perfect measurement, storage and analysis functions. |
6. | Large TF card storage capacity, intuitive and convenient transmission. |
7. | Stored data is transmitted to computer through USB interface. |
8. | Use Windows software to analyze data and generate test reports. |
Parameters
Model | GTJ-LBY |
Thickness test range | 40mm~800mm |
Test accuracy | 40~500mm (±1mm) |
501~600mm (±2mm) | |
601~700mm (±4mm) | |
701~800mm (±8mm) | |
Storage capacity | 200 Components *30,000 Measuring points |
Host Parameters | Screen size: 5 inch LCD resolution: 160*128 Volume: 195*140*45mm Weight: 0.8KGs |
Power suppy | Both host and transmitter probes are built-in lithium battery |
Working environment requirements | Temperature: -10℃ ~ +40℃ Humidity： ＜90%RH Non-strong alternating electromagnetic field No long direct sunshine |

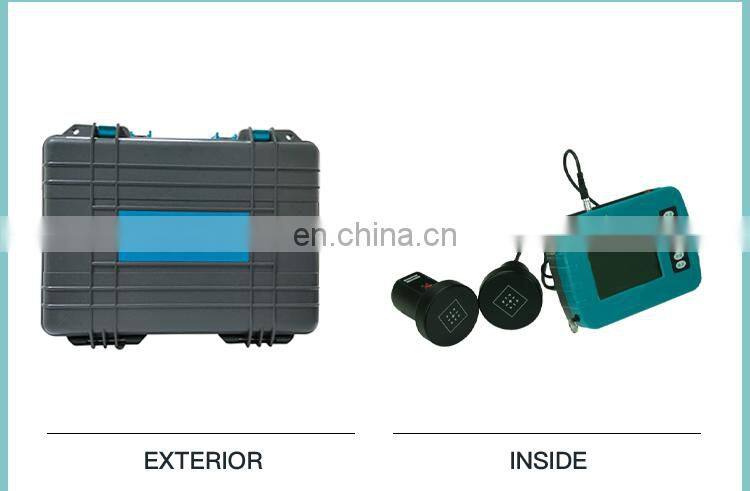

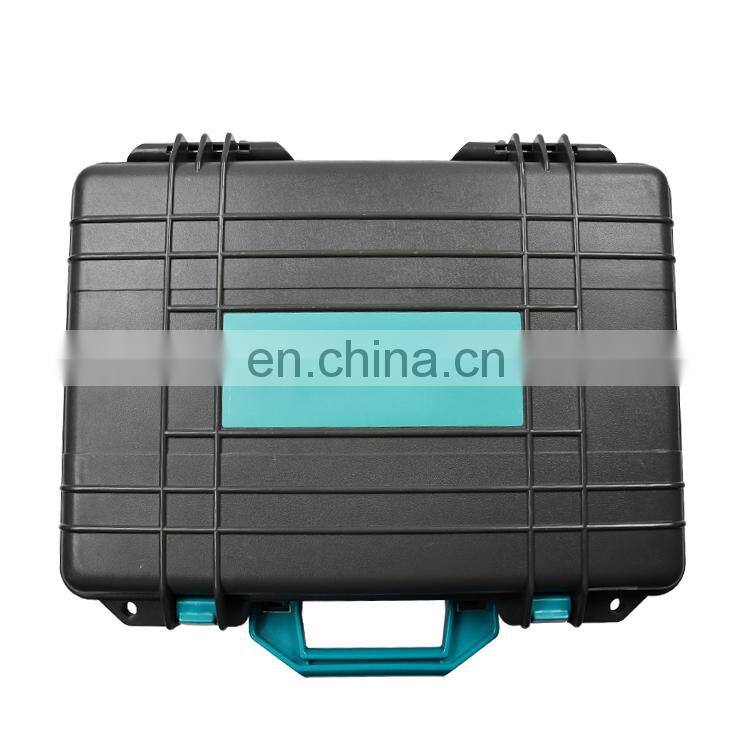

Packing Specification | Material: engineering plasticVolume:420*140*335mm Weight: 6.5Kgs |
Application
Contact US
Cangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
get our in-time reply via email or telephone or instant messenger;
get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
easily make the payment via West Union, Paypal, T/T for small value order;
