Improved Portable Road Markings Retro-reflectivity Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Manual Test Hammer Concrete Test Hammer Rebound Test Hammer
-
Digital Concrete Rebound | Test Hammer HT225
-
Ht225 Digital Concrete Rebound Hammer Tester Resiliometer
-
High Quality Wholesale Concrete Crack Depth Detector Gauge Price
-
Integrated Steel Rebar Scanner Locator Concrete Cover Thickness Tester
-
Ultrasonic Sclerometer Hammer Concrete Test Hammer Rebound Test Esclerometro
Product Description

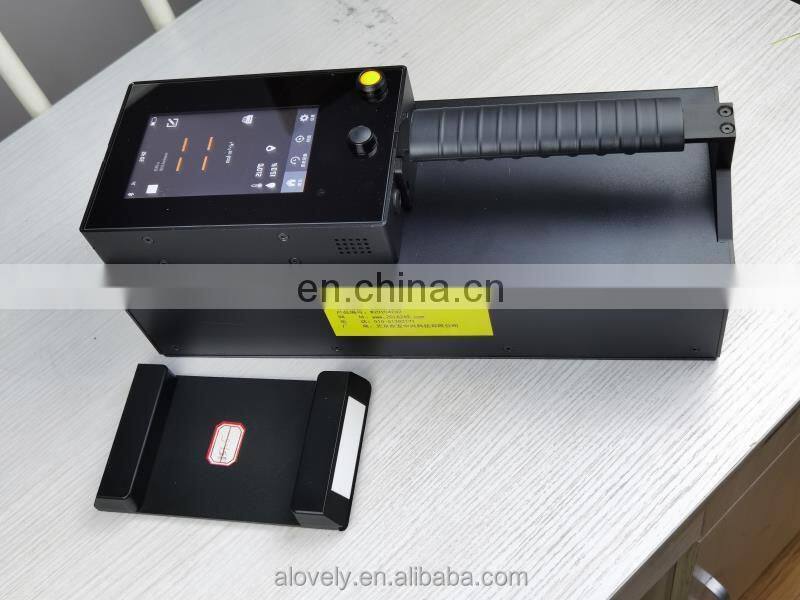

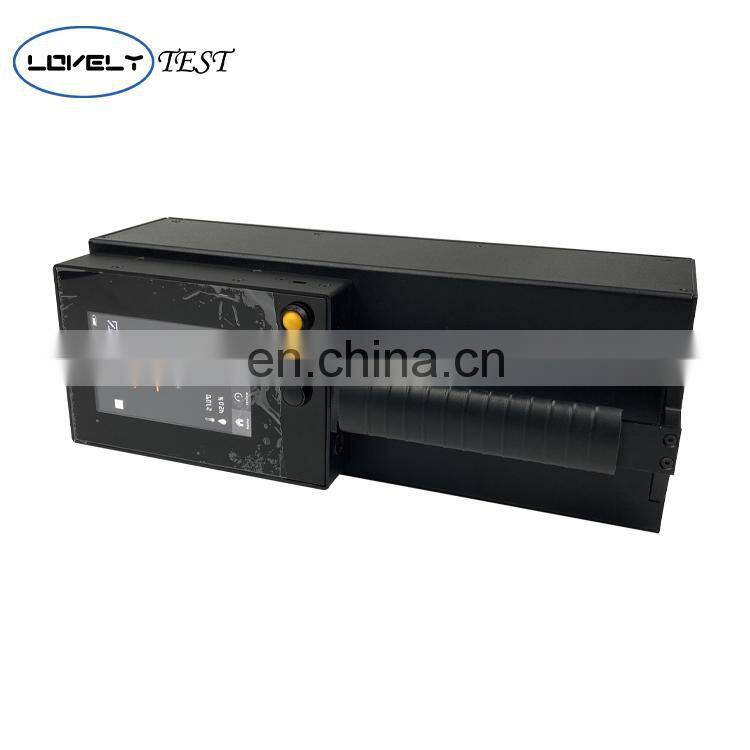

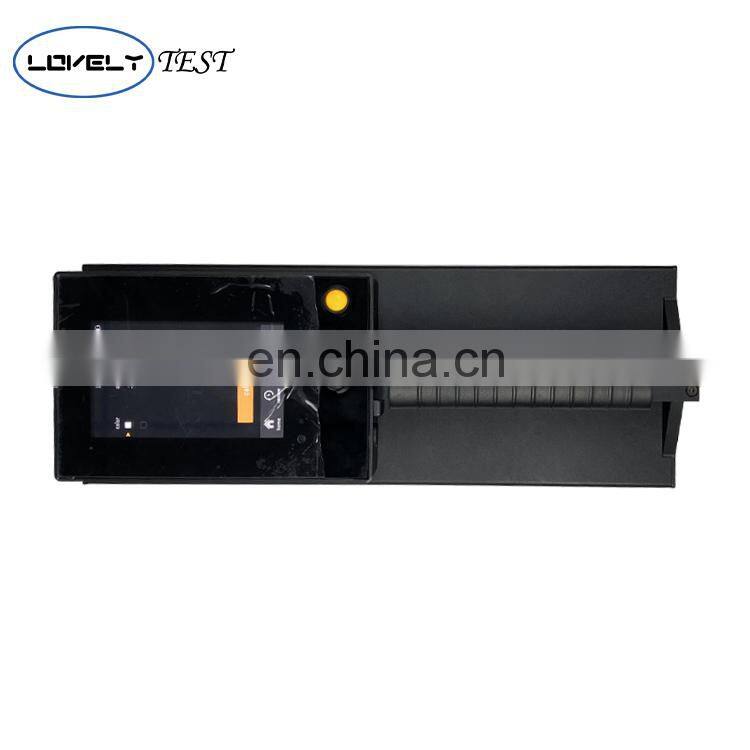

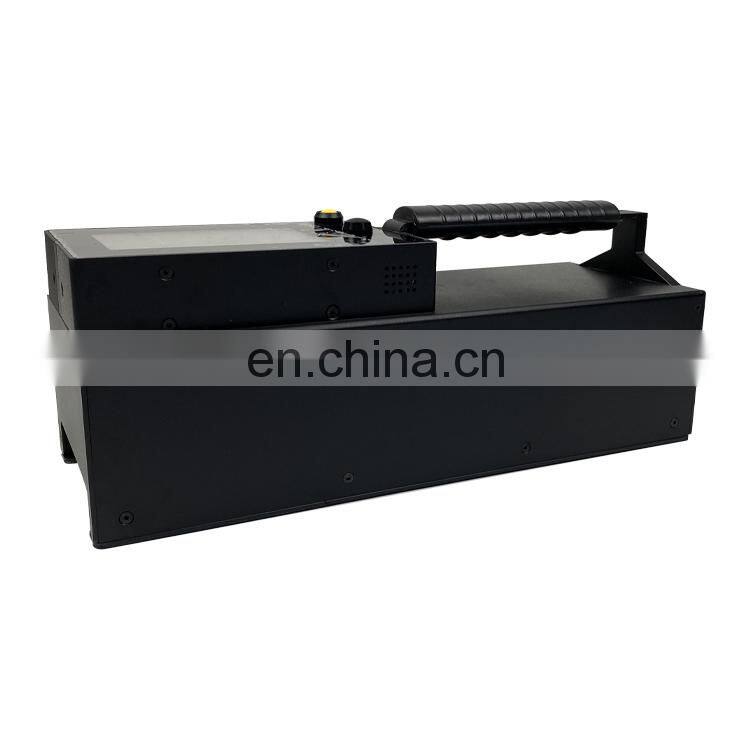

LA-6116 Rainy Night Marking Reflectance Coefficient Measuring Instrument
Usage Overview
LA-6116 Rainy Night Marking Line Retroreflective Measuring Instrument.
The upgraded version of our company on the original marking line is an open optical path portable field measuring instrument which is used to measure the retroreflective brightness coefficient of the marking line. The unit is mcd · m-2 · lx-1.
The main characteristics of its research: it simulates the motor vehicle driving on the road at night, the headlights illuminate the road (made of retro-reflective materials), and after being reflected, the brightness observed by the driver in the cab. It measures the nighttime retroreflective brightness coefficient, or RL value.
Measurement item | retroreflective brightness coefficient mcd.m-2.lx-1 |
Measurement range | 0-4000 |
Observation angle | 1.05 ° |
Incidence angle | 88.76 °, complementary angle is 1.24 ° |
Color temperature of light source | 2856 ± 50K |
Measurement aperture area | 200mm x 95mm |
Repeatability measurement error | ≤2% |
Continuous working time of battery | > 30h |
Data storage space | 8GB |
Built-in battery capacity | 12V / 13Ah |
Charging power supply | DC 15V |
Working environment temperature | -15 ℃ ~ + 60 ℃ |
Ambient humidity | <98%, no frost |
Volume of the whole machine | 360mm x 135mm x 173mm |
Detailed Images
1. Open optical path design, support measurement under dry, humid and continuous rainfall conditions;
2. Quick measurement (reverse reflection brightness coefficient value measured within 1.5 seconds);
3. Simple calibration procedure; calibration system in line with international standards
4. Long standby time, and supports fast charging;
2. Quick measurement (reverse reflection brightness coefficient value measured within 1.5 seconds);
3. Simple calibration procedure; calibration system in line with international standards
4. Long standby time, and supports fast charging;
5. 5 inches sunlight screen, the operation interface can be seen clearly under the light;
6. Support to store more than 100,000 pieces of detection data, including measurement data, operator, road information, GPS information and detection time, etc.
7. USB data interface, test report is exported to computer in the form of database
8. Real-time voice broadcast of measurement data;

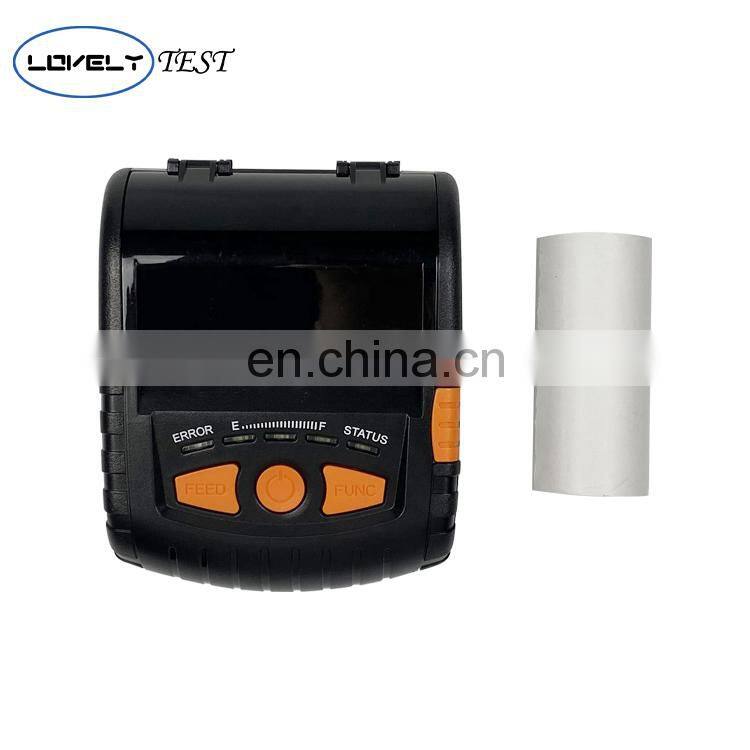

9. Bluetooth printer prints out the test results on site;
10. Touch the keyboard to input Chinese characters, English and characters;
11. Real-time sampling and real-time display of on-site temperature and humidity;
12. It is exquisite, small and light.
8. Real-time voice broadcast of measurement data;
9. Bluetooth printer prints out the test results on site;
10. Touch the keyboard to input Chinese characters, English and characters;
11. Real-time sampling and real-time display of on-site temperature and humidity;
12. It is exquisite, small and light.
