Home > Instruments & Meters > Test Instrument > Test Machine > U910 Non-destructive Testing Flaw Detection of Non-metallic

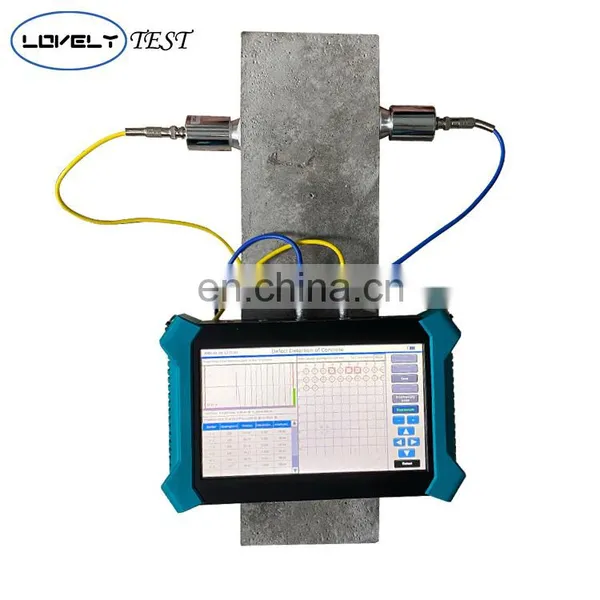

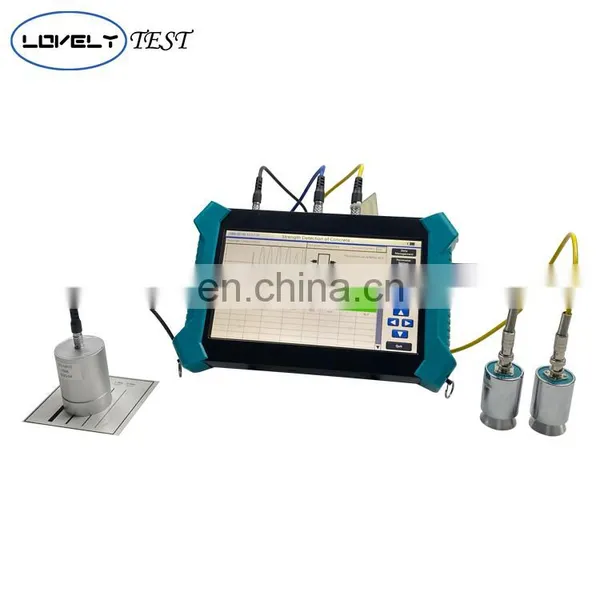

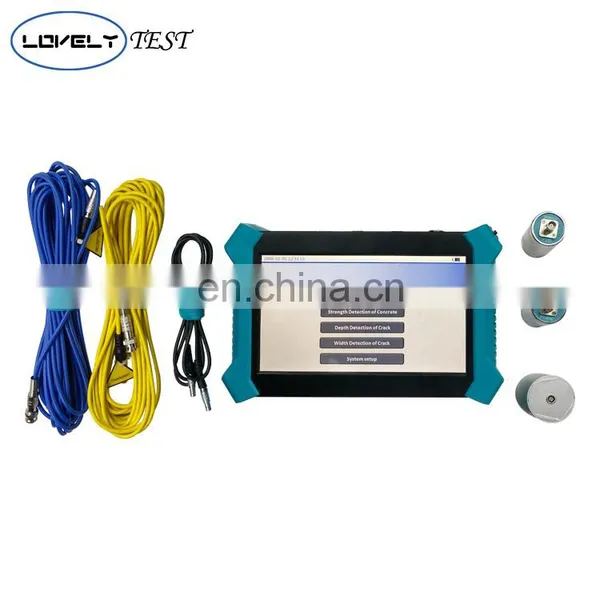

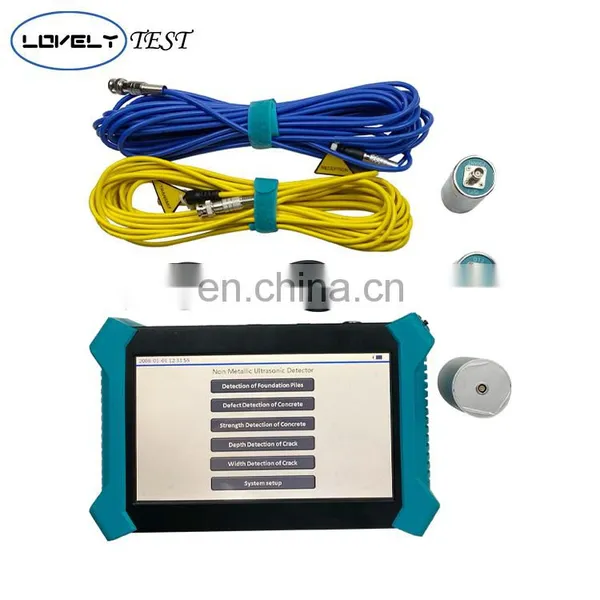

U910 Non-destructive Testing Flaw Detection of Non-metallic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bond Strength Tester/Most Advanced Bond TestersNegotiableMOQ: 1 -
Lightweight Deflectometer/LWD China SupplierNegotiableMOQ: 1
-
Light Weight Deflectometer LWD for Soil and Geotechnical EngineerNegotiableMOQ: 1
-
Light Drop Weight Tester for Soil Bearing CapacityNegotiableMOQ: 1
-
Wireless Laboratory Test Light Weight DeflectometerNegotiableMOQ: 1
Product Description
1. U910 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity.
2. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement.
3. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials, such as rock mass and concrete.
1.Concrete pile intergrity
2.Concrete strength
3.Concrete defects
4.Concrete crack depth

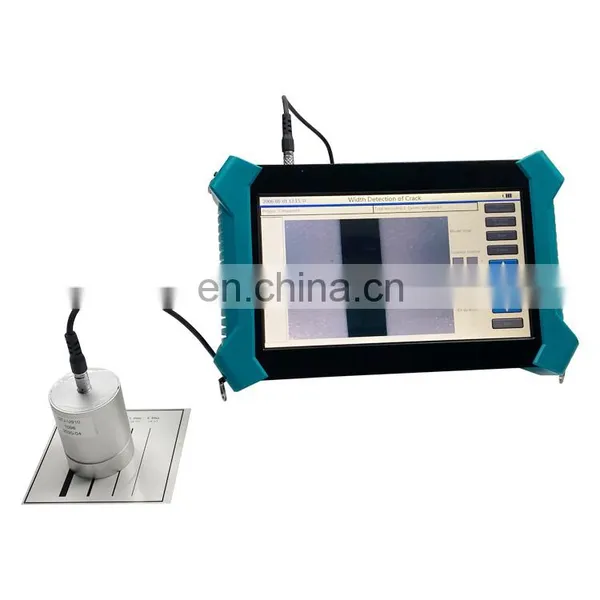

5.Concrete crack width
Full touch screen operation, simple and convenient, stable and reliable.
1 |
New upgraded wireless cloud transmission function; |
2 |
Five functions of measuring pile, strength, defect, sounding depth and width measuring; |
3 |
Stable performance and powerful function, it is the best choice for users with diverse needs, such as engineering inspection, teaching and scientific research; |
4 |
Semi-transparent, high-brightness, TFT color LCD screen; |
5 |
Full touch screen operation, simple and convenient, stable and reliable; |
6 |
Large memory capacity and working time over 10 hours; |
7 |
It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound; |
8 |
U-disk transfers data and supports software upgrading through U-disk; |
9 |
Special analysis software. The data analysis and processing, report generation, and report printing can be completed easily. |
Specification
Product Model |
U910 |
Master control unit |
Buit-in A8 industrial control motherboard |
Display |
10.1 inch, high brightness, TFT color LCD capacitive screen |
Operational mode |
Touch screen |
Storage mode |
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk |
Data transmission mode |
Wireless Cloud Transport(Options) |
Acquisition mode |
Single-channel, manual point-by-point acquisition |
Number of dispossable profiles |
- |
Channel number |
1 transmit+1 receive |
Trigger mode |
Signal triggering |
Sampling period(μs) |
0.05~409.6 Multistage Options |
Acoustic time accuracy(μs) |
0.05 |
Acoustic time range(μs) |
+1677700 |
Width measurement function |
Range: 0~10mm Accuracy: 0.01mm |
Dynamic range(dB) |
146 |
Bandwidth(kHz) |
1~500 |
Emission voltage(V) |
65, 250, 500 and 1000 gears adjustable |
Communication |
UBS, Bluetooth, Wifi |
Working hours(h) |
More than 8 |
Power supply mode |
Built-in lithium battery External 220V~ 16V AC/CD |
Working environment |
Temp.: -10℃~ + 40℃ Humidity(RH) <90% |
Host size(mm) |
300*200*55 |
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
Company Profile
Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.
All our products are made in China. Excellent quality with competitive price.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
