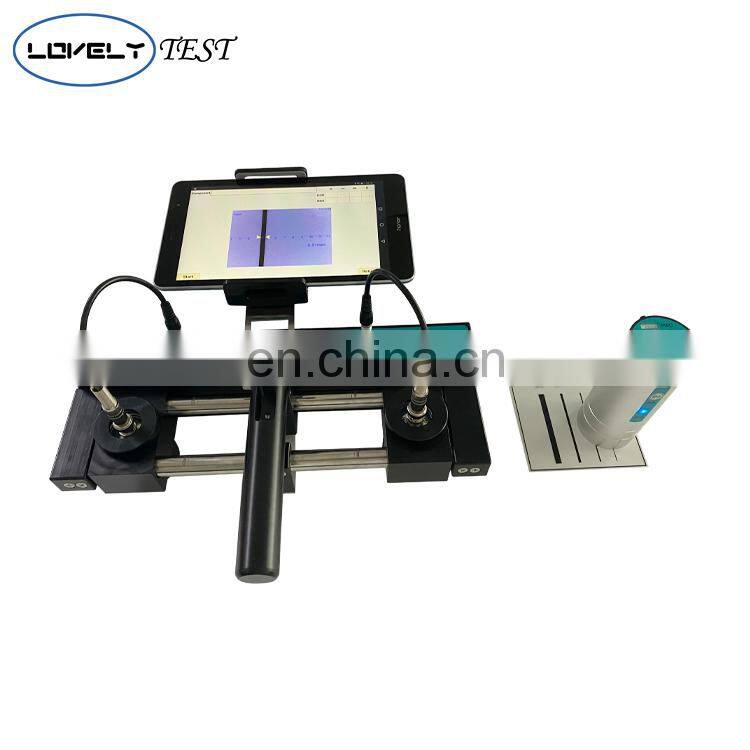

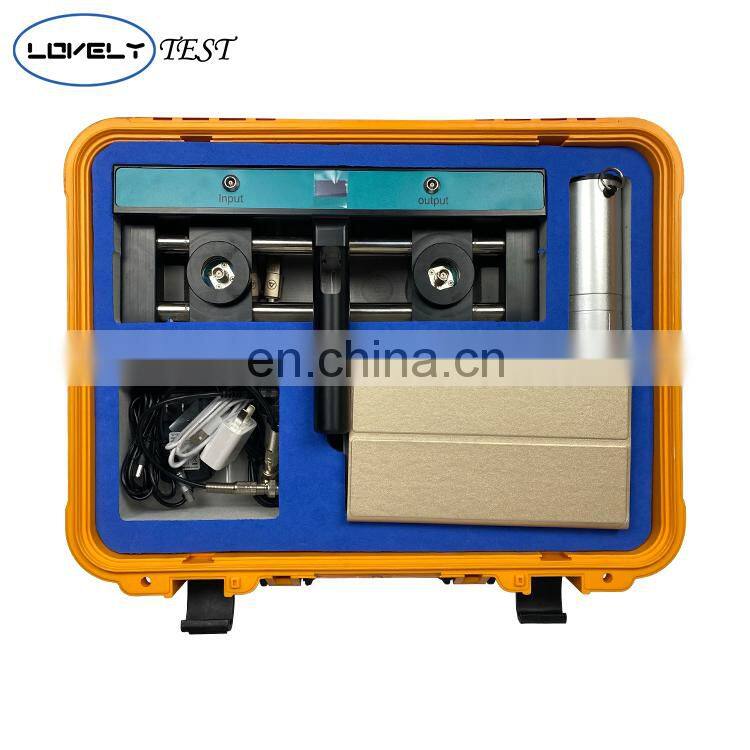

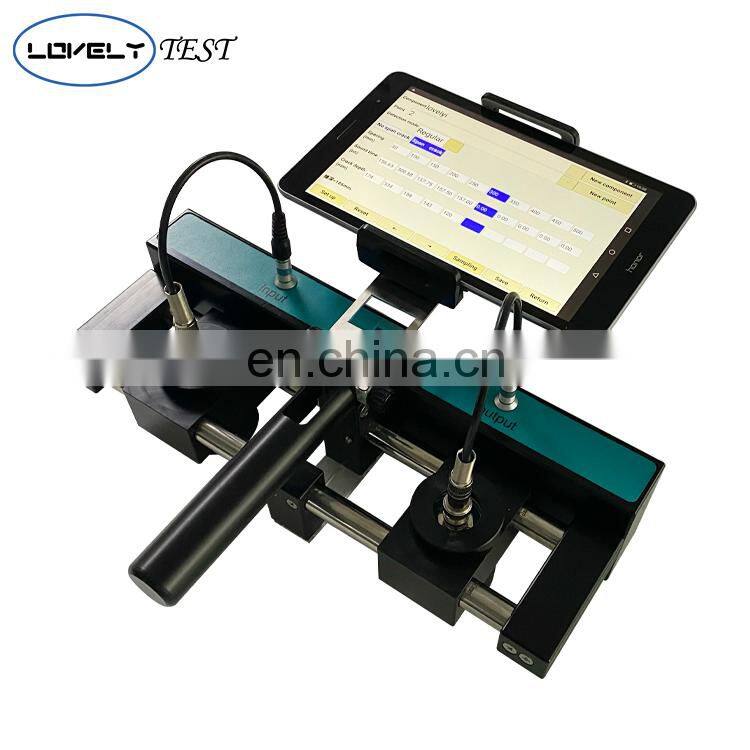

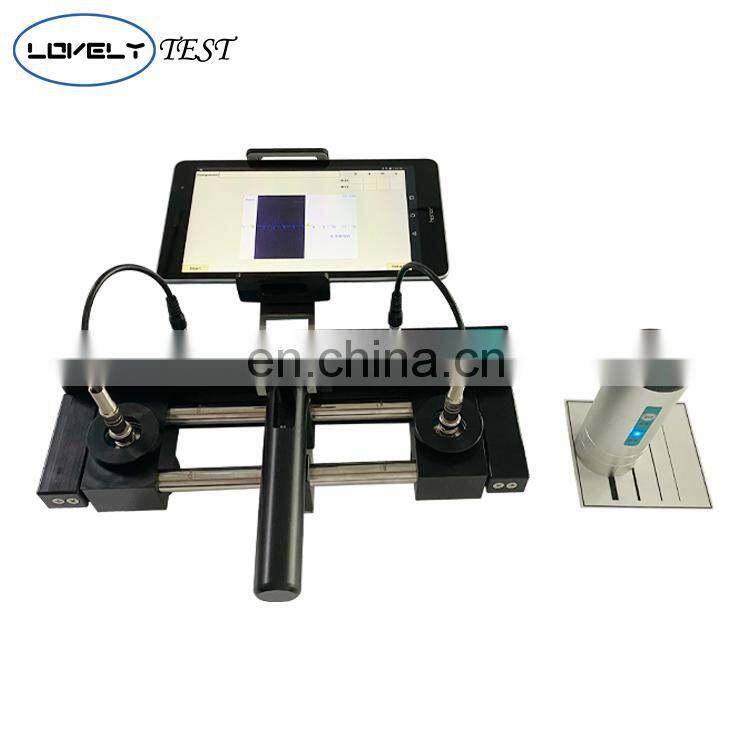

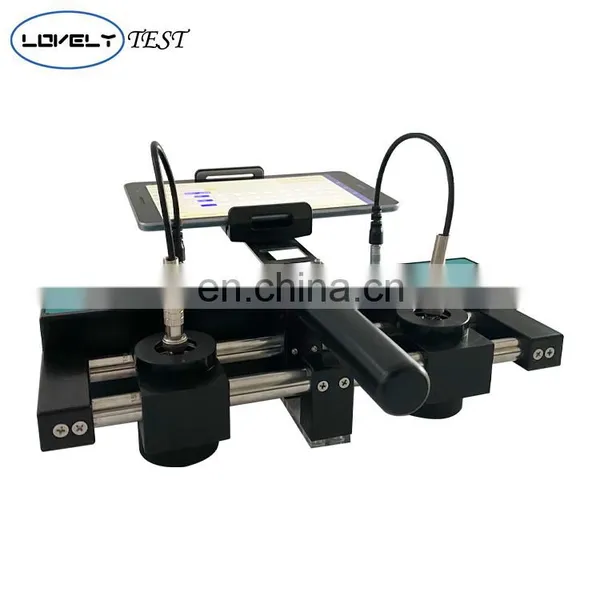

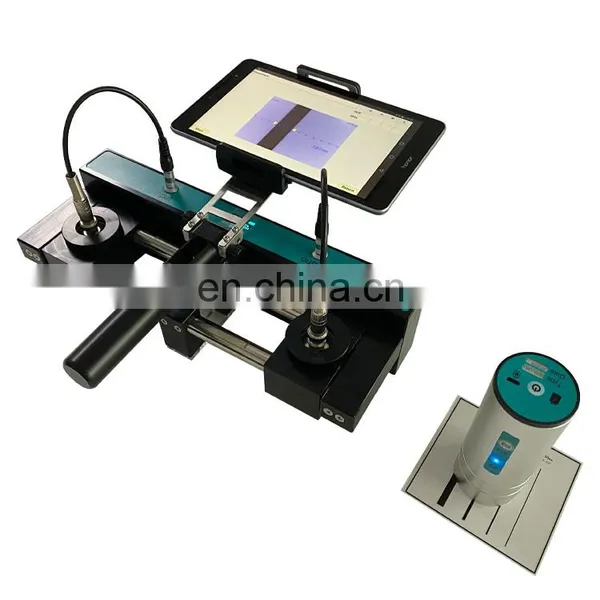

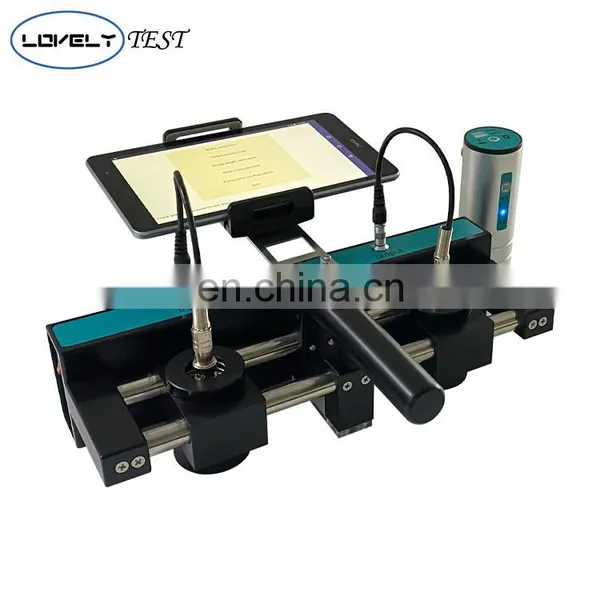

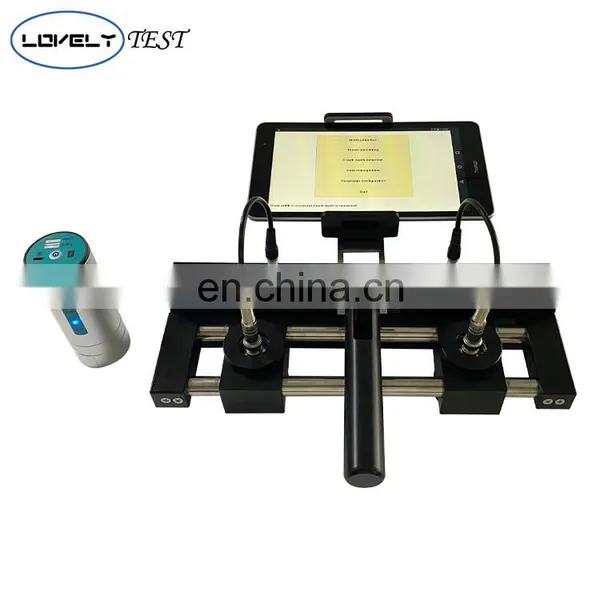

F800 Wireless crack meter
Usage Overview
It is used for automatic measurement of crack width and crack depth on structure surface, automatic interpretation and storage of data.
Product Features
1. | New upgraded wireless cloud transmission function; |
2. | Original wireless camera probe, snap button operation is convenient; host adopts Android system tablet computer, Chinese full touch operation; |
3. | Intelligent interpretation of oblique cracks, without vertical; images can be zoomed in and out, and the interface display scale can be manually assisted to interpret; |
4. | The sounding bracket does not need to be crossed, saving time and effort; tablet computer and TF card storage, large capacity without limit, copying data is convenient and fast; |
5. | The data analysis and report form is included in the main unit, which can be owned without transferring to the host computer. |
Specification
Master control unit | 8-inch tablet Android operating system | ||
Wireless Width Gauge Unit | Test range and accuracy | 0~10mm: 0.01mm | |
Magnification | Digital 60 times | ||
Operational mode | Touch screen + shortcut keys | ||
Connection mode | Wifi connection | ||
Data transmission mode | Wireless cloud transmission (optional) | ||
Measuring method | Automatic/ manual | ||
Power supply mode | Built-in lithium battery | ||
Working hours | More than 10 hours | ||
Working environment | -10℃~ 40℃ ＜90%RH | ||
Wireless Depth Gauge Unit | Test scope | 5~500mm | |
Measurement accuracy | Less than 5mm or 2%~10% of the actual depth | ||
Operational mode | Touch screen + probe automatic trigger | ||
Connection mode | Bluetooth connection | ||
Data transmission mode | Wireless cloud transport(options) | ||
Measuring method | Fast/standard measurement | ||
Power supply mode | Built-in lithium battery | ||
Working hours | More than 10 hours | ||
Packing dimensions | 420*140*335mm | ||
Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
