Home > Instruments & Meters > Test Instrument > Test Machine > U600 Digital Ultrasonic Flaw Detector/ultrasonic Testing Device

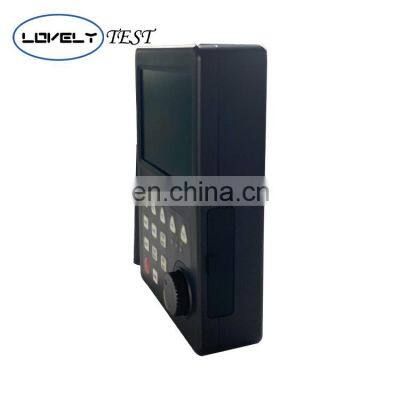

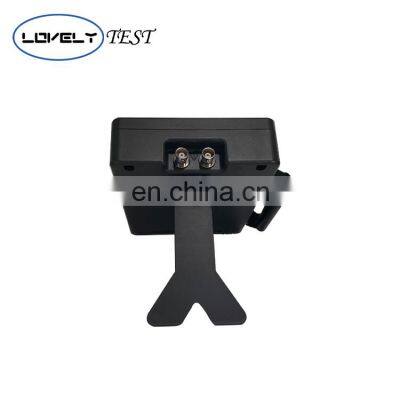

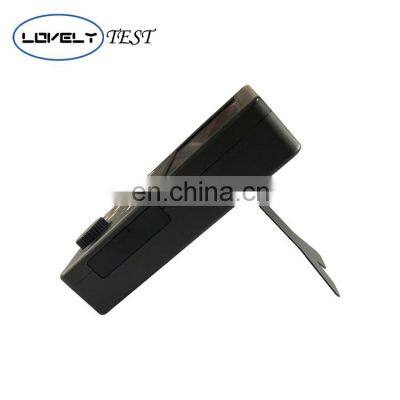

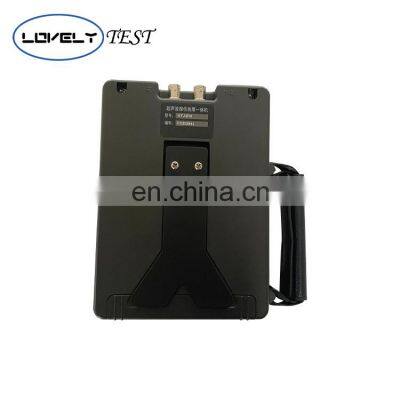

U600 Digital Ultrasonic Flaw Detector/ultrasonic Testing Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R800 Steel Bar Scanner ConcreteNegotiableMOQ: 1 -
2701 Non-nuclear Asphalt Density GaugeNegotiableMOQ: 1
-
RBL Concrete Reinforcement Locator/Concrete Reinforcement ScannerNegotiableMOQ: 1
-
RBL+ Detector Locator Scanner/concrete Rebar DetectorNegotiableMOQ: 1
-
Plate Load Test Soil Mechanics Plate Load Test For Ultimate Bearing Capacity Of FoundationNegotiableMOQ: 1
Product Description
1. U600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection, ultrasonic thickness measurement, and ultrasonic penetration functions in one.
2. It has various functions such as ultrasonic thickness gauge, WIFI connection network or mobile phone, HDMI, digital filtering, etc., applicable Ultrasonic testing for the surface and internal defects of metal and non-metal materials in the industrial field. The design meets the requirement of ergonomics, and is simple, intuitive, convenient and practical.
3. Provides a very high level of flaw detection with simple basic operations, which makes ultrasonic flaw detectors easy to use for both experienced and novice industry personnel.
4. U600 brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., to achieve the perfect combination of these high-tech.
5. It provides the industry with more superior performance and more powerful machines, which can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, and aerospace.
1. | Small size and light weight, including the battery weight is only 0.75kg. |
2. | Built-in domestic and foreign industry standards: The instrument has 11 national standards built-in, compatible with European standards. |
3. | EN12668-1: 2010, which is convenient for setting various DAC and AVG curve parameters. |
4. | Accurate flaw detection High sensitivity. |
5. | High-precision thickness measurement. Coating can be penetrate (U620 /630). |
6. | High-resolution 5.0-inch (800 × 480) widescreen true-color TFT LCD display. |
7. | Recording function and mass data storage. |
8. | HDMI interface Support for teaching use (U630) |
9. | WIFI communication Query flaw detection results anytime and anywhere (U630) |
10. | Low power consumption design Reliable function. |
Technical Parameters
Model | GTJ-U610 | GTJ-U620 | GTJ-U630 | ||
Working principle | Ultrasonic | ||||
Working frequency range | 0.5~20MHz | ||||
Plus Width | Square wave width 30 ~1000ns, step0.1ns | ||||
Detection range | 0 to 14000(steel longitudinal wave)mm | ||||
Pules displacement | -45 to 1000(steel longitudinal wave)mm | ||||
Material sound velocity | 300~15000m/s | ||||
Detection method | Negative wave,forward wave,two-way wave,filtering,RFwave | ||||
Gain adjustment | 0 to 110dB: 0.1/1/2/6 step adiustment | ||||
Thickness measurement function | No | Normal mode 0.75-300mm penetrating coating 2-150mm | Normal mode 0.75-300mm penetrating coating 2-150mm | ||
WIFI/HDMI/Digital Filter | No | No | Phone connection/HD pojection/digital filtering | ||
Valve | off/incoming wave/lost wave | ||||
DAC, AVG function | DAC curve, AVG curve | ||||
Attenuator error | Every 12dB±1dB | ||||
Vertical linear error | ≤3% | ||||
Horizontal linear error | ≤0.5% | ||||
Dynamic Range | ≥30dB | ||||
Flaw deterction margin | ≥65(2.5Z20N probe)dB | ||||
Operating Voltage | 12V(battery, DC) | ||||
Physical dimension | 180*130*40mm(height*width*depth) | ||||
Storage | Expansion TF card, mass storage | ||||
Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
Our customer
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
Company Profile
Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.
All our products are made in China. Excellent quality with competitive price.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
