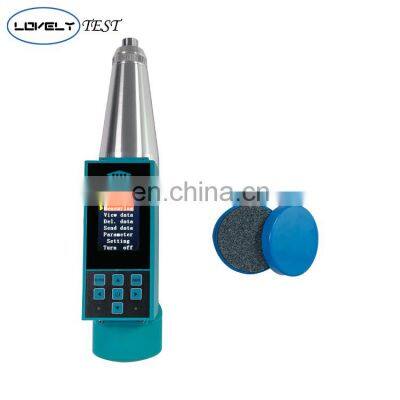

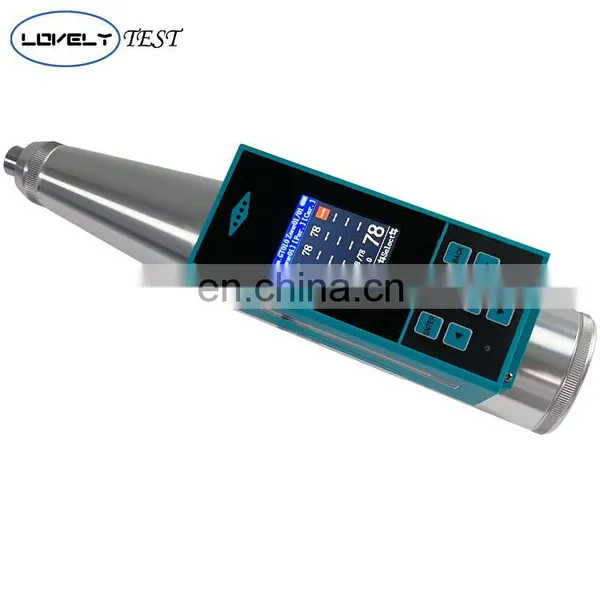

HT 225 Integrated Concrete test hammer
Product Description
HT225 Integrated Concrete test hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
Parameters
Model | GTJ-HT225 | ||
Sensor | MOS image sensor | ||
Data Acquisition Terminal | Input mode | Automatically record rebound value | |
Data processing | Automatic date vevision, calculation and analysis | ||
Display mode | LCD | ||
System capacity | 200,000 Measuring points | ||
Power mode | Rechargeable large capacity lithium battery | ||
Wolume | 123*55*25mm | ||
Weight | 200g | ||
Mechanical Rebound Tester | Range of strength measurement | 10~60 Mpa | |
Nominal kinetic energy | 2.207J | ||
Stiffness of spring strike | 7.84N/cm | ||
Hammer stroke | 75mm | ||
Indicative Consistency error | ＜0.5 | ||
Calibrated rebound value of steel anvil | 80±2 | ||
Volume | 55*55*270mm | ||
Weight | 1.0KG | ||
Working environment requirements | Temperature: -10℃ ~ +40℃ Humidity： ＜90%RH | ||
Packing Specification | Material: engineering plasticVolume:420*140*335mm Weight: 6Kgs | ||
Main Features
Features:
1.Integrated design, small in size and easy to carry.;
2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;
3. Special color screen display, automatic recording of detection time and date;
4.The parameters of angle, test surface, pumping and carbonization can be set on site;
5. Voice reading function, noisy environment can also be equipped with headphones to monitor;
6. Mini-printer to print test results on site (Optional);
7. Ultra-low power design, continuous use of power supply for 8 to 10 hours;

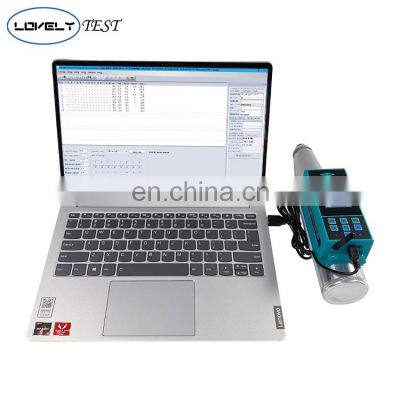

8. The upper computer software saves the data in Excel format, and can directly generate word report format. The later software
processing is simple and convenient.
1.Integrated design, small in size and easy to carry.;
2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;
3. Special color screen display, automatic recording of detection time and date;
4.The parameters of angle, test surface, pumping and carbonization can be set on site;
5. Voice reading function, noisy environment can also be equipped with headphones to monitor;
6. Mini-printer to print test results on site (Optional);
7. Ultra-low power design, continuous use of power supply for 8 to 10 hours;
8. The upper computer software saves the data in Excel format, and can directly generate word report format. The later software
processing is simple and convenient.
