Home > Instruments & Meters > Test Instrument > Test Machine > Cross Hole Sonic Logging Test For Piles
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P800 Low Strain PET Foundation Pile Eche Tester Pile Integrity Test PITNegotiableMOQ: 1 -
Fully Automatic One-piece Rebound Instrument Factory PriceNegotiableMOQ: 1
-
Concrete Ultrasonic Rebound Apparatus Factory PriceNegotiableMOQ: 1
-
Fully Automatic Digital Display Rebound InstrumentNegotiableMOQ: 1
-
Cross-hole Sonic Logging (CSL) Cross Hole Ultrasonic MonitorNegotiableMOQ: 1
Product Usage and Features

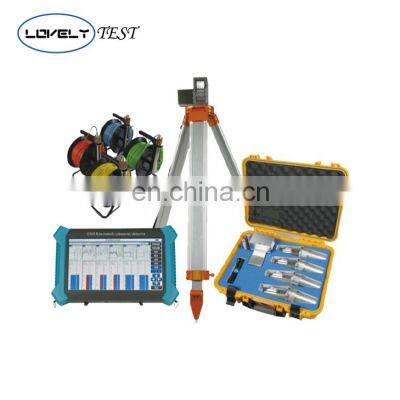

U950/U960Non-metallic ultrasonic detector
USAGE OVERVIEW
U950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for
pile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
pile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
PRODUCT FEATURES
1.Newly upgraded wireless cloud transmission function;
2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;
3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.
4.Full touch screen operation, simple, convenient, stable and reliable;
5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;
6.The deep recording wheel adopts dustproof and waterproof design;
7.Large memory capacity, working time up to 10 hours or more;
8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;
9.U disk dump data, support software upgrade through U disk;
10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.
11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.
Technical Parameters
Product Model | U950 | U960 |
Master control unit | Buit-in A8 industrial control motherboard | Buit-in A8 industrial control motherboard |
Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen |
Operational mode | Touch screen | Touch screen |
Storage mode | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk |
Data transmission mode | Wireless Cloud Transport(Options) | Wireless Cloud Transport(Options) |
Acquisition mode | Synchronous continuous rapid acquisition | Synchronous continuous rapid acquisition |
One-time section mumber | 3 | 6 |
Channel number | 3（transmit and receive） | 4（transmit and receive） |
Trigger mode | Signal triggering | Signal triggering |
Sampling period(μs) | 0.05~409.6 Multistage Options | 0.05~409.6 Multistage Options |
Acoustic time accuracy(μs) | 0.05 | 0.05 |
Acoustic time range(μs) | +1677700 | +1677700 |
Width measurement function | Range: 0~10mm Accuracy: 0.01mm | Range: 0~10mm Accuracy: 0.01mm |
Dynamic range(dB) | 146 | 146 |
Bandwidth(kHz) | 1~500 | 1~500 |
Receiving sensitivity(μV) | ≤10 | ≤10 |
Emission voltage(V) | 65, 250, 500 and 1000 gears adjustable | 65, 250, 500 and 1000 gears adjustable |
Communication | UBS, Bluetooth, Wifi | UBS, Bluetooth, Wifi |
Working hours(h) | More than 8 | More than 8 |
Power supply mode | Built-in lithium battery External 220V~ 16V AC/CD | Built-in lithium battery External 220V~ 16V AC/CD |
Working environment | Temperature(℃) -10℃~ + 40℃Humidity(RH) <90% | Temperature(℃) -10℃~ + 40℃Humidity(RH) <90% |
Host size(mm) | 300*200*55 | 300*200*55 |
