Metal Scanner | Detector Concrete Scanner
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concrete Air Meters Pressure MeterNegotiableMOQ: 1 -
Integrated Concrete Steel Bar Reinforcement DetectorNegotiableMOQ: 1
-
K-60 Static Plate Load TesterNegotiableMOQ: 1
-
K-60 Soil Static Load Bearing Test EquipmentNegotiableMOQ: 1
-
Portable Handy Ut Digital Ultrasonic Flaw DetectorNegotiableMOQ: 1
Product Usage and Features

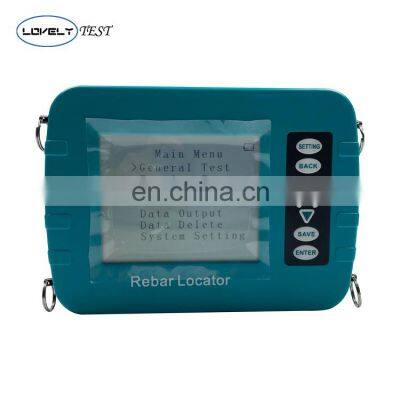

GTJ-RBL+ Concrete Cover Meter Rebar Detector
PRODUCT OVERVIEW:
The Concrete Cover Meter Rebar Detector is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars from the concrete surface, detect the thickness of the concrete and the diameter of the steel bars; ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.
PRODUCT FEATURES:
1. |
Upgraded wireless cloud transmission function. |
2. |
Adopt three anti-shell design, waterproof, dust-proof and shock-proof. |
3. |
Built-in large capacity memory card, storage capacity upgrade. |
4. |
USB transmission simulates the host computer as a U disk and reads data as easily as a U disk. |
5. |
Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth. |
6. |
Manual calibration. |
7. |
Professional data analysis software, so that your post-processing data and report generation work can be easily completed. |
Technical Parameters
Model |
GTJ-RBL |
GTJ-RBL+ |
Setting Scope of rebar dia. |
φ6mm~φ50mm |
φ6mm~φ50mm |
Setting scope of concrete cover |
6~200mm |
6~200mm |
First range |
6mm~90mm |
6mm~90mm |
Second range |
6mm~200mm |
6mm~200mm |
Max. allowable errors of the Protective Layer Thickness
|
1-80mm (±1mm) |
1-80mm (±1mm) |
81~119mm (±2mm) |
81~119mm (±2mm) |
|
121~200mm (±4mm) |
121~200mm (±4mm) |
|
Estimation Scope of rebar dia. |
φ6mm~φ32mm |
φ6mm~φ32mm |
Section grid |
Not support |
Graphics+Digital display |
Max. errors of Diameter indication |
±1 specification |
±1 specification |
Storage capacity |
2000 Components *1000 Measuring points |
2000 Components *1000 Measuring points |
Data transmission mode |
USB; Wireless cloud transmission (potional) |
USB; Wireless cloud transmission (potional) |
Power suppy |
Lithium battery over 12 hours |
Lithium battery over 12 hours |
Host parameters |
Waterproof parameters:IP65 Screen size:5 inches
Resolving:320*240 Volume:195*140*45mm Weight:0.8kg |
Waterproof parameters:IP65 Screen size:5 inches
Resolving:320*240 Volume:195*140*45mm
Weight:0.8kg
|
Working environment |
Temperature: -10℃ ~ +40℃ Humidity： 90%RH
|
Temperature: -10℃ ~ +40℃ Humidity： 90%RH
|
Detailed Images
Functions:
1. measure the diameter of the rebars on the concrete surface;
2. measures the thickness of concrete cover over steel reinforcement bars and metal pipes;
3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.
Company Introduction
Cangzhou Lovely Technology Co., Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Packing & Delivery
After Sales Service
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
