Fast Delivery Reinforcement|Rebar Locator and Concrete Covermeter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

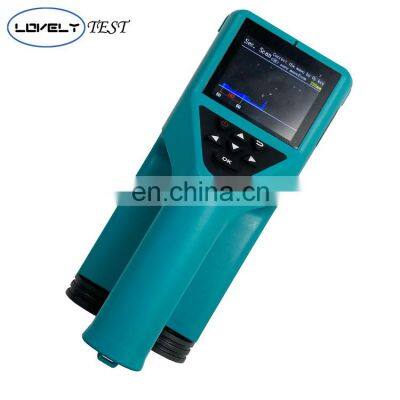

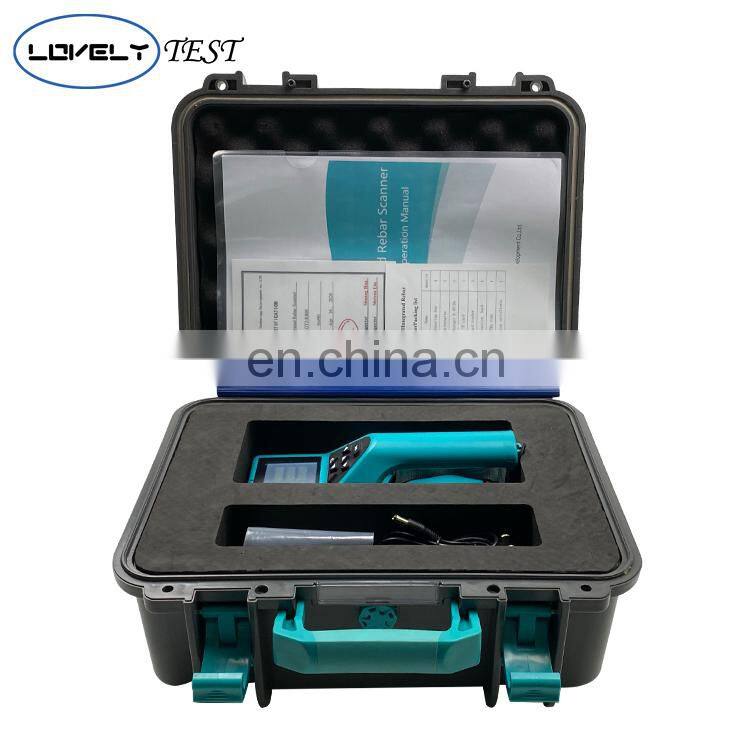

R800 Integrated Concrete covermeter rebar locator

The integrated Concrete covermeter is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, the depth of the concrete, the location and orientation of reinforcement bar (rebar) or metal pipe and can even determine the diameter of the rebar.

The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.

1.	Infrared ray confirming orientation.
2.	Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.
3.	Thickness detection mode can automatically store thickness and spacing.

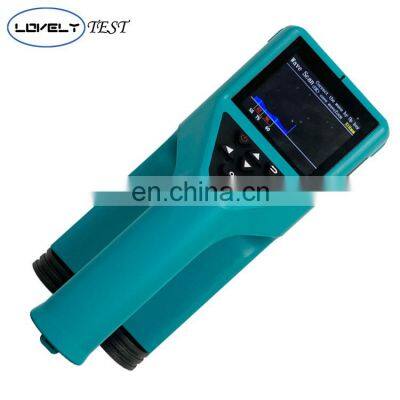

4.	The waveform scan mode also shows the thickness and spacing of the rebar protective layer.
5.	2.8 inch high resolution color liquid crystal screen.
6.	Large TF card storage capacity, intuitive and convenient transmission.
7.	PC professional data analysis software, data processing and report generation can be easily completed.

Technical Parameters

Model	GTJ-R800
Rebar dia. setting range	6mm~50mm
Small range	1mm~90mm
Large range	1mm~210mm
Max. allowable errors of the Concrete Cover Thickness	1-80mm (±1mm)
		81~120mm (±2mm)
		121~210mm (±4mm)
Scope of dia. estimation	φ6mm~φ32mm
Profile measurement function	Support
Mesh measurement function	Support
Waveform measurement function	Support
probe self-calibration	Support
Max. errors of Diameter indication	±1 specification
Host parameters	Screen size: 2.8 inch Resolution: 240*320
Host parameters		Volume: 22093110mm Weight:0.6KG
Data transmission mode	TF card; wireless cloud transmission (potional)
Power suppy	Lithium battery
Storage capacity	2000 Components *1000 Measuring points
Working environment	Temperature: -10℃ ~ +40℃ Humidity： ≤90%RH

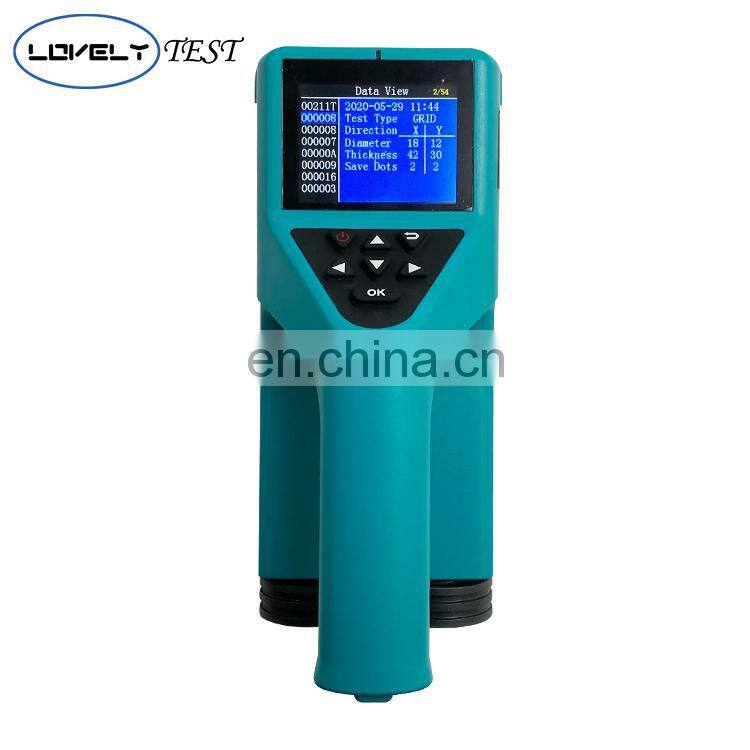

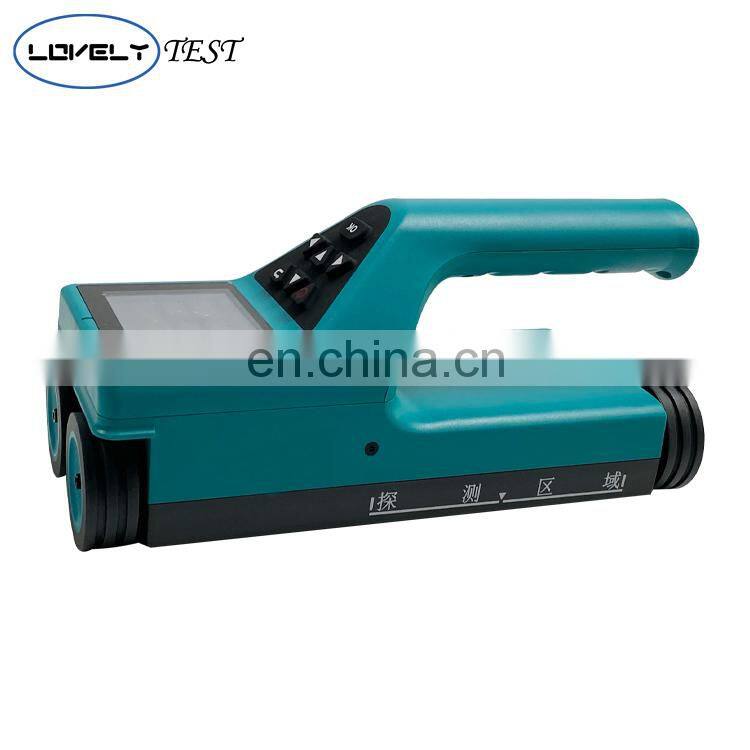

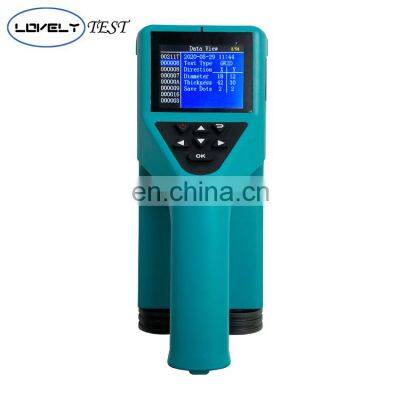

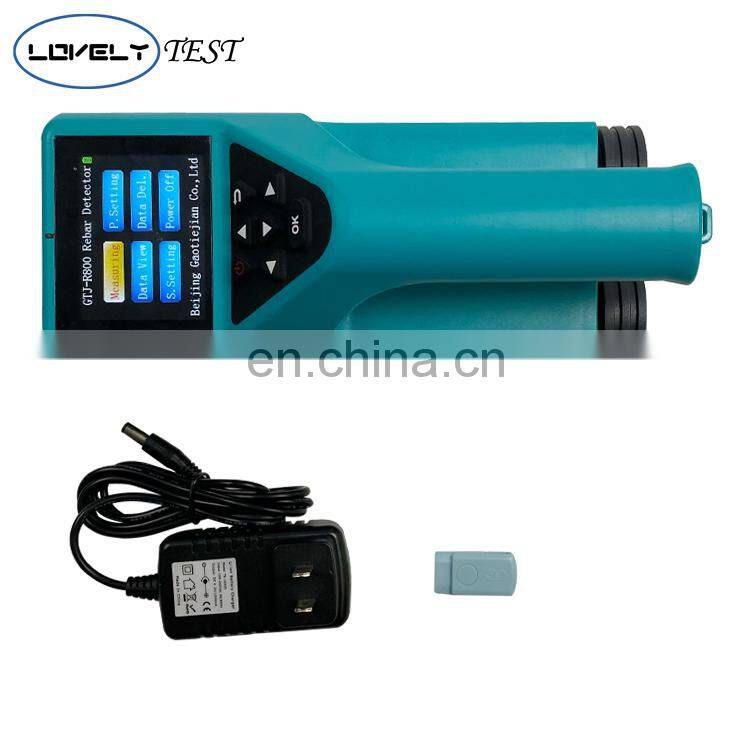

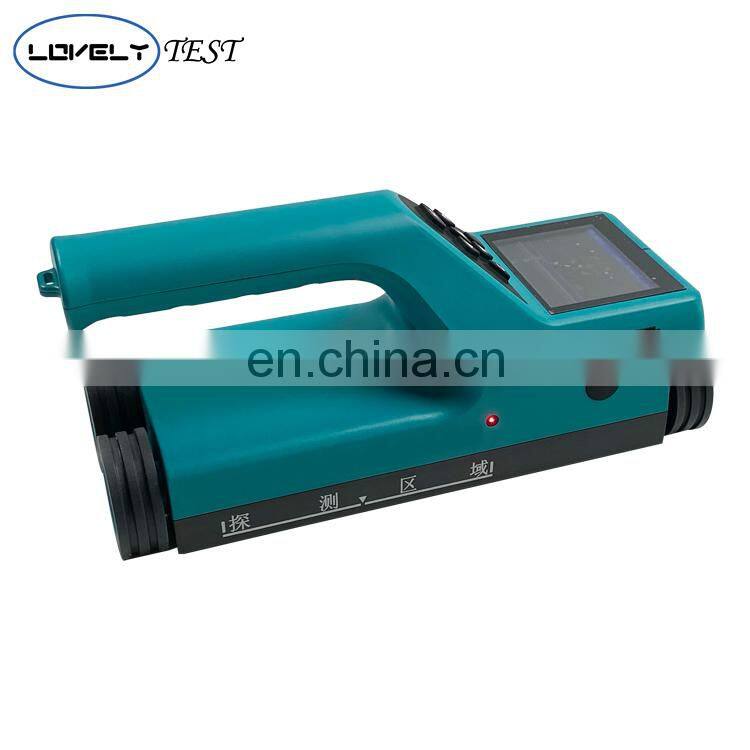

Detailed Images

Functions

asure the diameter of the rebars on the concrete surface;

asures the thickness of concrete cover over steel reinforcement bars and metal pipes;

asures the location and orientation of reinforcement bar (rebar) or metal pipe.

Infrared ray confirming orientation

Portable Integrated Design

Small in Size

Color Screen

High Resolution

Various Measurement

Profile, Mesh and Waveform

Probe Self-calibration

Company Introduction

Cangzhou Lovely Technology Co., Ltd.

It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.

Welcome to contact us and get our on-line support

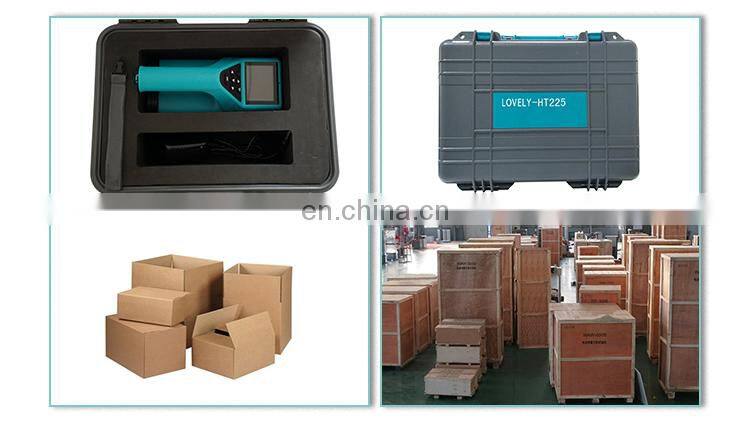

Packing & Delivery

After Sales Service

FAQ

Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing various Engineering quality testing instruments and Material testing machines. We could also purchase other related products as request.

Q2: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q3: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.

Q4: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
