K30 Plate Load Tester Bearing Capacity Of Foundation

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

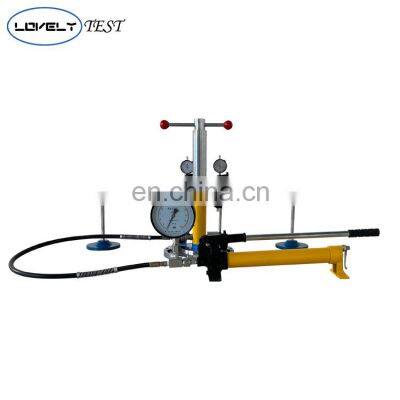

Plate load tester

APPLICATION:

Plate load tester is suitable for thick. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil.

BASIC STRUCTURE:
1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate.

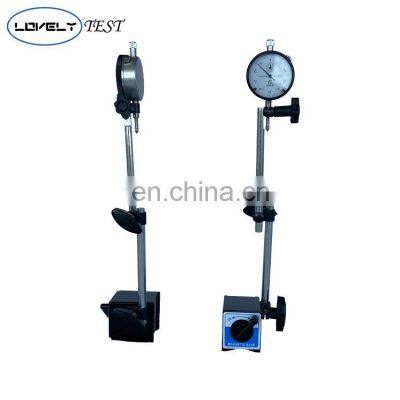

2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.

Parameters

Straight through load plate	300mm
Jack stroke	120mm
Span of side bridge	3000mm
Pressure test range	25MPa (level 0.4)
Displacement test range	0-10mm
Applicable temperature	5°-45°C
