Static Plate Load Tester/Plate Load Test Apparatus
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XSY Steel Bar Rebar Corrosion DetectorNegotiableMOQ: 1 -
K30 Plate Bearing Load Testing Apparatus Soil Test Machine PriceNegotiableMOQ: 1
-
GTJ-FKY Crack Detector Crack Width TesterNegotiableMOQ: 1
-
Digital Concrete Crack Tester PriceNegotiableMOQ: 1
-
Concrete Crack Detection Gauge /crack MeasuringNegotiableMOQ: 1
Plate Load Test Apparatus
Product Description
Plate load tester is suitable for thick. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil.
Basic Structure

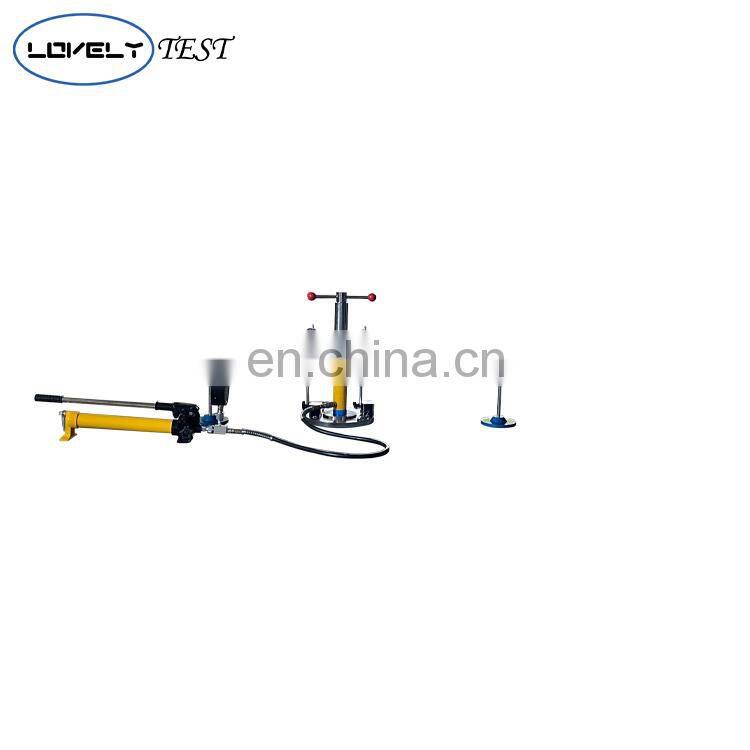

1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate.

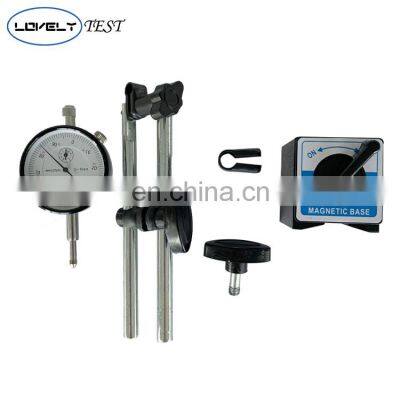

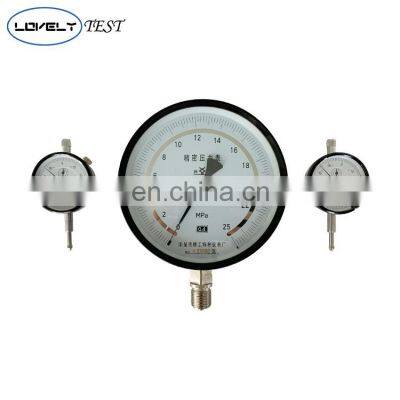

2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.
1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate.
2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.
Parameters
Straight through load plate | 300mm | |
Jack stroke | 120mm | |
Span of side bridge | 3000mm | |

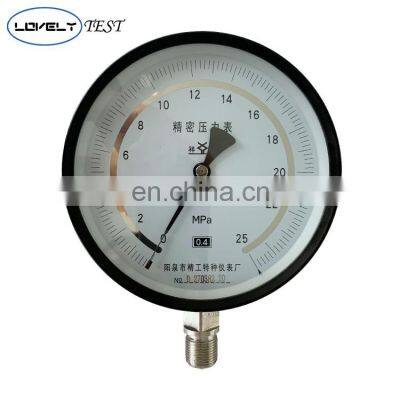

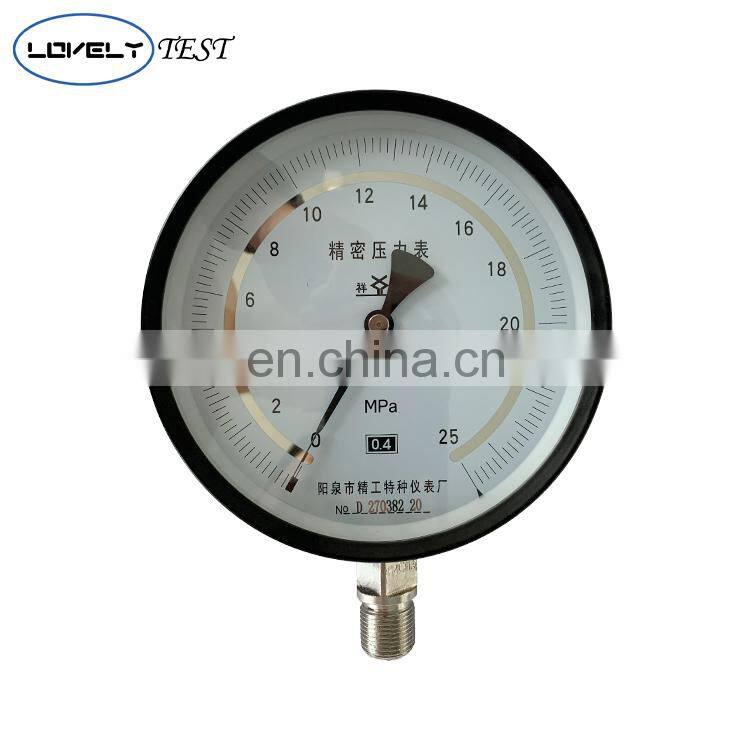

Pressure test range | 25MPa (level 0.4) | |
Displacement test range | 0-10mm | |
Use lubricating and wear-resistant hydraulic oil, the applicable ambient temperature is 5°-45°C | ||
Application
Contact US
Cangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
