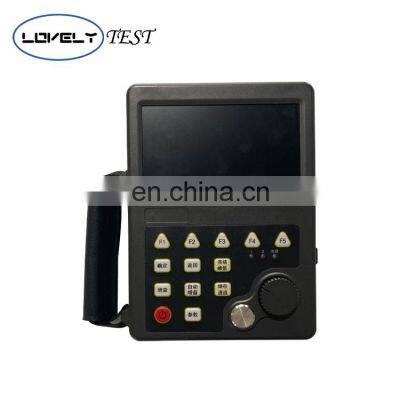

U600 Detector Ultrasonic Flaw Detector Mitech
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Automatic Soil Non-nuclear Electrical Density Gauge Testing EquipmentNegotiableMOQ: 1 -
2701 Non-nuclear Densometer Density Testing Asphalt GaugeNegotiableMOQ: 1
-
Portable Automatic 4114 Non-nuclear Soil Density GaugeNegotiableMOQ: 1
-
Portable Non-nuclear Densometer Density Testing Asphalt GaugeNegotiableMOQ: 1
-
Nondestructive Testing Portable Foundation Dynamic InstrumentNegotiableMOQ: 1
Product Description
Lovely-U600 Ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all- Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for detect detection, quality, control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.
1.inspection standard: built-in common inspection standard of various industries, direct call, convenient and fast;
2.Weld joint diagram: weld shape parameters can be set, and the weld map and the position of the defect in the weld are visually displayed during flaw detection;
3.Automatic calibration: automatic calibration function of probe zero and probe angle (K value); automatic measurement function of sound velocity;
4.Crest memory: the highest wave of defects is retrieved in real time, and the maximum value of defects is recorded;
5.Ф Value calculation: automatic calculation and display of defect equivalent size after the highest wave of defect is detected and located by straight probe forging;
6.Defect positioning: real-time display of defect horizontal, depth (vertical) and sound path position; Defect quantification: defect equivalent dB value is displayed in real time;
7.Defect Qualitative: Through echo envelope waveform, it is easy to judge by manual experience.
8.DAC/AVG: curves are generated automatically, sampling points are not limited, and can be compensated and modified. The curve floats automatically with gain, expands automatically with sound path, and moves automatically with delay. Can display AVG curve of arbitrary aperture;
9.AWS D1.1: American Welding Society Standard, which provides a dynamic reflector "defect rating" for all types of AWS weld inspection applications. Manual calculation can be avoided to improve detection efficiency; (optional)
10.Crack height measurement: automatically measure and calculate the crack height by using the endpoint diffraction wave;
11.Widening inside the door: Enlarging the echo details to facilitate echo analysis; 12.Continuous recording: record waveforms in real time, store and play back;
13.Waveform freeze: Freeze the waveform displayed on the screen to facilitate defect analysis;
14.Echo coding: display 1~6 echo display areas in different colors, which is convenient for judging the defect position;
15.Gain: total gain of 110dB, set 0, 0.1dB, 2dB, 6dB step value, unique automatic gain adjustment and sweep gain function, making flaw detection fast and accurate;
16.Gate alarm: door position, door width, door height can be adjusted arbitrarily; B. The gate can choose to set the incoming wave alarm or the lost wave alarm; Beeping sound inside the gate and LED light (LED light alarm is very effective in noisy environment) alarm and close;
17.Real-time clock: real-time flaw detection date, time tracking record, and record storage;
18.Battery module: high capacity lithium battery module, online and offline charging, convenient for flaw detection personnel.
Product Model |
U610 |
U620 |
U630 |
||
Working principle |
Ultrasound(pulse~echo/echo-echo) |
Ultrasound(pulse~echo/echo-echo) |
Ultrasound(pulse~echo/echo-echo) |
||
Working frequency range |
0.5~20MHz |
0.5~20MHz |
0.5~20MHz |
||
Pulse Width |
Square wave width 30~1000ns adjustable,step0.1ns |
Square wave width 30~1000ns adjustable,step0.1ns |
Square wave width 30~1000ns adjustable,step0.1ns |
||
Detection range |
0 to 14000(steel longitudinal wave)mm |
0 to 14000(steel longitudinal wave)mm |
0 to 14000(steel longitudinal wave)mm |
||
Pules displacement |
-45 to 1000(steel longitudinal wave)mm |
-45 to 1000(steel longitudinal wave)mm |
-45 to 1000(steel longitudinal wave)mm |
||
Material sound velocity |
300~15000m/s |
300~15000m/s |
300~15000m/s |
||
Detection method |
Negative wave,forward wave,two-way wave,filtering,RFwave |
Negative wave,forward wave,two-way wave,filtering,RFwave |
Negative wave,forward wave,two-way wave,filtering,RFwave |
||
Gain adjustment |
0 to 110dB: 0.1/1/2/6 step adiustment |
0 to 110dB: 0.1/1/2/6 step adiustment |
0 to 110dB: 0.1/1/2/6 step adiustment |
||
Thickness measurement function |
No |
Normal mode 0.75-300mm penetrating coating 2-150mm |
Normal mode 0.75-300mm penetrating coating 2-150mm |
||
WIFI/HDMI/Digital Filter |
No |
No |
Phone connection/HD pojection/digital filtering |
||
Valve |
off/incoming wave/lost wave |
||||
DAC, AVG function |
DAC curve, AVG curve |
||||
Attenuator error |
Every 12dB±1dB |
||||
Vertical linear error |
≤3% |
||||
Horizontal linear error |
≤0.5% |
||||
Dynamic Range |
≥30dB |
||||
Flaw deterction margin |
≥65(2.5Z20N probe)dB |
||||
Far-field resolution |
≥26dB |
||||
Electrical noise level |
≤10(1~4MHz)% |
||||
Equivalent input noise |
＜80*10-9V/√Hz |
||||
Pules repetition frequency |
20~1000Hz, step 1Hz |
||||
Pulse volage |
25~400V adjustable, step 25V |
||||
Thin plate resolution |
≤3(5C10N prode)mm |
||||
AWS D1.1/D1.5 |
American Welding Association AWS D1.1/1.5 calculates steel structure and bridge weld grades |
||||
Operating Voltage |
12V(battery, DC) |
||||
Physical dimension |
180*130*40mm(height*width*depth) |
||||
Storage |
Expansion TF card, mass storage |
||||
