Home > Instruments & Meters > Test Instrument > Test Machine > P800 Foundation Pile Dynamic Measuring Instrument

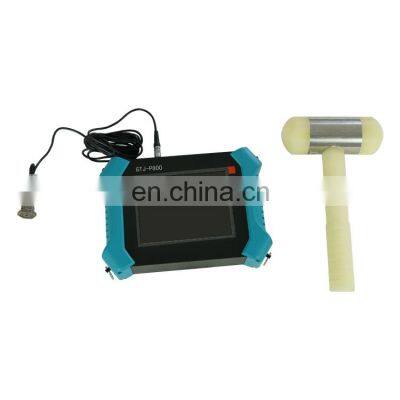

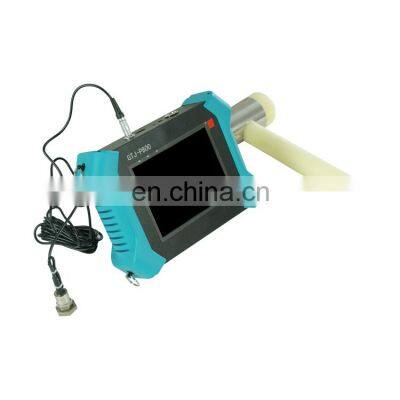

P800 Foundation Pile Dynamic Measuring Instrument
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Evd Hand-Held Drop Hammer Deflection Modulus Tester For SaleNegotiableMOQ: 1 -
Acoustic High-precision Concrete Crack Depth TesterNegotiableMOQ: 1
-
Multifunctional Digital Crack Width Tester For SaleNegotiableMOQ: 1
-
Full Digital Ultrasonic Flaw Detector Testing InstrumentNegotiableMOQ: 1
-
Non-Nuclear Electrical Asphalt Seedless Density Depth GaugeNegotiableMOQ: 1
Product Description
Pile integrity tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process. Under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed. The purpose is to determine the bearing capacity of pile and the integrity of pile structure.
Product Model |
P800 Pile Integrated Instrument |
System Noise Voltage |
Less than 2 mV |
Dynamic Range |
more than 138dB |
Amplifier Band |
10Hz~10kHz |
A/D Resolution |
16 bit A/D |
Sampling Length |
1024. 2048. 4096 |
Time Indication Error |
Less than 1% |
Channel Number |
One |
Amplification Factor |
1~128 |
Data Transmission Mode |
Wireless Cloud Transport(Options) |
Trigger Mode |
Signal triggering |
Sensor Senditivity |
100mV/g |
Sensor Frequency Band |
1~10000Hz |
Continuous Working Hours |
More than 10 hours |
Powder Supply |
Built-in rechargeable lithium battery (+7.4V) |
Display |
640*480 Capacitance Screen |
Operational Mode |
Touch |
Weight |
7Kg |
Size |
420x140x345mm |
FEATURES |
FEATURES |
|
1. |
New upgraded wireless cloud transmission function; |
|
2. |
The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method; |
|
3. |
Small size, light weight, easy to carry; |
|
4. |
The user operates through the touch screen, and the interface is simple; |
|
5. |
Support multiple waveform processing methods to make defect positioning more accurate; |
|
6. |
Large-capacity data memory, support for mobile storage; |
|
7. |
Built-in rechargeable lithium battery, long standby time; |
|
8. |
The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports. |
|
