Help CenterNDT Concrete Slab Thickness Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concrete Thickness Gauge Concrete Slab Thickness Tester for SaleNegotiableMOQ: 1 -
Integrated Steel Rebar Scanner Locator in ConcreteNegotiableMOQ: 1
-
P800 Foundation Pile Dynamic Measuring InstrumentNegotiableMOQ: 1
-
Evd Hand-Held Drop Hammer Deflection Modulus Tester For SaleNegotiableMOQ: 1
-
Acoustic High-precision Concrete Crack Depth TesterNegotiableMOQ: 1
Product Usage and Features
LBY Concrete Floor Thickness Gauge
LBY Concrete Foor Thickness Detector is a portable non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative test surfaces of the Concrete, respectively, transmitting and receiving electromagnetic fields. The instrument transmits and receives electromagnetic fields according to the received signals. Strength, test Concrete thickness.
1. | Adopt three anti-shell design, waterproof, dust-proof and shock-proof. |
2. | Upgraded wireless cloud transmission function. |
3. | Separate design of probe and main engine facilitates on-site measurement and use by operators. |
4. | Store the measurement results of floor thickness according to components. |
5. | Simple and easy to use, with perfect measurement, storage and analysis functions. |
6. | Large TF card storage capacity, intuitive and convenient transmission. |
7. | Stored data is transmitted to computer through USB interface. |
8. | Use Windows software to analyze data and generate test reports. |
Technical Parameters
Model | GTJ-LBY |
Thickness test range | 40mm~800mm |
Test accuracy | 40~500mm (±1mm) |
501~600mm (±2mm) | |
601~700mm (±4mm) | |
701~800mm (±8mm) | |
Storage capacity | 200 Components *30,000 Measuring points |
Host Parameters | Screen size: 5 inch LCD resolution: 160*128 Volume: 195*140*45mm Weight: 0.8KGs |
Power suppy | Both host and transmitter probes are built-in lithium battery |
Working environment requirements | Temperature: -10℃ ~ +40℃ Humidity： ＜90%RH Non-strong alternating electromagnetic field No long direct sunshine |
Packing Specification | Material: engineering plastic Volume:420*140*335mm Weight: 6.5Kgs |

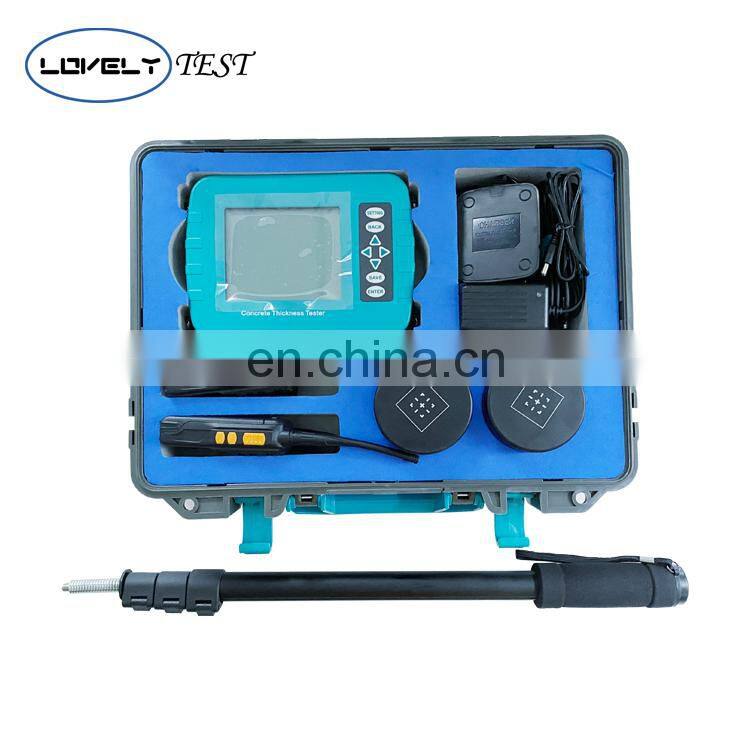

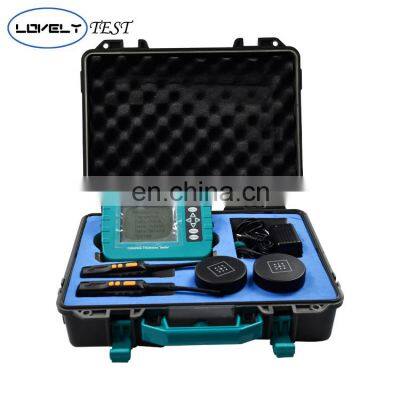

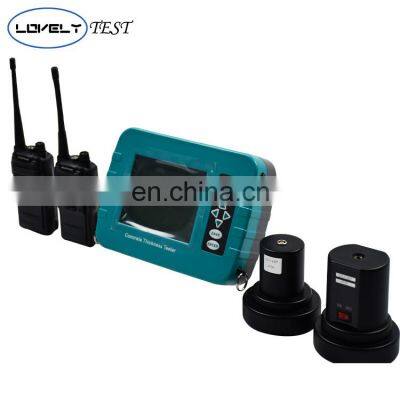

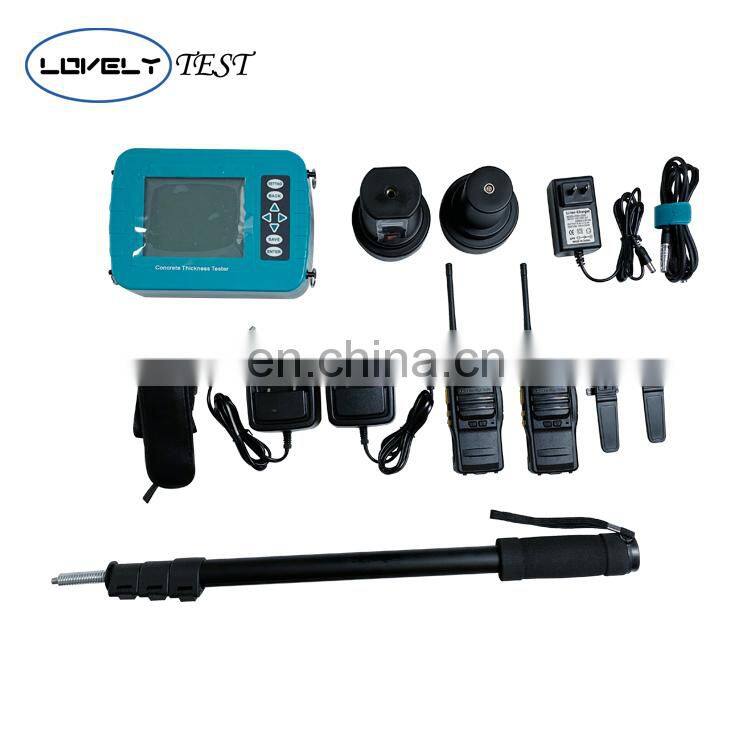

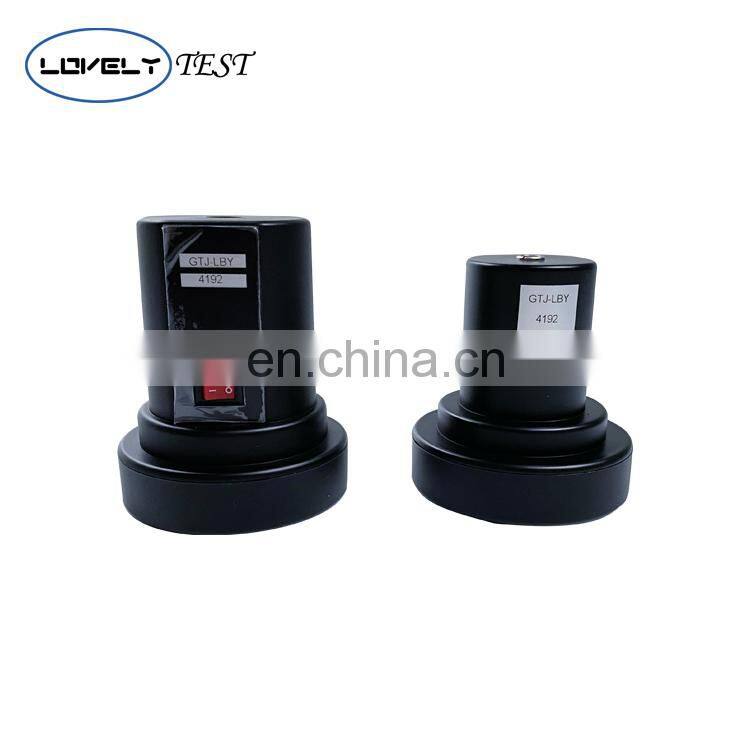

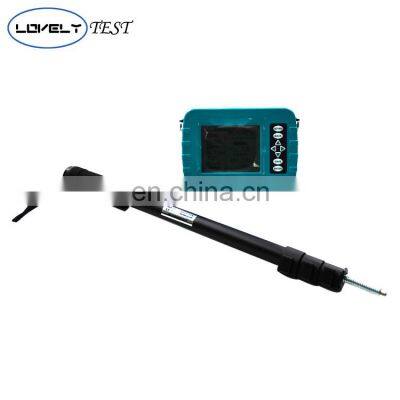

Detailed Images
Company Introduction
Cangzhou Lovely Technology Co.,Ltd.
It is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
Packing & Delivery
After Sales Service
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
